FJ75LP-KR (1984)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K02 |
BJ70,73,75,FJ7#,HJ75,LJ70..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29017 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50835 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 91131-50835 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-90K00 |
FJ7#..ARL,GEN,ME |
1 | ||
| 78411-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 90179-11007 |
FJ7#..ARL,GEN,ME |
1 | ||
| 78449 - GUIDE, THROTTLE CABLE | ||||
| 78449-90300 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 2(8411- )BJ70,73,75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-90K00 |
BJ70,73,75 |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-90A01 |
BJ70,73,75 |
1 | ||
| 78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78106-90A01 |
BJ70,73,75 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78180-90K17 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K10 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K08 |
FJ7#..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78180-90K17 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K10 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K08 |
FJ7#..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-90A00 |
BJ70,73,75 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-90A00 |
BJ70,73,75 |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ70,73,75,HJ75..LHD |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70 |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ70,73,75,HJ75..LHD |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70 |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70..LHD |
1 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-90K00 |
BJ70,73,75,HJ75..GEN |
1 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-90K00 |
BJ70,73,75,HJ75..GEN |
1 | ||
| 78510 - CABLE ASSY, STOP | ||||
| 78510-90K01 |
BJ70,75..LHD |
1 | ||
| 78510-90K05 |
BJ70,73,75..LHD |
1 | ||
| 78510 - CABLE ASSY, STOP | ||||
| 78510-90K01 |
BJ70,75..LHD |
1 | ||
| 78510-90K05 |
BJ70,73,75..LHD |
1 | ||
| 78510A - NUT, STOP CABLE | ||||
| 90179-14004 |
BJ70,73,75,HJ75..GEN |
1 | ||
| 78510A - NUT, STOP CABLE | ||||
| 90179-14004 |
BJ70,73,75,HJ75..GEN |
1 | ||
| Common parts | ||||
| 90202-14015 | ||||
| 90386-08005 | ||||
| 90461-10236 | ||||
| 90461-10281 | ||||
| 90464-00056 | ||||
| 90464-00154 | ||||
| 90464-00399 | ||||
| 90464-00401 | ||||
| 90468-16012 | ||||
| 90959-01195 | ||||
| 90959-01364 | ||||
| 90959-01415 | ||||
| 91611-60812 | ||||
| 91611-61014 | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 94141-40800 | ||||
| 95381-02518 | ||||

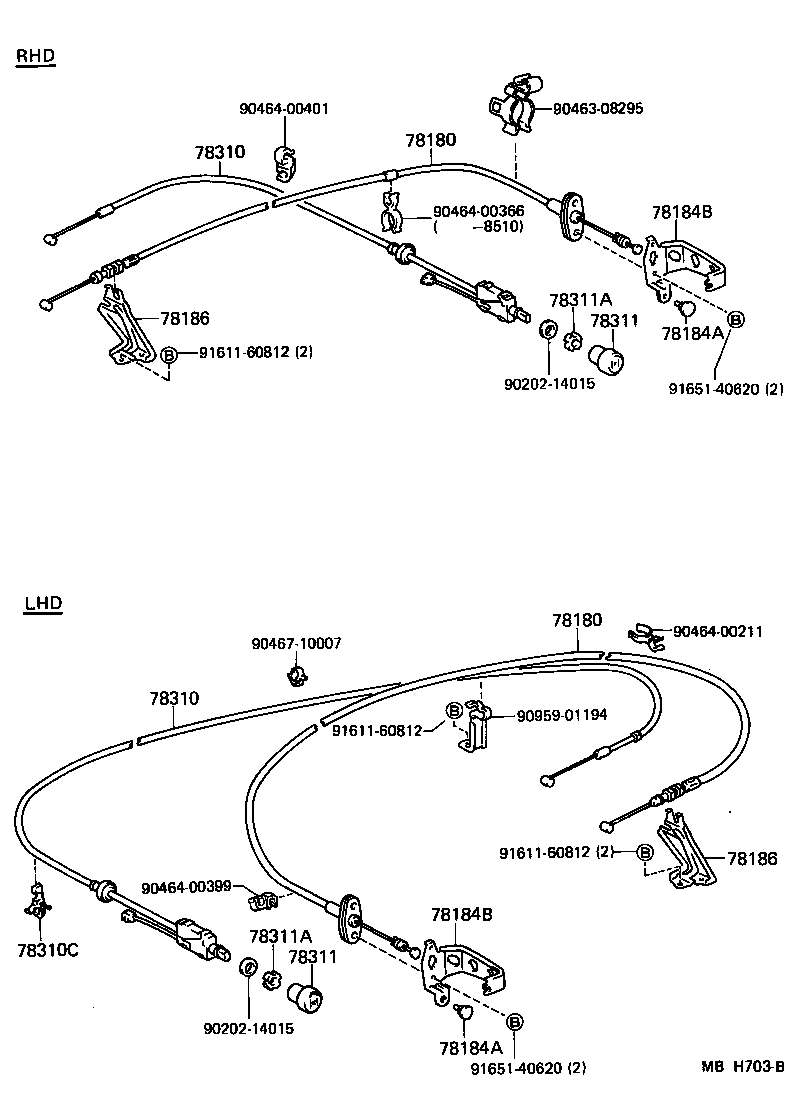

ILLUST NO. 1 OF 2(8411- )FJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K08 |
FJ7#..LHD |
1 | ||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78180-90K17 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K10 |
BJ70,73,75..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K08 |
FJ7#..LHD |
1 | ||
| 78180-90K15 |
FJ7#..LHD |
1 | ||
| 78180-90K17 |
BJ70,73,75..LHD |
1 | ||
| 78180-90K10 |
BJ70,73,75..LHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ70,73,75,HJ75..LHD |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70 |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ70,73,75,HJ75..LHD |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70 |
1 | ||
| 78184-90K00 |
FJ7#,LJ70,RJ70..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90A02 |
FJ7# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90A02 |
FJ7# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90K01 |
FJ7#..LHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90K01 |
FJ7#..LHD |
1 | ||
| 78310C - CLIP (FOR CHOKE CABLE) | ||||
| 90467-18004 |
FJ7#..LHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78303-90A03 |
FJ7# |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78303-90A03 |
FJ7# |
1 | ||
| 78311A - NUT, CHOKE SHAFT SET | ||||
| 90179-14004 |
FJ7# |
1 | ||
| 78311A - NUT, CHOKE SHAFT SET | ||||
| 90179-14004 |
FJ7# |
1 | ||
| Common parts | ||||
| 90202-14015 | ||||
| 90463-08295 | ||||
| 90464-00211 | ||||
| 90464-00366 | ||||
| 90464-00399 | ||||
| 90464-00401 | ||||
| 90467-10007 | ||||
| 90959-01194 | ||||
| 91611-60812 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 2(9001-0808)HZJ78 ; (9001-0808)FJ7#,FZJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZJ7#,RJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90202-11030 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| 96160-00600 | ||||
