FJ75LP-KR (1984)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(8411- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71083 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-90K0603 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71085-90K0605 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71084 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71085-90K0603 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71085-90K0605 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71086-90K0503 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71086-90K0505 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71085 - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-90K0603 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71088-90K0605 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71086 - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71088-90K0603 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71088-90K0605 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71089-90K0203 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71089-90K0205 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71222 - LEG, REAR SEAT | ||||
| 71033-90K0803 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0003 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F LH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0103 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,GRAY,SHADOW GRAY |
1 | ||
| 71033-90K3006 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F RH,BEIGE,SEPIA BROWN |
1 | ||
| 71033-90K3003 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K1406 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,BROWN,SEPIA BROWN |
1 | ||
| 71034-90K1506 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F LH,BROWN,SEPIA BROWN |
1 | ||
| 71034-90K1503 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F LH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K1403 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,GRAY,SHADOW GRAY |
1 | ||
| 71222 - LEG, REAR SEAT | ||||
| 71033-90K0803 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0003 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F LH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K0103 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,GRAY,SHADOW GRAY |
1 | ||
| 71033-90K3006 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F RH,BEIGE,SEPIA BROWN |
1 | ||
| 71033-90K3003 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F RH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K1406 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,BROWN,SEPIA BROWN |
1 | ||
| 71034-90K1506 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F LH,BROWN,SEPIA BROWN |
1 | ||
| 71034-90K1503 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F LH,GRAY,SHADOW GRAY |
1 | ||
| 71034-90K1403 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,LH,GRAY,SHADOW GRAY |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-90K00 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-90K00 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
2 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-90K0503 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71700-90K2703 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71700-90K2705 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-90K0003 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY,GRAY |
2 | ||
| 71704-90K0006 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN,SEPIA BROWN |
2 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71067-90K0203 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(BACK),SHADOW GRAY |
1 | ||
| 71065-90K0103 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71067-90K0206 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(BACK),SEPIA BROWN |
1 | ||
| 71065-90K0106 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71067-90K0203 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(BACK),SHADOW GRAY |
1 | ||
| 71065-90K0103 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71067-90K0206 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(BACK),SEPIA BROWN |
1 | ||
| 71065-90K0106 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71068-90K0306 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,BROWN(BACK),SEPIA BROWN |
1 | ||
| 71066-90K0106 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71068-90K0203 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71066-90K0303 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,GRAY(BACK),SHADOW GRAY |
1 | ||
| 71066-90K0103 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71068-90K0303 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,GRAY(BACK),SHADOW GRAY |
1 | ||
| 71066-90K0306 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,BROWN(BACK),SEPIA BROWN |
1 | ||
| 71068-90K0206 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71068-90K0306 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,BROWN(BACK),SEPIA BROWN |
1 | ||
| 71066-90K0106 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71068-90K0203 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71066-90K0303 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,GRAY(BACK),SHADOW GRAY |
1 | ||
| 71066-90K0103 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F GRAY(CUSHION),SHADOW GRAY |
1 | ||
| 71068-90K0303 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,GRAY(BACK),SHADOW GRAY |
1 | ||
| 71066-90K0306 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK,BROWN(BACK),SEPIA BROWN |
1 | ||
| 71068-90K0206 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN(CUSHION),SEPIA BROWN |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K03 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K03 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
1 | ||
| 71729-90K00 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK |
1 | ||
| 71761 - PAD, REAR SIDE SEAT BACK | ||||
| 71761-90K03 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
2 | ||
| 71761 - PAD, REAR SIDE SEAT BACK | ||||
| 71761-90K03 |
HJ75..LHD..PIC;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F;BJ75,FJ75..LHD..PIC..5F |
2 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-90K0503 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71800-90K0603 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71800-90K2705 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71800-90K2803 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71800-90K2703 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F PRINT LEATHER,GRAY,GRAY |
1 | ||
| 71800-90K2805 |
BJ75,FJ75,HJ75..LHD..PIC W/*FST,PRINT LEATHER,BEIGE,BEIGE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 79928 - PLATE, FOLD SEAT LEG | ||||
| 79928-90K00 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F |
1 | ||
| 79928-90K0003 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F GRAY,SHADOW GRAY |
1 | ||
| 79928-90K0006 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN,SEPIA BROWN |
1 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K01 |
HJ75..LHD..PIC;FJ75..LHD..PIC..5F;BJ75,FJ75..PIC..4F;HJ75..RHD..PIC..4F |
1 | ||
| 79929-90K05 |
BJ75,FJ75,HJ75..LHD..PIC W/FULL SUB TANK |
1 | ||
| 79929-90K0103 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F GRAY,SHADOW GRAY |
1 | ||
| 79929-90K0506 |
BJ75,FJ75,HJ75..LHD..PIC BROWN,W/FULL SUB TANK,SEPIA BROWN |
1 | ||
| 79929-90K0106 |
FJ75..PIC..4F;BJ75..PIC..CBU;HJ75..PIC..GEN;FJ75..LHD..PIC..5F BROWN,SEPIA BROWN |
1 | ||
| 79929-90K0503 |
BJ75,FJ75,HJ75..LHD..PIC GRAY,W/FULL SUB TANK,SHADOW GRAY |
1 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08501 | ||||
| 90179-08143 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90387-08052 | ||||
| 90540-09060 | ||||
| 93311-16010 | ||||
| 94551-11200 | ||||
| 94614-10800 | ||||
| 96160-00600 | ||||

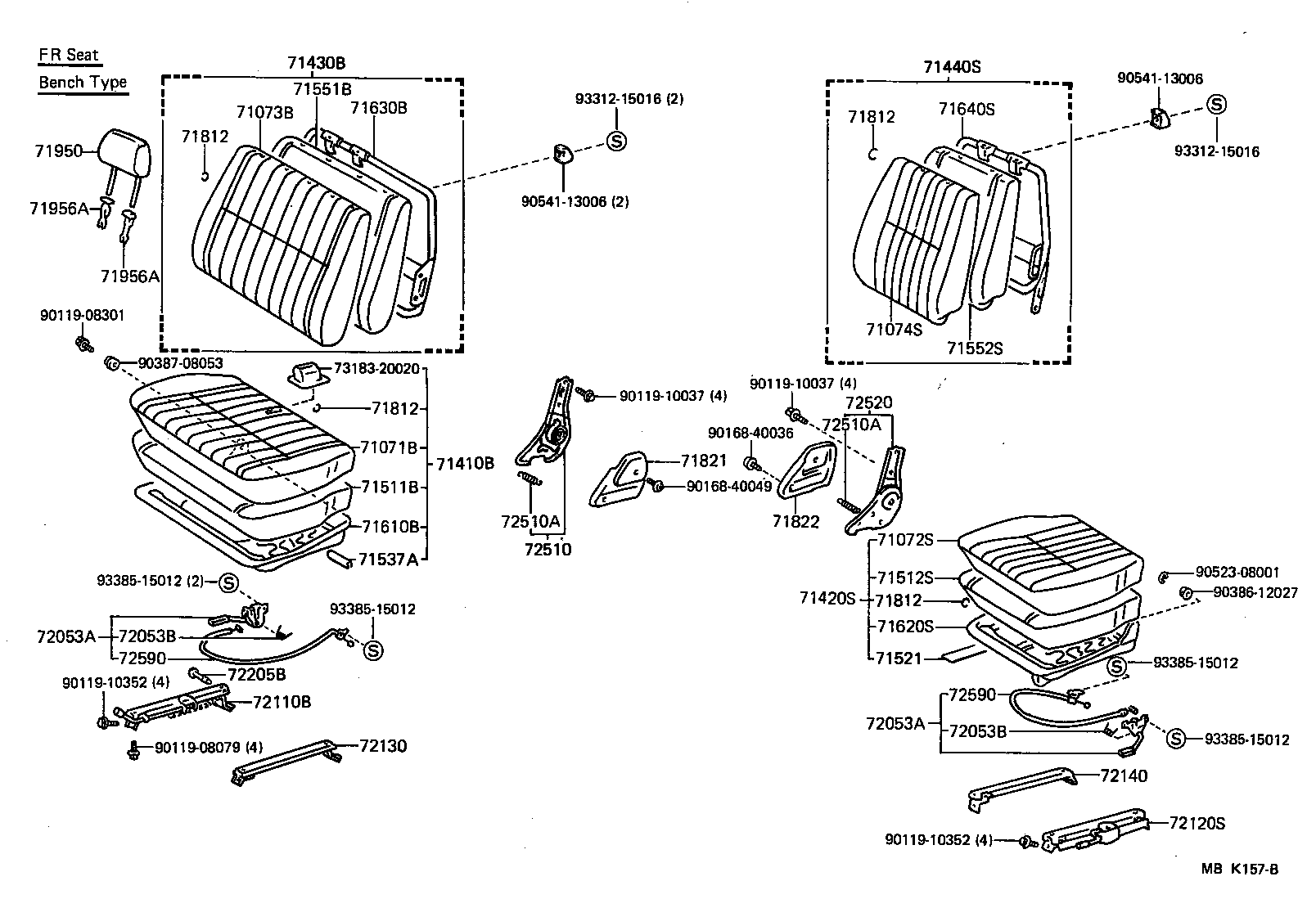

ILLUST NO. 1 OF 2(8411- )LHD..PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-90K0103 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..GEN VL,W/O *SBE,GRAY,GRAY |
1 | ||
| 71071-90K0503 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,W/*SBE,GRAY,GRAY |
1 | ||
| 71071-90K0505 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,W/*SBE,BEIGE,BEIGE |
1 | ||
| 71071-90K0105 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..GEN VL,W/O *SBE,BEIGE,BEIGE |
1 | ||
| 71071-90K0103 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..STD..GEN VL,W/O *SBE,GRAY,GRAY |
1 | ||
| 71071-90K0105 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..STD..GEN VL,W/O *SBE,BEIGE,BEIGE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-90K0503 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71072-90K0503 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..STD..GEN VL,GRAY,GRAY |
1 | ||
| 71072-90K0505 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71072-90K0505 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..STD..GEN VL,GRAY,BEIGE |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-90K0603 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71073-90K0605 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-90K1205 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71074-90K1203 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-90K2703 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,W/*SBE,GRAY,GRAY |
1 | ||
| 71410-90K2705 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,W/*SBE,BEIGE,BEIGE |
1 | ||
| 71410-90K0505 |
BJ75,FJ75,HJ75..LHD..GEN VL,W/O *WI,SBE,BEIGE,BEIGE |
1 | ||
| 71410-90K0503 |
BJ75,FJ75,HJ75..LHD..GEN VL,W/O *WI,SBE,GRAY,GRAY |
1 | ||
| 71410-90K2405 |
BJ75,FJ75,HJ75..LHD..GEN VL,W/O *WI,W/*SBE,BEIGE,BEIGE |
1 | ||
| 71410-90K2403 |
BJ75,FJ75,HJ75..LHD..GEN VL,W/O *WI,W/*SBE,GRAY,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-90K0103 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71420-90K0105 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71420-90K0103 |
BJ75,FJ75,HJ75..LHD..GEN VL,GRAY,GRAY |
1 | ||
| 71420-90K0105 |
BJ75,FJ75,HJ75..LHD..GEN VL,BEIGE,BEIGE |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-90K1603 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71430-90K1605 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-90K0705 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,BEIGE,BEIGE |
1 | ||
| 71440-90K0703 |
BJ75,FJ75,HJ75..LHD..PIC..GEN VL,GRAY,GRAY |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71501-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 71501-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..LHD..GEN |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-90K02 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(LX,STD) |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 71537-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..GEN |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71505-90K03 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 71505-90K03 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..LHD..GEN |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-90K02 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(LX,STD) |
1 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-90K04 |
BJ75,FJ75,HJ75..LHD W/O *WI |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90K01 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71013-90K07 |
BJ75,FJ75,HJ75..LHD..PIC |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-90K02 |
BJ75,FJ75,HJ75..LHD..PIC |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-90K0103 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..GEN W/O *WI,GRAY,SHADOW GRAY |
1 | ||
| 71811-90K0106 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..GEN W/O *WI,BROWN,SEPIA BROWN |
1 | ||
| 71811-90K0103 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..LHD..STD..GEN W/O *WI,GRAY,SHADOW GRAY |
1 | ||
| 71811-90K0106 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..LHD..STD..GEN W/O *WI,BROWN,SEPIA BROWN |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-90K0003 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD GRAY,SHADOW GRAY |
1 | ||
| 71812-90K0006 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD BROWN,SEPIA BROWN |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90K0206 |
BJ75,FJ75,HJ75..PIC BROWN,SEPIA BROWN |
2 | ||
| 71910-90K0203 |
BJ75,FJ75,HJ75..PIC GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72053-90K0103 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0106 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0003 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0103 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0106 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0006 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH,BROWN,SEPIA BROWN |
1 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72053-90K0103 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0106 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0003 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0103 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0106 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0006 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH,BROWN,SEPIA BROWN |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 RH |
1 | ||
| 90508-16080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 LH |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 RH |
1 | ||
| 90508-16080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 LH |
1 | ||
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-90K13 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 72110-90K21 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90K17 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 72120-90K06 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90K07 |
BJ75,FJ75,HJ75..LHD W/BENCH SEAT |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90K06 |
BJ75,FJ75,HJ75..LHD |
1 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-90K00 |
BJ75,FJ75,HJ75 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90K02 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..GEN W/BENCH SEAT |
1 | ||
| 72510-90K02 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..STD..GEN W/BENCH SEAT |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90K02 |
BJ75,FJ75,HJ75..LHD..PIC GRAY |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72570-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT |
1 | ||
| 72580-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH |
1 | ||
| 72570-90K01 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72570-90K01 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD RH,W/BENCH SEAT |
1 | ||
| 72580-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD LH |
1 | ||
| 72570-90K01 |
BJ70,75,FJ70,HJ75,LJ70,RJ70..LHD..GEN RH,W/BENCH SEAT |
1 | ||
| Common parts | ||||
| 73183-20020 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90119-10352 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90386-12027 | ||||
| 90387-08053 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 93312-15016 | ||||
| 93385-15012 | ||||
ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10619 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90159-40206 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
ILLUST NO. 1 OF 3(9001-0701)LHD..PIC ; (0701-0808)FZJ79
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90468-16019 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 90562-18094 | ||||
| 93219-55016 | ||||
| 93312-15016 | ||||
| 93383-15012 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08653 | ||||
| 90179-08143 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90387-08052 | ||||
| 90540-09060 | ||||
| 93311-16010 | ||||
| 94531-01200 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
