FJ75LP-KR (1984)
Toyota Land Cruiser

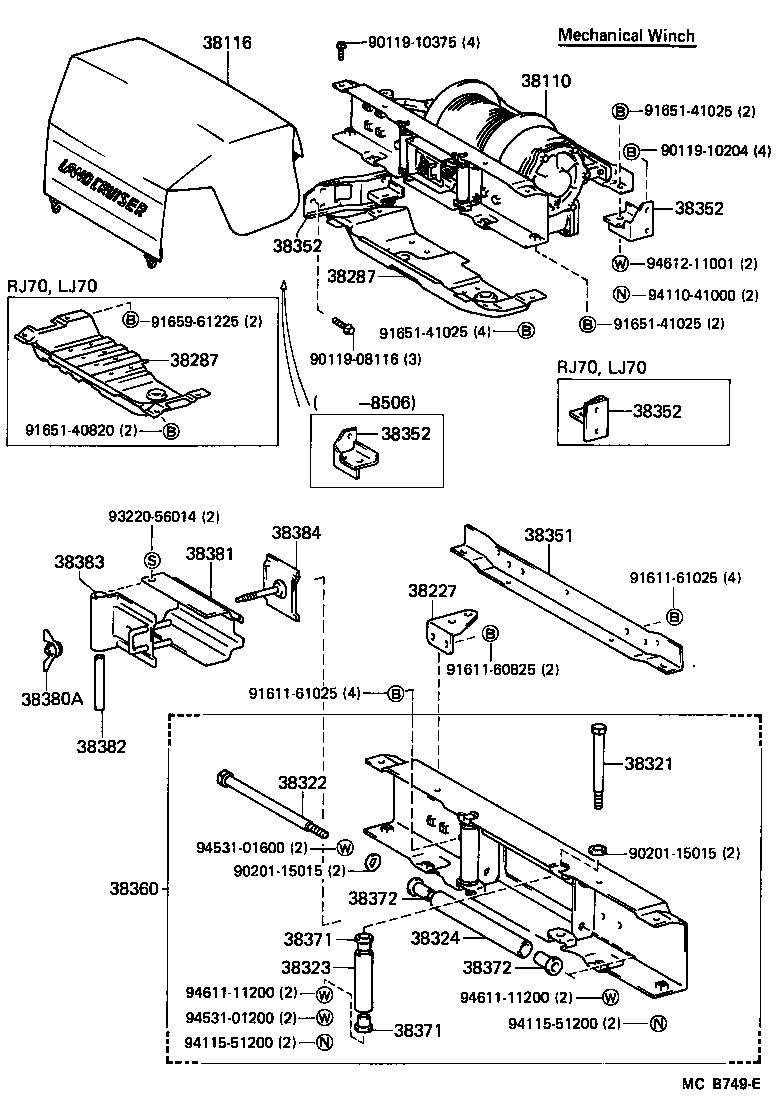

ILLUST NO. 1 OF 2(8411- )BJ70,73,75,FJ7#,LJ70,RJ70..MTM..CBR,DSL..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60090 |
BJ70,73,75,FJ7#..MTM..(GEN,ME) MECHANICAL |
1 | ||
| 38110-60100 |
BJ70,73,75,FJ7#,HJ75..GEN,ME ELECTRIC |
1 | ||
| 38116 - COVER, WINCH | ||||
| 38286-60040 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38286-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38227 - PLATE, WINCH CLUTCH LEVER SHIFT LOCK | ||||
| 38227-60040 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38287 - COVER, WINCH UNDER | ||||
| 38287-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38287 - COVER, WINCH UNDER | ||||
| 38287-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38322 - SHAFT, WINCH ROLLER, NO.2 | ||||
| 38322-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38323 - ROLLER, WINCH WIRE GUIDE, NO.1 | ||||
| 38323-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECANICAL |
1 | ||
| 38360-60020 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38371 - BUSH, WINCH ROLLER, NO.1 | ||||
| 38371-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38371 - BUSH, WINCH ROLLER, NO.1 | ||||
| 38371-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38372 - BUSH, WINCH ROLLER, NO.2 | ||||
| 38372-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38372 - BUSH, WINCH ROLLER, NO.2 | ||||
| 38372-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38380A - NUT, WING (FOR WINCH HOOK HOLDER) | ||||
| 90175-08015 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38381 - BRACKET, WINCH HOOK HOLDER | ||||
| 38381-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38382 - SHAFT, WINCH HOOK HOLDER | ||||
| 38382-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38383 - SUPPORT, WINCH HOOK HOLDER BRACKET, NO.1 | ||||
| 38383-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38384 - SUPPORT, WINCH HOOK HOLDER BRACKET, NO.2 | ||||
| 38384-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
| 90119-10204 | ||||
| 90119-10375 | ||||
| 90201-15015 | ||||
| 91611-60825 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 91651-41025 | ||||
| 91659-61225 | ||||
| 93220-56014 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
| 94611-11200 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 2(8411- )BJ70,73,75,FJ7#,LJ70,RJ70..MTM..CBR,DSL..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60011 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38101-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE) | ||||
| 90311-38043 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 90311-38040 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) | ||||
| 90345-53020 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) | ||||
| 90380-38019 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38103-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38103A - BUSH (FOR WINCH DRUM) | ||||
| 90380-38005 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38105-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38105-60150 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38105A - PLUG (FOR WINCH SIDE GEAR CASE) | ||||
| 90345-53020 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38105D - BUSH (FOR WINCH GEAR CASE COVER) | ||||
| 90380-38019 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38113C - RETAINER, WORM BEARING, NO.1 | ||||
| 38113-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38121-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38123-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) T=0.5 |
4 | ||
| 38124 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38124-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
4 | ||
| 38131 - GEAR, WORM | ||||
| 38131-60090 |
BJ70,73,75,FJ7#..MTM..(GEN,ME) |
1 | ||
| 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) | ||||
| 90281-12001 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38133 - SHAFT, WORM GEAR | ||||
| 38133-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38135 - WORM, WINCH | ||||
| 38135-60090 |
BJ70,73,75,FJ7#..MTM..(GEN,ME) |
1 | ||
| 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) | ||||
| 90311-28004 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38135C - PIN, SAFETY LOCK | ||||
| 90255-04002 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38201A - PIN, WINCH CLUTCH LEVER | ||||
| 90241-04007 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38211 - CLUTCH, WINCH | ||||
| 38211-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
2 | ||
| 38222 - LEVER, WINCH CLUTCH, LOWER | ||||
| 38222-60011 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER) | ||||
| 90508-26393 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38225-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38225A - PIN, WINCH CLUTCH LEVER KNOB | ||||
| 90241-03008 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38226 - PIN, LEVER SHIFT LOCK | ||||
| 38226-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38226A - SPRING, LEVER SHIFT LOCK PIN | ||||
| 90501-12167 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60011 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38233 - PLATE, BRAKE | ||||
| 38233-66020 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38283 - RETAINER, WORM BEARING, NO.2 | ||||
| 38283-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38301 - BRACKET SUB-ASSY, WINCH END | ||||
| 38301-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38301A - BUSH (FOR WINCH END BRACKET) | ||||
| 90380-38005 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) |
1 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60050 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| Common parts | ||||
| 91611-60818 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 93229-15012 | ||||
| 95381-01215 | ||||

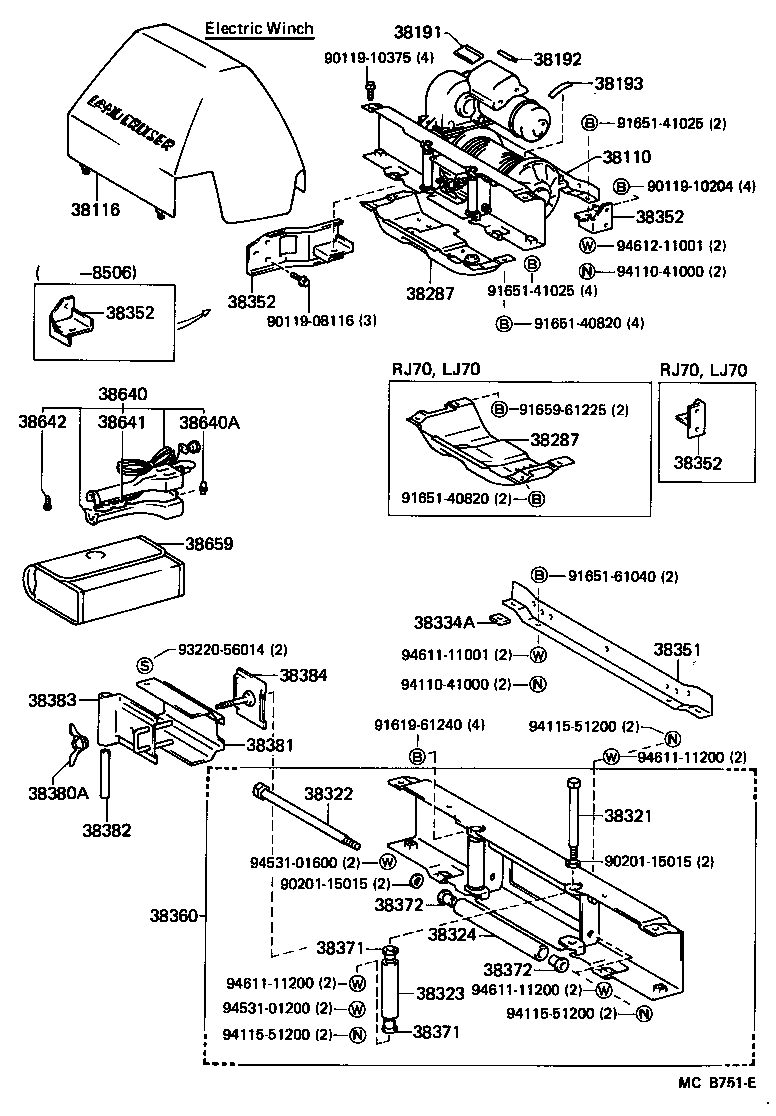

ILLUST NO. 1 OF 4(8411- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60090 |
BJ70,73,75,FJ7#..MTM..(GEN,ME) MECHANICAL |
1 | ||
| 38110-60100 |
BJ70,73,75,FJ7#,HJ75..GEN,ME ELECTRIC |
1 | ||
| 38116 - COVER, WINCH | ||||
| 38286-60040 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38286-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38193 - PLATE, WINCH CAUTION, NO.3 | ||||
| 38193-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38287 - COVER, WINCH UNDER | ||||
| 38287-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38287 - COVER, WINCH UNDER | ||||
| 38287-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38322 - SHAFT, WINCH ROLLER, NO.2 | ||||
| 38322-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38323 - ROLLER, WINCH WIRE GUIDE, NO.1 | ||||
| 38323-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38334A - SPACER, REAR MEMBER | ||||
| 38334-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38352-60020 |
BJ70,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38353-60010 |
BJ70,73,75,FJ7#,HJ75..GEN,ME LH |
1 | ||
| 38352-60030 |
BJ70,73,75,FJ7#,HJ75..GEN,ME RH |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECANICAL |
1 | ||
| 38360-60020 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38371 - BUSH, WINCH ROLLER, NO.1 | ||||
| 38371-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38371 - BUSH, WINCH ROLLER, NO.1 | ||||
| 38371-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38372 - BUSH, WINCH ROLLER, NO.2 | ||||
| 38372-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38372 - BUSH, WINCH ROLLER, NO.2 | ||||
| 38372-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38380A - NUT, WING (FOR WINCH HOOK HOLDER) | ||||
| 90175-08015 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38381 - BRACKET, WINCH HOOK HOLDER | ||||
| 38381-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38382 - SHAFT, WINCH HOOK HOLDER | ||||
| 38382-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38383 - SUPPORT, WINCH HOOK HOLDER BRACKET, NO.1 | ||||
| 38383-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38384 - SUPPORT, WINCH HOOK HOLDER BRACKET, NO.2 | ||||
| 38384-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38640-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38640A - BULB (FOR WINCH CONTROL SWITCH) | ||||
| 90981-11024 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME 12V 1.4W,12V 1,4W |
2 | ||
| 38641 - GASKET (FOR WINCH CONTROL SWITCH) | ||||
| 38641-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38642 - SCREW (FOR WINCH CONTROL SWITCH) | ||||
| 38642-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
8 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
| 90119-10204 | ||||
| 90119-10375 | ||||
| 90201-15015 | ||||
| 91619-61240 | ||||
| 91651-40820 | ||||
| 91651-41025 | ||||
| 91651-61040 | ||||
| 91659-61225 | ||||
| 93220-56014 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
| 94611-11001 | ||||
| 94611-11200 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 4(8411- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38105-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38105-60150 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 96411-11600 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=16 |
1 | ||
| 90331-20044 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=20 |
1 | ||
| 90331-16050 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=16 |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 96411-11600 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=16 |
1 | ||
| 90331-20044 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=20 |
1 | ||
| 90331-16050 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=16 |
1 | ||
| 38105C - RING, O (FOR WINCH GEAR CASE COVER) | ||||
| 90301-59044 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38110A - PLUG, FILLER | ||||
| 90341-18006 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38110B - GASKET (FOR FILLER PLUG) | ||||
| 90430-18008 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38121-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38127 - SPACER, INPUT SHAFT | ||||
| 38127-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38137A - RING, E (FOR WINCH INPUT SHAFT) | ||||
| 96160-01500 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38183 - PIN, BRAKE SHAFT LOCK | ||||
| 38183-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38184 - RING, BRAKE SHAFT, O | ||||
| 38184-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38185 - RING, CLUTCH OUTER RACE SNAP | ||||
| 38185-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38202 - RACE SUB-ASSY, CLUTCH, OUTER | ||||
| 38202-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38205 - GEAR SUB-ASSY, BRAKE SHAFT DRIVEN | ||||
| 38205-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38218 - SPACER, CLUTCH DISC | ||||
| 38218-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38232 - SHAFT, WINCH BRAKE | ||||
| 38232-60041 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38234 - GEAR, BRAKE SHAFT DRIVE | ||||
| 38234-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38236 - BEARING, GEAR THRUST | ||||
| 38236-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
ILLUST NO. 3 OF 4(8411- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60011 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38101-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38102 - GEAR SUB-ASSY, COUNTERSHAFT | ||||
| 38102-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38103-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38106 - HOUSING SUB-ASSY, WINCH DRUM | ||||
| 38106-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38110C - PLUG, DRAIN | ||||
| 90341-18057 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38110D - GASKET (FOR DRAIN PLUG) | ||||
| 90430-18008 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38113A - RETAINER, SHIFT SHAFT | ||||
| 38113-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38118 - COVER, WINCH DRUM HOUSING | ||||
| 38118-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38122 - GASKET, SHIFT SHAFT RETAINER | ||||
| 38122-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38131B - GEAR, COUNTER, NO.1 | ||||
| 38131-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38133A - COUNTER SHAFT | ||||
| 38133-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38133B - RING, O (FOR COUNTER SHAFT) | ||||
| 96711-24014 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38134 - GEAR, WINCH OUTPUT | ||||
| 38134-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38153 - PLATE, WIRE LOCK | ||||
| 38153-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38182 - SPRING, SHIFT LOCK | ||||
| 38182-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38182A - BALL (FOR SHIFT LOCK SPRING) | ||||
| 90360-06004 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38187 - SEAL, GEAR CASE OIL | ||||
| 38187-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38211B - HUB, WINCH CLUTCH | ||||
| 38211-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38214 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38214-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38214A - RING, O (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 90301-11053 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 96160-01200 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
3 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-10015 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38223 - SHAFT, CLUTCH SHIFT LEVER | ||||
| 38223-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60010 |
BJ70,73,75,FJ7#,LJ70,RJ70..MTM..(CBR,DSL)..(GEN,ME) MECHANICAL |
1 | ||
| 38225-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME ELECTRIC |
1 | ||
| 38226B - PIN, CLUTCH SHIFT LEVER LOCK | ||||
| 38226-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38228 - SUPPORT, CLUTCH SHIFT LEVER | ||||
| 38228-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38229 - PIN, CLUTCH SHIFT LEVER | ||||
| 38229-60040 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60050 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| Common parts | ||||
| 90250-10232 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 94110-50800 | ||||
| 95381-02515 | ||||
ILLUST NO. 4 OF 4(8411- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38602A - FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER) | ||||
| 38602-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
4 | ||
| 38613C - BUSH (FOR WINCH MOTOR) | ||||
| 28111-46011 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38614 - COVER, COMMUTATOR WINCH | ||||
| 38614-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14023 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=112.4 |
1 | ||
| 90099-14014 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14023 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME OD=112.4 |
1 | ||
| 90099-14014 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38616A - DUCT, YOKE WINCH | ||||
| 38616-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38617A - DUCT, COVER WINCH | ||||
| 38617-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38622 - COVER, CONNECTOR WINCH | ||||
| 38622-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38628 - GROMET, WINCH | ||||
| 38628-60010 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60030 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| Common parts | ||||
| 90099-00125 | ||||
| 90099-01019 | ||||
| 90099-02182 | ||||
| 90099-04297 | ||||
| 90119-06049 | ||||
(9001-0701)FJ7#,HZJ70,75,PZJ7#..MTM..GCC,GEN
MECHANICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 38118-60040 | ||||
| 38143-60010 | ||||
| 38153-60040 | ||||
| 90119-08754 | ||||
| 90119-10495 | ||||
| 90119-12200 | ||||
| 90159-40179 | ||||
| 90179-08028 | ||||
| 90240-05004 | ||||
| 90311-28004 | ||||
| 90360-06004 | ||||
| 90468-12018 | ||||
| 91611-60820 | ||||
| 91651-61020 | ||||
| 91651-A0816 | ||||
| 91651-B0818 | ||||
| 93381-18014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
