FJ75LP-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )ARL,GEN,ME

Click highlighted areas on diagram

diagram 36409 36409 36409C 36409C 36481 36481B 36481C 36482 9046716141 9046716141 9161640816 9161640816 9161640816 9161640816
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60030

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

ELECTRIC CONTROL TRANSFER

 1
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60030

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

ELECTRIC CONTROL TRANSFER

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09300

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)

L=300

 1
95441-09260

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)

L=260

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09300

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)

L=300

 1
95441-09260

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)

L=260

 1
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-60070

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1
47371-60040

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2
47372-35010

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60070

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
Common parts
90467-16141
91616-40816

ILLUST NO. 2 OF 2(8411- )FJ7#..ARL,GEN,ME

Click highlighted areas on diagram

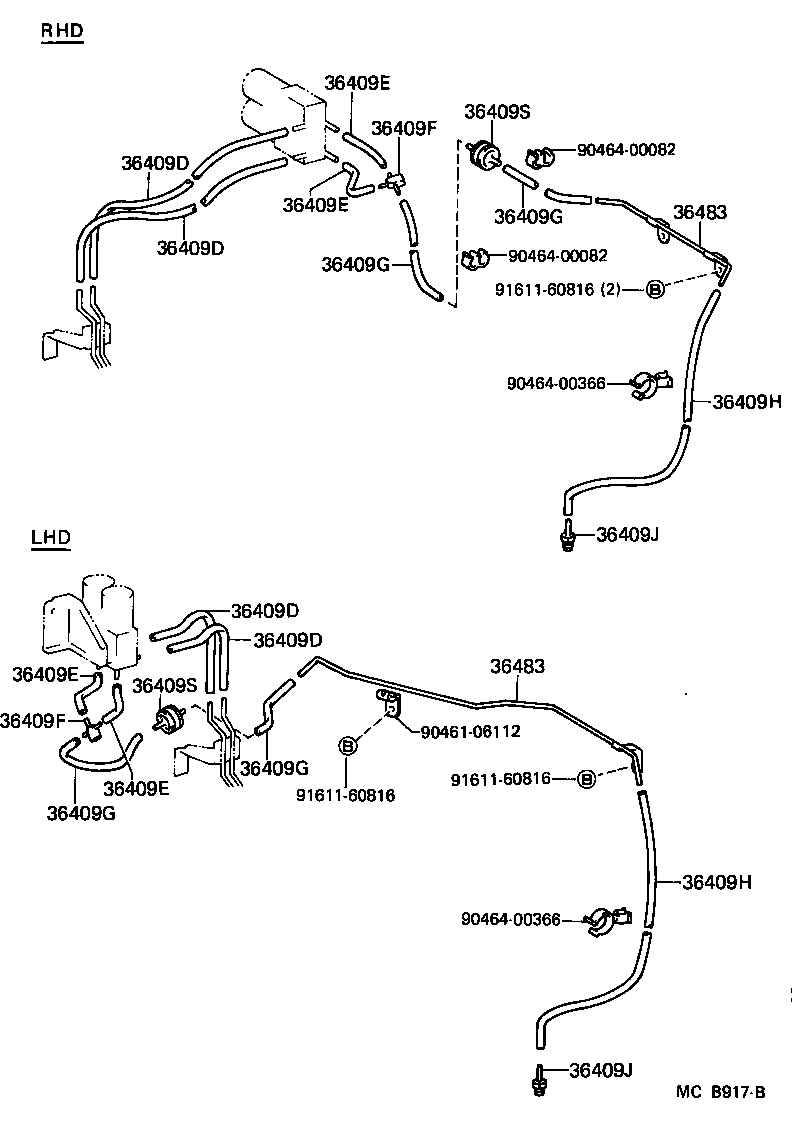

diagram 36409D 36409D 36409D 36409D 36409E 36409E 36409E 36409E 36409F 36409F 36409G 36409G 36409G 36409G 36409H 36409H 36409J 36409J 36409S 36409S 36483 36483 9046106112 9046400082 9046400082 9046400366 9046400366 9161160816 9161160816 9161160816
Part # Description Qty Price
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=220,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=220,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=220,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=300

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=220,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=300

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
90999-92002

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

*H,L=80,MARK=#*

 2
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ7#,RJ70..ARL,GEN,ME

*H,L=100,MARK=#*

 2
90999-92002

FJ7#,RJ70..ARL,GEN,ME

*H,L=200,MARK=#*

 2
95411-19930

FJ7#..LHD

*H,L=80,MARK=#*,*H,L=80

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ7#,RJ70..ARL,GEN,ME

*H,L=100,MARK=#*

 2
90999-92002

FJ7#,RJ70..ARL,GEN,ME

*H,L=200,MARK=#*

 2
95411-19930

FJ7#..LHD

*H,L=80,MARK=#*,*H,L=80

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ7#,RJ70..ARL,GEN,ME

*H,L=100,MARK=#*

 2
90999-92002

FJ7#,RJ70..ARL,GEN,ME

*H,L=200,MARK=#*

 2
95411-19930

FJ7#..LHD

*H,L=80,MARK=#*,*H,L=80

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ7#,RJ70..ARL,GEN,ME

*H,L=100,MARK=#*

 2
90999-92002

FJ7#,RJ70..ARL,GEN,ME

*H,L=200,MARK=#*

 2
95411-19930

FJ7#..LHD

*H,L=80,MARK=#*,*H,L=80

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90999-92003

FJ7#..ARL,GEN,ME

*H,L=330,MARK=#*

 1
95411-19960

FJ7#..ARL,GEN,ME

*H,L=330,MARK=#*

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90999-92003

FJ7#..ARL,GEN,ME

*H,L=330,MARK=#*

 1
95411-19960

FJ7#..ARL,GEN,ME

*H,L=330,MARK=#*

 1
36409J - UNION (FOR FRONT DRIVE SHIFT)
90404-51093

FJ7#,RJ70..ARL,GEN,ME

 1
36409J - UNION (FOR FRONT DRIVE SHIFT)
90404-51093

FJ7#,RJ70..ARL,GEN,ME

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10065

FJ7#,RJ70..ARL,GEN,ME

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10065

FJ7#,RJ70..ARL,GEN,ME

 1
36483 - TUBE, FRONT DRIVE VACUUM, NO.3
36483-60060

FJ7#..LHD

 1
36483 - TUBE, FRONT DRIVE VACUUM, NO.3
36483-60060

FJ7#..LHD

 1
Common parts
90461-06112
90464-00082
90464-00366
91611-60816

ILLUST NO. 2 OF 2(9001-9208)FJ7#..LHD

Click highlighted areas on diagram

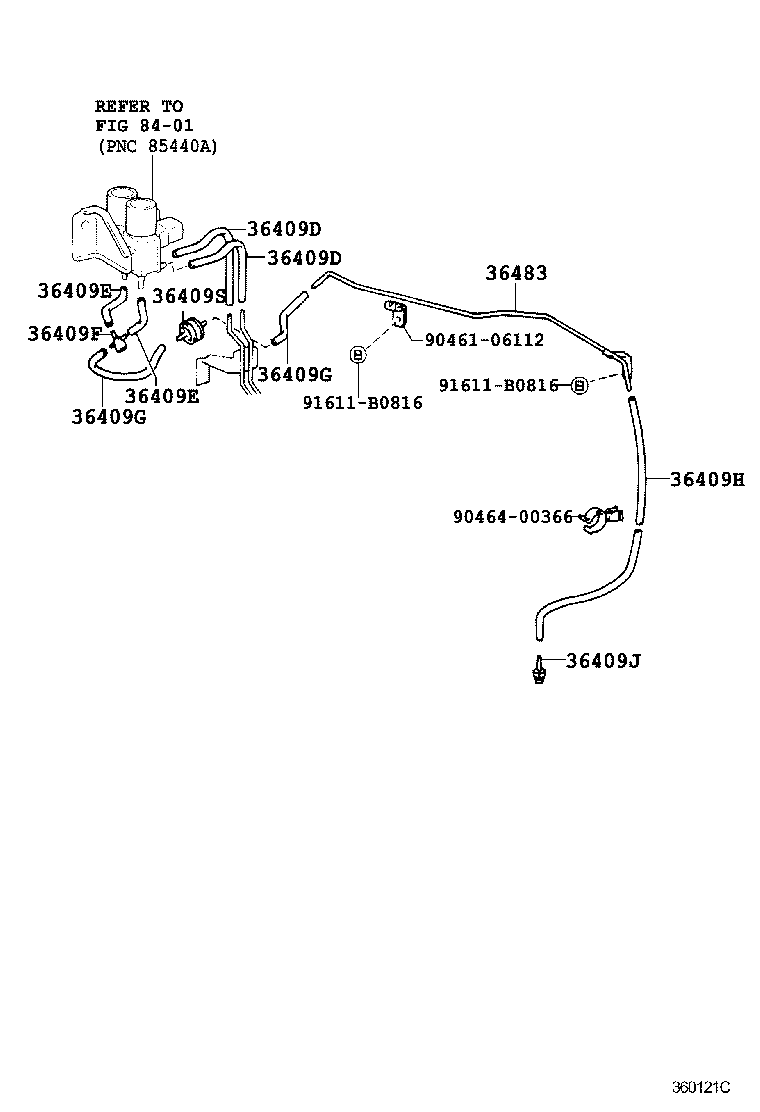

diagram 36409D 36409D 36409E 36409E 36409F 36409G 36409G 36409H 36409J 36409S 36483 8401 9046106112 9046400366 91611B0816 91611B0816
Part # Description Qty Price
Common parts
90461-06112
90464-00366
91611-B0816
Linked diagrams
8401

ILLUST NO. 2 OF 2(9001-0701)HZJ70,71,75,78,79,PZJ70,75..LHD

Click highlighted areas on diagram

diagram 36409D 36409D 36409E 36409E 36409F 36409G 8401 9046400082 9046400366 9046400373
Part # Description Qty Price
Common parts
90464-00082
90464-00366
90464-00373
Linked diagrams
8401

ILLUST NO. 1 OF 2(9001-0701)

Click highlighted areas on diagram

diagram 36409 36409 36409C 36409C 36481 36481B 36481C 36482 91611B0816 91611B0816 91611B0816 91611B0816 9613241500 9613241500
Part # Description Qty Price
Common parts
91611-B0816
96132-41500
