FJ75LP-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ70,73,75,FJ7#,HJ75..4F

Click highlighted areas on diagram

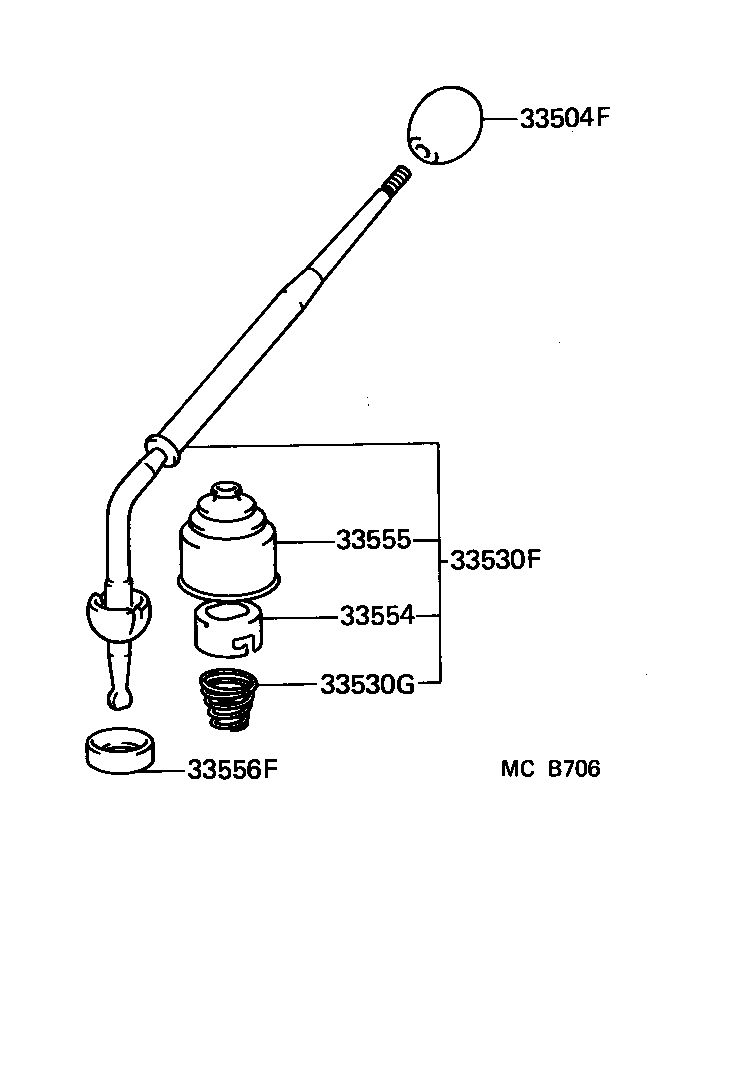

diagram 33504F 33530F 33530G 33554 33555 33556F
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60040

BJ70,73,75,FJ7#,HJ75..4F..STD

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60080

BJ70,75,FJ7#,HJ75..LHD..4F

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-29001

BJ7#,FJ7#,HJ75..MTM

 1
33554 - CAP, SHIFT LEVER
33554-60021

BJ7#,FJ7#,HJ75..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-55011

BJ7#,FJ7#,HJ75..MTM

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33505-60010

BJ7#,FJ7#,HJ75..MTM

 1
33505-60011

BJ7#,FJ7#,HJ75..MTM

 1

(9001-9208)FJ70,75,HZJ75..4F

Click highlighted areas on diagram

diagram 33504F 33530F 33530G 33554 33555 33556F
Part # Description Qty Price
