Toyota Land cruiser FJ75 DISTRIBUTOR

FJ75LP-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990

Engine 3F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

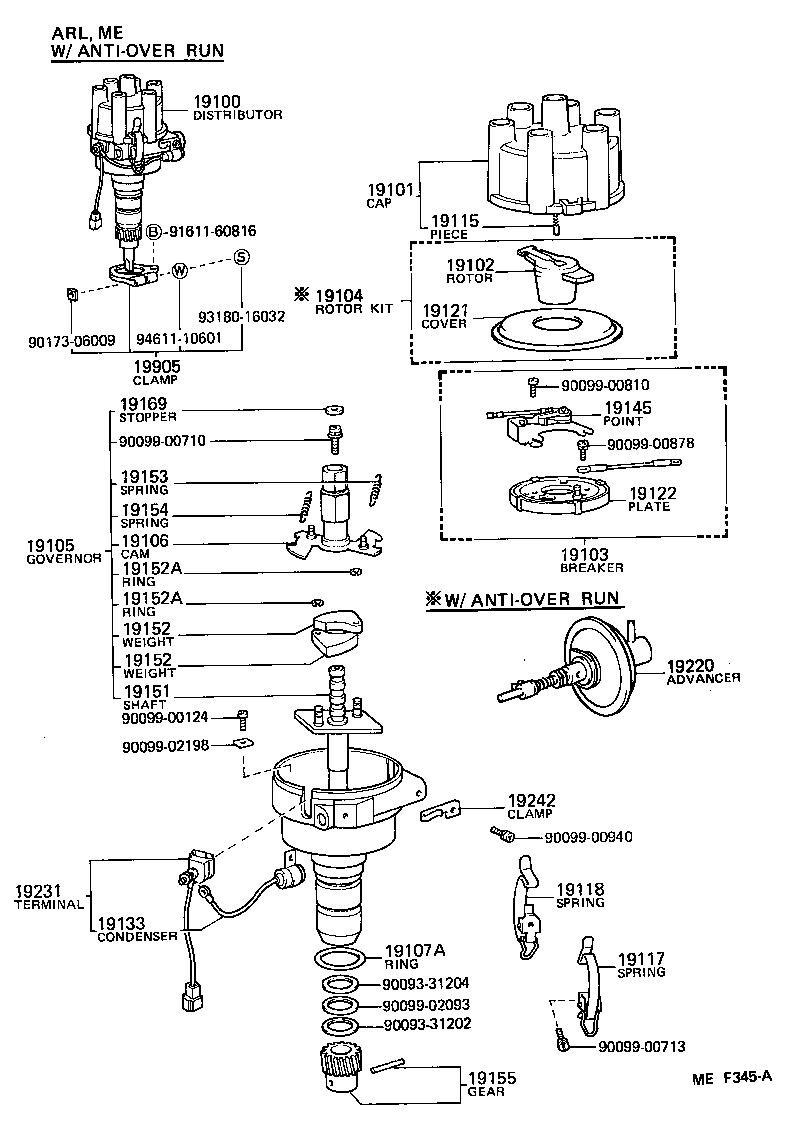

(8411- )3F

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-61180	3F..FJ7#..MTM..GEN W/ANTI-OVER RUN	05/1985 - 01/1990	1
19100-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19100-61180	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19101-45060	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-61180	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19102-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-41030	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19103-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19104 - ROTOR KIT
19104-61181	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	05/1985 - 01/1990	1
19104-61180	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19105 - GOVERNOR SUB-ASSY
19105-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19105-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19106-41110	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020	3F..FJ7#	11/1984 - 01/1990	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3F..FJ7#	11/1984 - 01/1990	1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-60080	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19117-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19118 - SPRING, DISTRIBUTOR CAP, B
19118-60070	3F..FJ7#	11/1984 - 01/1990	1
19121 - COVER, DUST PROOF
19121-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19121-30030	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-39041	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19122-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19133 - CONDENSER, DISTRIBUTOR
90099-52050	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19133-60040	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19145 - POINT, DISTRIBUTOR
19145-26060	3F..FJ7#	11/1984 - 01/1990	1
19151 - SHAFT, GOVERNOR
19151-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19151-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19152 - WEIGHT, GOVERNOR
19152-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	2
19152-63010	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19152 - WEIGHT, GOVERNOR
19152-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	2
19152-63010	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19153 - SPRING, GOVERNOR, A
19153-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19153-61150	3F..FJ7#..GEN	11/1984 - 04/1985	1
19153-61151	3F..FJ7#..GEN,SA	04/1985 - 01/1990	1
19154 - SPRING, GOVERNOR, B
19154-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19154-61151	3F..FJ7#..GEN,SA	04/1985 - 01/1990	1
19154-61150	3F..FJ7#..GEN	11/1984 - 04/1985	1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-60040	3F..FJ7#	11/1984 - 01/1990	1
19169 - STOPPER, CAM GREASE
19169-63011	3F..FJ7#..MTM..GEN W/ANTI-OVER RUN	05/1987 - 01/1990	1
19169-32010	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1987	1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19220-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19231 - TERMINAL, DISTRIBUTOR
19231-45020	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19132-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19242 - CLAMP, CORD
19242-26250	3F..FJ7#	11/1984 - 01/1990	1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010	3F..FJ7#	11/1984 - 01/1990	1
Common parts
90093-31202
90093-31204
90099-00124
90099-00710
90099-00713
90099-00810
90099-00878
90099-00940
90099-02093
90099-02198
90173-06009
91611-60816
93180-16032
94611-10601

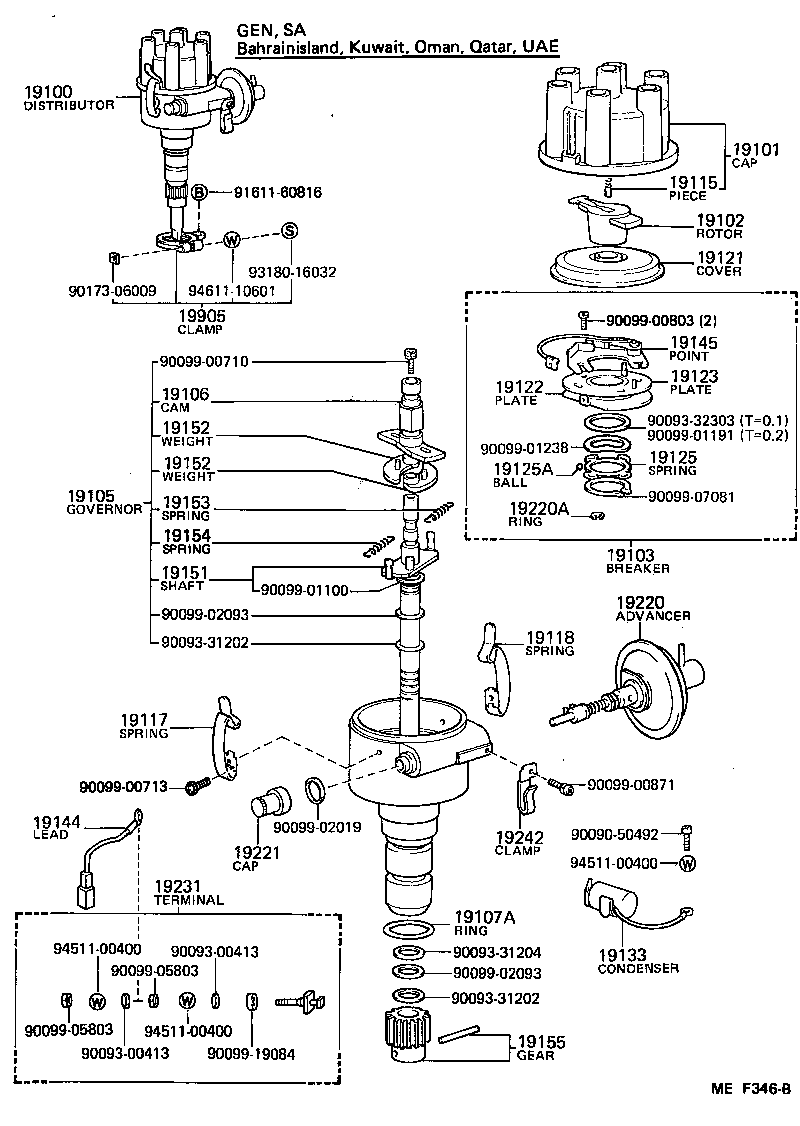

(8411- )3F..GEN,ME,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-61180	3F..FJ7#..MTM..GEN W/ANTI-OVER RUN	05/1985 - 01/1990	1
19100-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19100-61180	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19101-45060	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-61180	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19102-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-41030	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19103-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19105 - GOVERNOR SUB-ASSY
19105-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19105-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19106-41110	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020	3F..FJ7#	11/1984 - 01/1990	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010	3F..FJ7#	11/1984 - 01/1990	1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-60080	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19117-41010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19118 - SPRING, DISTRIBUTOR CAP, B
19118-60070	3F..FJ7#	11/1984 - 01/1990	1
19121 - COVER, DUST PROOF
19121-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 05/1985	1
19121-30030	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-39041	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19122-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19123 - PLATE, DISTRIBUTOR BREAKER
19123-41011	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE)
19125-30010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19125A - BALL, DISTRIBUTOR STATIONARY PLATE
90099-12003	3F..FJ7#..GEN,SA	11/1984 - 01/1990	4
19133 - CONDENSER, DISTRIBUTOR
90099-52050	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19133-60040	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-61010	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19145 - POINT, DISTRIBUTOR
19145-26060	3F..FJ7#	11/1984 - 01/1990	1
19151 - SHAFT, GOVERNOR
19151-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19151-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19152 - WEIGHT, GOVERNOR
19152-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	2
19152-63010	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19152 - WEIGHT, GOVERNOR
19152-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	2
19152-63010	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	2
19153 - SPRING, GOVERNOR, A
19153-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19153-61150	3F..FJ7#..GEN	11/1984 - 04/1985	1
19153-61151	3F..FJ7#..GEN,SA	04/1985 - 01/1990	1
19154 - SPRING, GOVERNOR, B
19154-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19154-61151	3F..FJ7#..GEN,SA	04/1985 - 01/1990	1
19154-61150	3F..FJ7#..GEN	11/1984 - 04/1985	1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-60040	3F..FJ7#	11/1984 - 01/1990	1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-61150	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19220-61160	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07104	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19221 - CAP, ADJUSTER, DISTRIBUTOR
19221-30030	3F..FJ7#..GEN,SA	11/1984 - 02/1987	1
19221-60040	3F..FJ7#..GEN,SA	02/1987 - 01/1990	1
19231 - TERMINAL, DISTRIBUTOR
19231-45020	3F..FJ7#..GEN,SA	11/1984 - 01/1990	1
19132-61023	3F..FJ7#..MTM..(GEN,ME) W/ANTI-OVER RUN	11/1984 - 01/1990	1
19242 - CLAMP, CORD
19242-26250	3F..FJ7#	11/1984 - 01/1990	1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19905-40010	3F..FJ7#	11/1984 - 01/1990	1
Common parts
90090-50492
90093-00413
90093-31202
90093-31204
90093-32303
90099-00710
90099-00713
90099-00803
90099-00871
90099-01100
90099-01191
90099-01238
90099-02019
90099-02093
90099-05803
90099-07081
90099-19084
90173-06009
91611-60816
93180-16032
94511-00400
94611-10601

(9001-9208)3F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90093-31202
90093-31204
90099-00124
90099-00710
90099-00713
90099-00810
90099-00878
90099-00940
90099-02093
90099-02198
90173-06009
91611-60816
93180-16032
94611-10601

FJ75LP-KR (1984)

(8411- )3F

(8411- )3F..GEN,ME,SA

(9001-9208)3F
