FJ75LP-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

Click highlighted areas on diagram

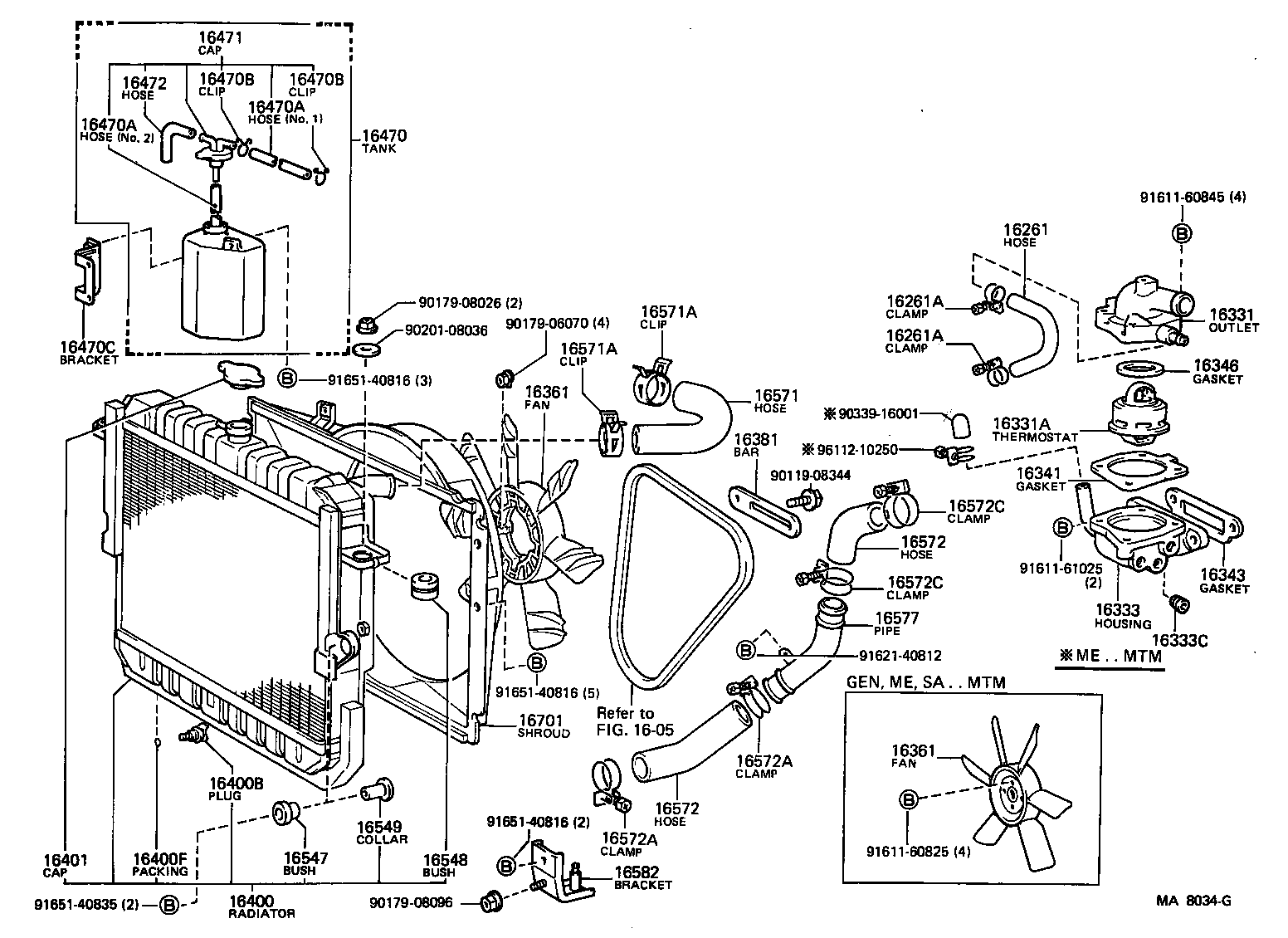

diagram 1605 16261 16261A 16261A 16331 16331A 16333 16333C 16341 16343 16346 16361 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470C 16471 16472 16547 16548 16549 16571 16571A 16571A 16572 16572 16572A 16572A 16572C 16572C 16577 16582 16701 9011908344 9017906070 9017908026 9017908096 9020108036 9033916001 9161160825 9161160845 9161161025 9162140812 9165140816 9165140816 9165140816 9165140835 9611210250
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-61010

3F..FJ7#

 1
16261-61020

3F..FJ7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

3F..FJ7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

3F..FJ7#

 2
16331 - OUTLET, WATER
16303-61010

3F..FJ7#

 1
16331A - THERMOSTAT
90916-03052

3F..FJ7#

*WAX 88-100

 1
90916-03071

3F..FJ7#

*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16331-61060

3F..FJ70,75..GEN;3F..FJ73..4F,4FC;3F..FJ70..4FC..ME;3F..FJ73..5F..GEN

 1
16331-61060

3F..FJ7#..GEN

 1
16304-61010

3F..FJ7#..GEN

W/HEATER

 1
16341 - GASKET, WATER OUTLET
16341-61020

3F..FJ7#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-61010

3F..FJ7#

 1
16346 - GASKET, THERMOSTAT
90430-43002

3F..FJ7#

 1
16361 - FAN
16361-60090

3F..FJ7#..MTM..GEN

OD=410,6BLADES

 1
16361-60101

3F..FJ7#..MTM..(GEN,ME,SA)

OD=430,8BLADES,W/COOLER

 1
16361 - FAN
16361-60090

3F..FJ7#..MTM..GEN

OD=410,6BLADES

 1
16361-60101

3F..FJ7#..MTM..(GEN,ME,SA)

OD=430,8BLADES,W/COOLER

 1
16381 - BAR, FAN BELT ADJUSTING
16381-61020

3F..FJ7#

 1
16400 - RADIATOR ASSY
16400-61070

3F..FJ75..GEN

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

3F..FJ7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

3F..FJ7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

3F..FJ7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-61020

3F..FJ7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3F..FJ7#

*H,L=270,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3F..FJ7#

*H,L=270,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3F..FJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3F..FJ7#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-61010

3F..FJ7#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-61010

3F..FJ7#

 1
16472 - HOSE, BREATHER
16472-56110

3F..FJ7#

 1
85338-74040

3F..FJ7#

 1
16547 - BUSH, RADIATOR SUPPORT, NO.1
16548-68070

3F..FJ7#

 2
16548 - BUSH, RADIATOR SUPPORT, NO.2
16547-68070

3F..FJ7#

 2
16549 - COLLAR, RADIATOR SUPPORT, NO.2
16549-68070

3F..FJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-61081

3F..FJ7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

3F..FJ7#

 2
90467-42001

3F..FJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

3F..FJ7#

 2
90467-42001

3F..FJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16573-61020

3F..FJ7#..MTM

RADIATOR SIDE

 1
16572-61020

3F..FJ7#

WATER PUMP SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16573-61020

3F..FJ7#..MTM

RADIATOR SIDE

 1
16572-61020

3F..FJ7#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

3F..FJ7#

 2
96111-10500

3F..FJ7#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

3F..FJ7#

 2
96111-10500

3F..FJ7#

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10500

3F..FJ7#

 2
96111-10510

3F..FJ7#

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10500

3F..FJ7#

 2
96111-10510

3F..FJ7#

 2
16577 - PIPE, RADIATOR, NO.7
16577-61130

3F..FJ7#

 1
16582 - BRACKET, RADIATOR, NO.1
16582-68010

3F..FJ7#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-61170

3F..FJ7#..MTM..(GEN,ME,SA)

OD=430,8BLADES,W/COOLER

 1
16711-61160

3F..FJ7#..MTM..GEN

 1
Common parts
90119-08344
90179-06070
90179-08026
90179-08096
90201-08036
90339-16001
91611-60825
91611-60845
91611-61025
91621-40812
91651-40816
91651-40835
96112-10250
