FJ73RV-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8510)HT,SOT..ARL ; (8411- )PIC ; (8608-)HT,SOT..GEN,ME

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81278 81278 81278A 9017904092 9017904092 9046310521 9046713030 9165540616 9324964005 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-69165

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,RH

 1
81270-69135

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE,12V

 1
81690-69015

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,LH

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-69165

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,RH

 1
81270-69135

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE,12V

 1
81690-69015

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 5W,12V 5W

 2
99132-11100

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 5W,12V 5W

 2
99132-11100

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81271-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81271-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81272-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81272-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81278 - COVER, LICENSE PLATE LAMP
81276-90K02

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 1
81278-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81278 - COVER, LICENSE PLATE LAMP
81276-90K02

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 1
81278-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81278A - BRACKET, LICENSE PLATE LAMP
81276-90K03

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,RH

 1
81696-90K00

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,LH

 1
Common parts
90179-04092
90463-10521
90467-13030
91655-40616
93249-64005

(8411- )HT,SOT

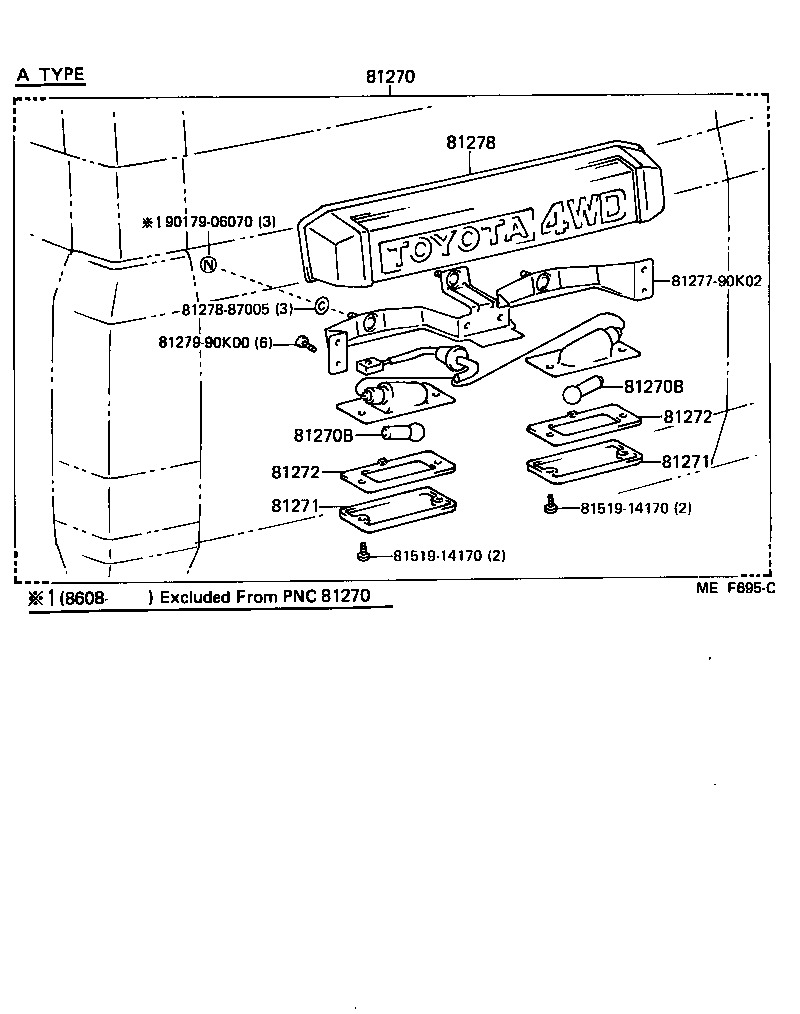

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81271 81272 81272 8127790K02 81278 8127887005 8127990K00 8151914170 8151914170 9017906070
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-69165

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,RH

 1
81270-69135

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE,12V

 1
81690-69015

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE,LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 5W,12V 5W

 2
99132-11100

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 5W,12V 5W

 2
99132-11100

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81271-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81271-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81272-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
81272-87004

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 2
81278 - COVER, LICENSE PLATE LAMP
81276-90K02

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

A TYPE

 1
81278-10011

BJ70,73,FJ7#,HJ75,RJ70..(HT,SOT)..ARL

B TYPE

 2
Common parts
81277-90K02
81278-87005
81279-90K00
81519-14170
90179-06070
