FJ73LV-PRV (1984)
Toyota Land Cruiser

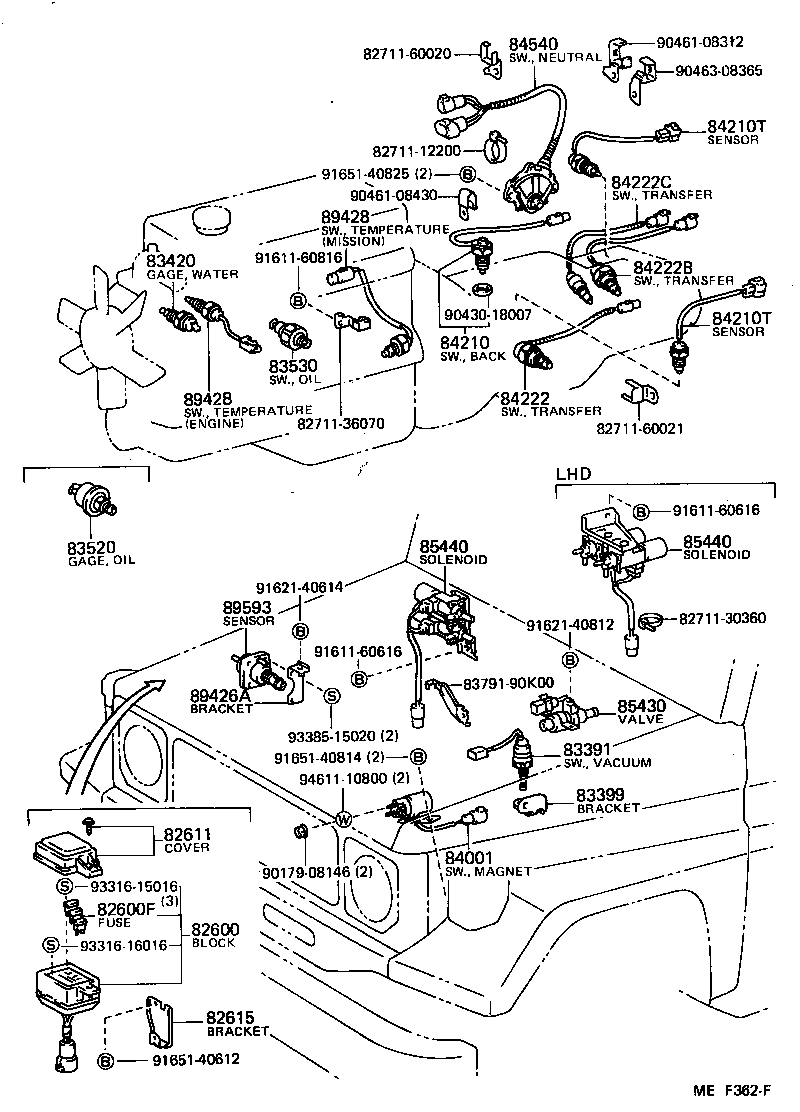

ILLUST NO. 1 OF 6(8411- )FJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 15A,15A |
4 | ||
| 90982-09005 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 7.5A,7.5A |
2 | ||
| 90982-09004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 20A,YELLOW,20A |
4 | ||
| 90982-09002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 10A,10A |
5 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83520-60010 |
FJ73..HT;FJ73..SOT..GEN;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 84001 - SWITCH ASSY, MAGNET | ||||
| 38630-60080 |
BJ70,73,75,FJ7#,HJ75..GEN,ME |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-60030 |
BJ74,FJ70,73..4FC |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60040 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60020 |
BJ74,FJ70,73..4FC |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-60020 |
FJ7# |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60060 |
BJ70,75,FJ7#,HJ75..LHD |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60060 |
BJ70,75,FJ7#,HJ75..LHD |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-60010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 89426-60010 |
LJ70..DSL;LJ70..ARL;LJ70..LHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-36010 |
BJ74,FJ70,73..4FC TRANSMISSION |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-36010 |
BJ74,FJ70,73..4FC TRANSMISSION |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60010 |
FJ7# |
1 | ||
| 89421-60010 |
FJ7# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30360 | ||||
| 82711-36070 | ||||
| 82711-60020 | ||||
| 82711-60021 | ||||
| 83791-90K00 | ||||
| 90179-08146 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08430 | ||||
| 90463-08365 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91621-40812 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||

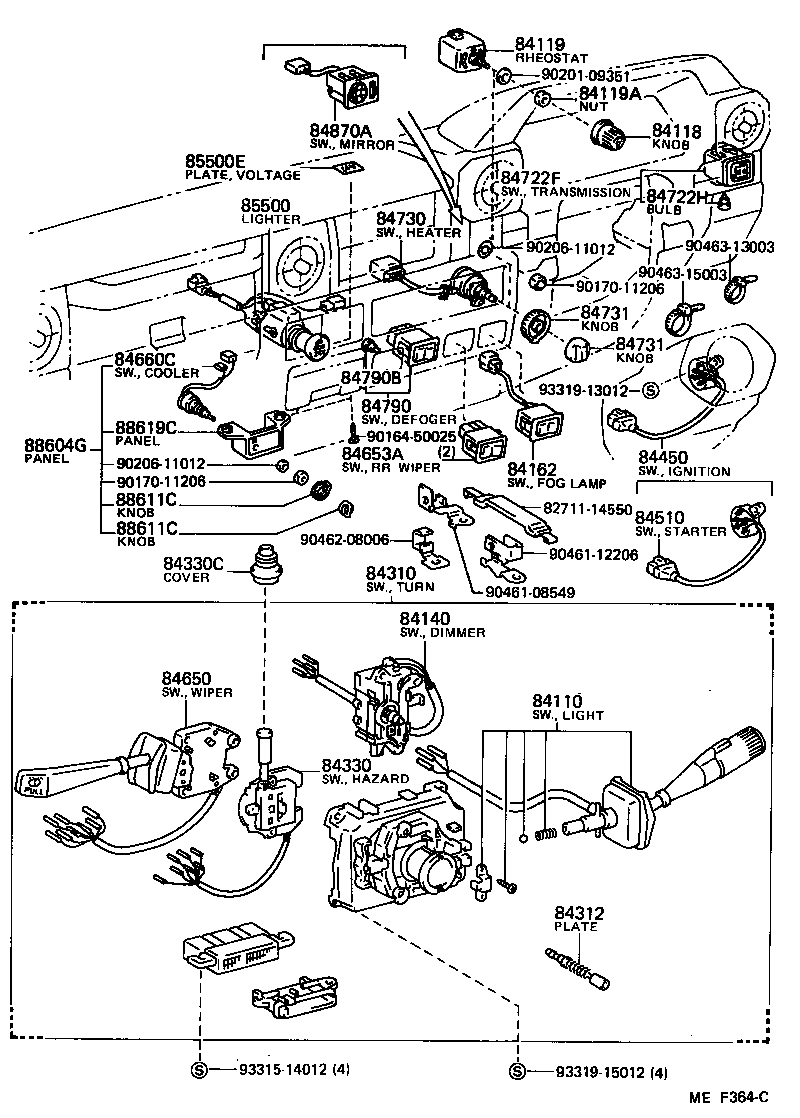

ILLUST NO. 3 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69375 |
BJ73,FJ73..LHD..HT WATER PROOF |
1 | ||
| 84112-69355 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69105 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60520 |
BJ73,FJ73..LHD..HT W/*IW,WATER PROOF |
1 | ||
| 84310-60560 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) |
1 | ||
| 84310-60570 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) W/*IW |
1 | ||
| 84310-60510 |
BJ73,FJ73..LHD..HT WATER PROOF |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-60010 |
BJ73,74,FJ73;BJ70,FJ70,LJ70,RJ70..SOT WATER PROOF |
1 | ||
| 84312-32010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,PIC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69115 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) |
1 | ||
| 84332-69135 |
BJ73,FJ73..LHD..HT WATER PROOF |
1 | ||
| 84330C - COVER, HAZARD WARNING SIGNAL SWITCH | ||||
| 84333-60010 |
BJ73,74,FJ73;BJ70,FJ70,LJ70,RJ70..SOT |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60140 |
FJ7#;RJ70..HT..ME;RJ70..ARL,GEN |
1 | ||
| 84450-60120 |
FJ7#,RJ70;BJ70,73,HJ75..ARL W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69435 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) |
1 | ||
| 84652-69445 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..(HT,PIC) W/*IW |
1 | ||
| 84652-69485 |
BJ73,FJ73..LHD..HT W/*IW,WATER PROOF |
1 | ||
| 84652-69475 |
BJ73,FJ73..LHD..HT WATER PROOF |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-22010 |
BJ70,73,74,FJ70,73,LJ70,RJ70..HT |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60050 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V 1.12W,12V |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD |
1 | ||
| 84660-90K01 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,COOLER CONTROL |
1 | ||
| 84731-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,COOLER CONTROL |
1 | ||
| 84731-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12120 |
BJ70,73,74,FJ70,73,LJ70,RJ70..HT 12V |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
BJ70,73,FJ70,73,LJ70,RJ70..HT 12V 1.12W,12V |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-95J00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90164-50025 | ||||
| 90170-11206 | ||||
| 90201-09351 | ||||
| 90206-11012 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||

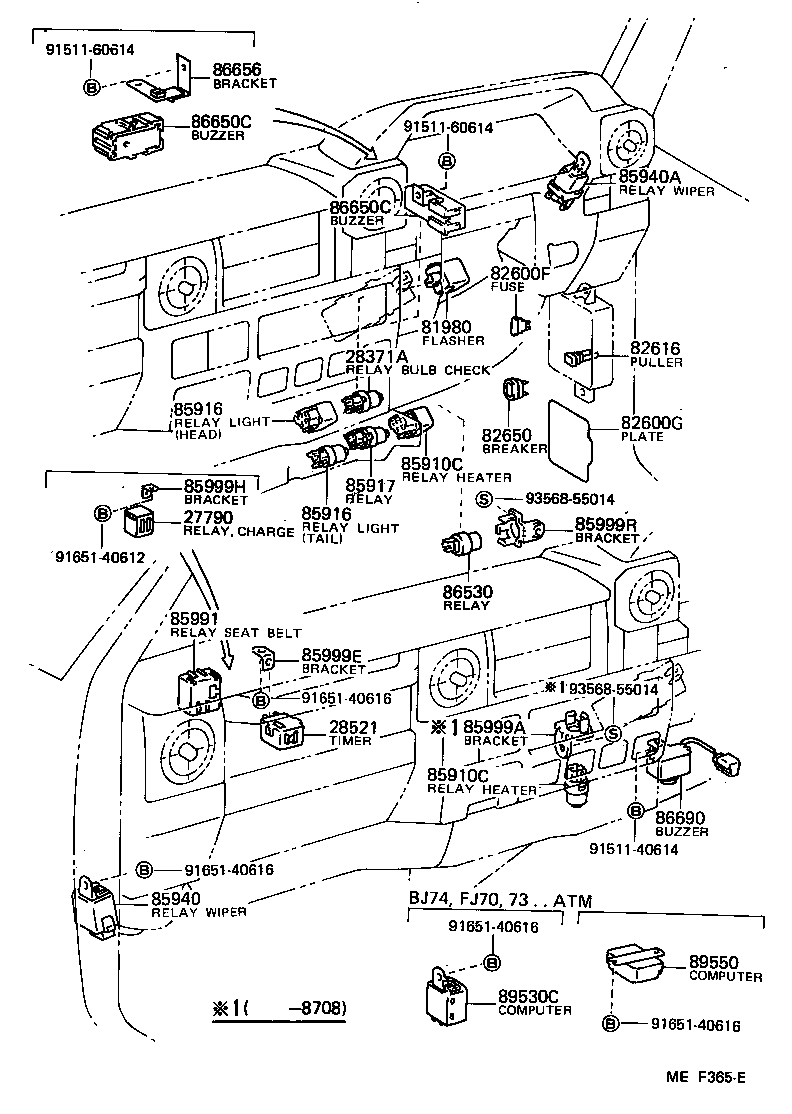

ILLUST NO. 4 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 15A,15A |
4 | ||
| 90982-09005 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 7.5A,7.5A |
2 | ||
| 90982-09004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 20A,YELLOW,20A |
4 | ||
| 90982-09002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 10A,10A |
5 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 30A,30A |
1 | ||
| 82650-35010 |
BJ7#,FJ7#,LJ70,RJ70..ARL,GEN,ME 20A,20A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 90987-02004 |
BJ70,75,FJ7#,LJ70,RJ70..HT,SOT 12V RR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 90987-02004 |
BJ70,75,FJ7#,LJ70,RJ70..HT,SOT 12V RR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,HEAD |
1 | ||
| 90987-01003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,HEAD |
1 | ||
| 90987-01003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 85940A - RELAY, WINDSHIELD WIPER SWITCH | ||||
| 28380-20010 |
BJ73,74,FJ73;BJ70,FJ70,LJ70,RJ70..SOT 12V |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-12040 |
BJ75,FJ7#,RJ70..ME |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
BJ70,75,FJ7#,LJ70,RJ70..HT,SOT |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-89101 |
BJ70,73,75,HJ75..GEN,ME,SA |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22090 |
FJ7#,RJ70..ME |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-60010 |
BJ74,FJ70,73..4FC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60170 |
FJ70,73..4FC..ME |
1 | ||
| Common parts | ||||
| 91511-40614 | ||||
| 91511-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93568-55014 | ||||

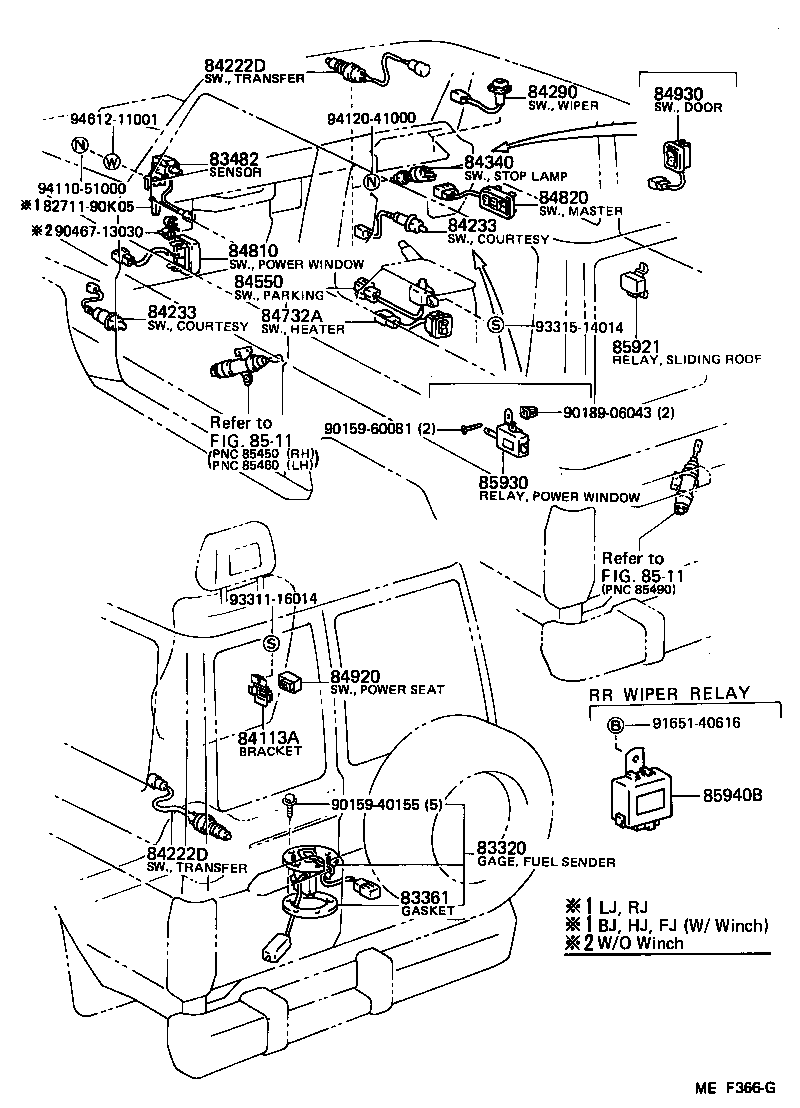

ILLUST NO. 5 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69025 |
BJ70,73,74,FJ70,73,LJ70,RJ70 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90K01 |
FJ75..GEN;FJ75..HT..ME;FJ70..LHD..SOT;FJ70..HT..(GEN,ME);BJ70,75,FJ73,HJ75,LJ70,RJ70..GEN,ME W/WINCH |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-90A00 |
LJ70..LHD..TD;BJ70,FJ70,73,HJ75,LJ70,RJ70..HT..(CBR,DSL)..(GEN,ME) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84650-90K00 |
BJ73,74,FJ73;BJ70,FJ70,LJ70,RJ70..SOT |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90K0003 |
BJ70,73,FJ70,73,LJ70,RJ70..HT GRAY,SHADOW GRAY |
1 | ||
| 84810-90K0003 |
BJ70,FJ70,73,LJ70,RJ70..HT..(GEN,ME) GRAY,SHADOW GRAY |
1 | ||
| 84810-90K0006 |
BJ73,74,FJ73,LJ70,RJ70..HT BROWN,SEPIA BROWN |
1 | ||
| 84810-90K0006 |
BJ70,73,FJ70,73,LJ70,RJ70..HT BROWN,SEPIA BROWN |
1 | ||
| 84810-90K0003 |
BJ73,74,FJ73,LJ70,RJ70..HT GRAY,SHADOW GRAY |
1 | ||
| 84810-90K0006 |
BJ70,FJ70,73,LJ70,RJ70..HT..(GEN,ME) BROWN,SEPIA BROWN |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-90K0103 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT GRAY,SHADOW GRAY |
1 | ||
| 84820-90K0403 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT GRAY,SHADOW GRAY |
1 | ||
| 84820-90K0106 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT BROWN,SEPIA BROWN |
1 | ||
| 84820-90K0406 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT BROWN,SEPIA BROWN |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-90A0006 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT BROWN,SEPIA BROWN |
1 | ||
| 84920-90A0003 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT GRAY,SHADOW GRAY |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-90K0003 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) GRAY,SHADOW GRAY |
1 | ||
| 84930-90K0006 |
BJ70,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) BROWN,SEPIA BROWN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-90K02 |
BJ70,FJ70,73,LJ70,RJ70..LHD..HT 12V |
1 | ||
| Common parts | ||||
| 82711-90K05 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90467-13030 | ||||
| 91651-40616 | ||||
| 93311-16014 | ||||
| 93315-14014 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8511 | ||||

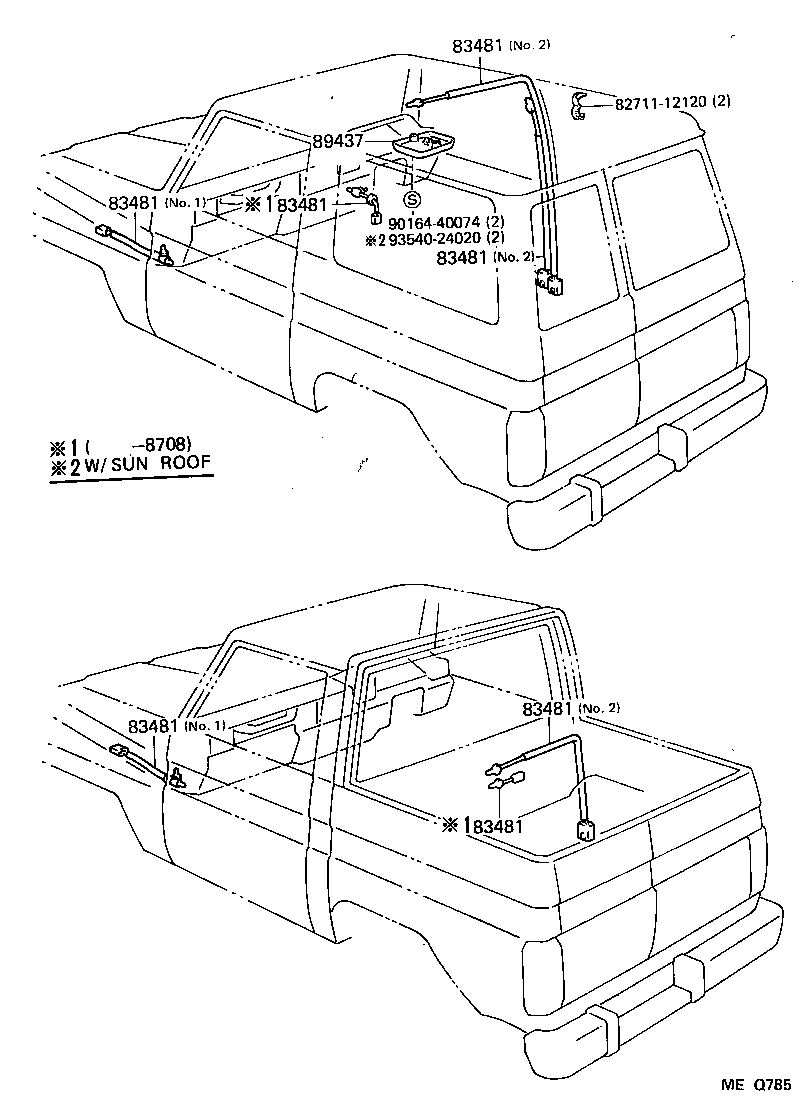

ILLUST NO. 6 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
ILLUST NO. 2 OF 7(9001-0808)FJ7#,FZJ7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06157 | ||||
| 90119-08699 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 90179-08066 | ||||
| 90179-08204 | ||||
| 91611-60616 | ||||
| 91621-40812 | ||||
| 91621-B0816 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-40818 | ||||
| 93313-16016 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93383-A5025 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 3802 | ||||
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 3 OF 7(9001-0808)LHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50025 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 7(9001-0907)FJ7#,FZJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-60010 | ||||
| 82711-60020 | ||||
| 82715-60010 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
