FJ73LV-PNV (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 88321-14021 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# REAR |
1 | ||
| 88321-14021 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70 FRONT |
1 | ||
| 88342-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70 FRONT |
1 | ||
| 88342-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70 REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-60060 |
FJ70,73..GCC;FJ75..PIC..GCC;FJ75..HT..(GCC,GEN) |
1 | ||
| 88336-60060 |
FJ75..HT;FJ70,73..GCC;FJ75..PIC..GCC |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70..ARL,GCC,GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14021 |
RJ77..GEN;HZJ75..GCC;FJ7#,LJ7#,RJ70..ARL,GCC,GEN |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60200 |
FJ7#..GCC |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN |
2 | ||
| 88374-12020 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN |
2 | ||
| 88374-12020 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88375-20010 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88375-30270 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN SUCTION |
1 | ||
| 88375-30270 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88375-20010 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88375-30270 |
FJ7#,HZJ7#,PZJ7#,RJ7#..ARL,GCC,GEN SUCTION |
1 | ||
| 88375-30270 |
FJ7#,HZJ7#,PZJ7#,RJ70..ARL,GCC,GEN SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ7#,HZJ7#,LJ70,PZJ7#,RJ70..ARL,GCC,GEN SUCTION |
1 | ||
| 88376-22020 |
RJ7#..ARL,GCC;FJ7#,HZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88376-22010 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN SUCTION |
1 | ||
| 88376-22020 |
RJ70..LX;RJ77..GCC;FJ7#,HZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ7#,HZJ7#,LJ70,PZJ7#,RJ70..ARL,GCC,GEN SUCTION |
1 | ||
| 88376-22020 |
RJ7#..ARL,GCC;FJ7#,HZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| 88376-22010 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN SUCTION |
1 | ||
| 88376-22020 |
RJ70..LX;RJ77..GCC;FJ7#,HZJ7#,LJ7#,PZJ7#..ARL,GCC,GEN DISCHARGE |
1 | ||
| Common parts | ||||
| 88569-20010 | ||||
| 88569-20130 | ||||
| 88569-30270 | ||||
| 88569-30660 | ||||
| 88569-60050 | ||||
| 88569-60070 | ||||
| 88688-60320 | ||||
| 88688-60440 | ||||
| 90091-00585 | ||||
| 90091-08585 | ||||
| 90099-04106 | ||||
| 90099-04107 | ||||
| 90099-04109 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 93319-15008 | ||||

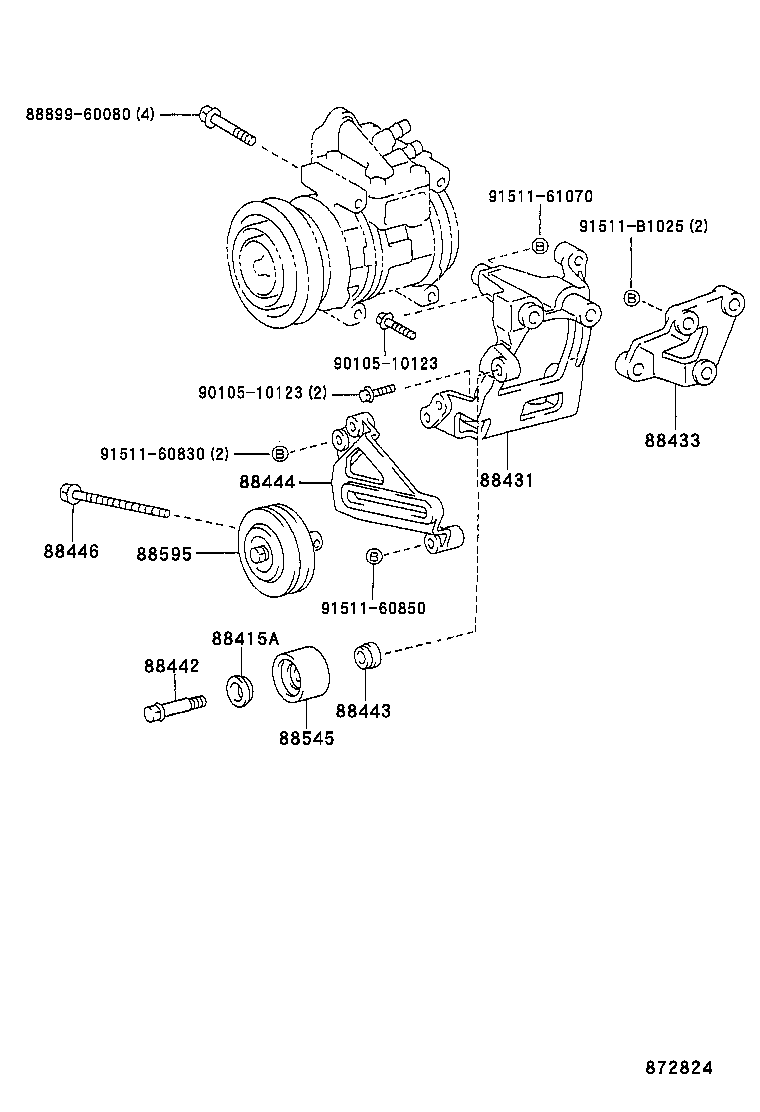

ILLUST NO. 2 OF 3(9001-9208)FJ7#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415A - COVER, DUST | ||||
| 88415-36050 |
FJ7#..GCC,GEN |
1 | ||
| 88415-36050 |
FJ7#..GCC,GEN;FJ75..ARL..CBU |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60130 |
FJ7#..ARL,GCC,GEN |
1 | ||
| 88431-60131 |
FJ7#..GCC,GEN;FJ75..ARL..CBU |
1 | ||
| 88431-60131 |
FJ7#..GCC,GEN |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88437-60270 |
FJ7#..GCC,GEN |
1 | ||
| 88442 - SHAFT, IDLE PULLEY | ||||
| 88442-36010 |
FJ7#..GCC,GEN |
1 | ||
| 88442-36010 |
FJ7#..GCC,GEN;FJ75..ARL..CBU |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
FJ7#..GCC,GEN;FJ75..ARL..CBU |
1 | ||
| 88443-36010 |
FJ7#..GCC,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60090 |
FJ7#..ARL,GCC,GEN |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60030 |
FJ7#,PZJ7#..GCC,GEN;HZJ7#,LJ72,79..STD..(ARL,GCC,GEN) |
1 | ||
| 88446-60030 |
LJ72,79..STD;HZJ7#,PZJ70,73;FJ75..ARL..CBU;FJ7#,PZJ75..GCC,GEN |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-36100 |
FJ7#..GCC,GEN;FJ75..ARL..CBU |
1 | ||
| 88440-36100 |
FJ7#..GCC,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12160 |
FJ7#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 88899-60080 | ||||
| 90105-10123 | ||||
| 91511-60830 | ||||
| 91511-60850 | ||||
| 91511-61070 | ||||
| 91511-B1025 | ||||
ILLUST NO. 1 OF 3(9001- )FJ7#,FZJ7#,HJ75,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-27010 |
FJ7#,LJ7#..ARL,GCC,GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-35020 |
FJ7#..GCC |
1 | ||
| 88411-30540 |
FJ7#..GCC |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60390 |
FJ7#..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
FJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35040 |
FJ7#..GCC |
1 | ||
| Common parts | ||||
| 88688-60640 | ||||
| 88688-60650 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90159-50123 | ||||
| 93319-15008 | ||||
