FJ73LV-PNV (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )1FZ#,3F

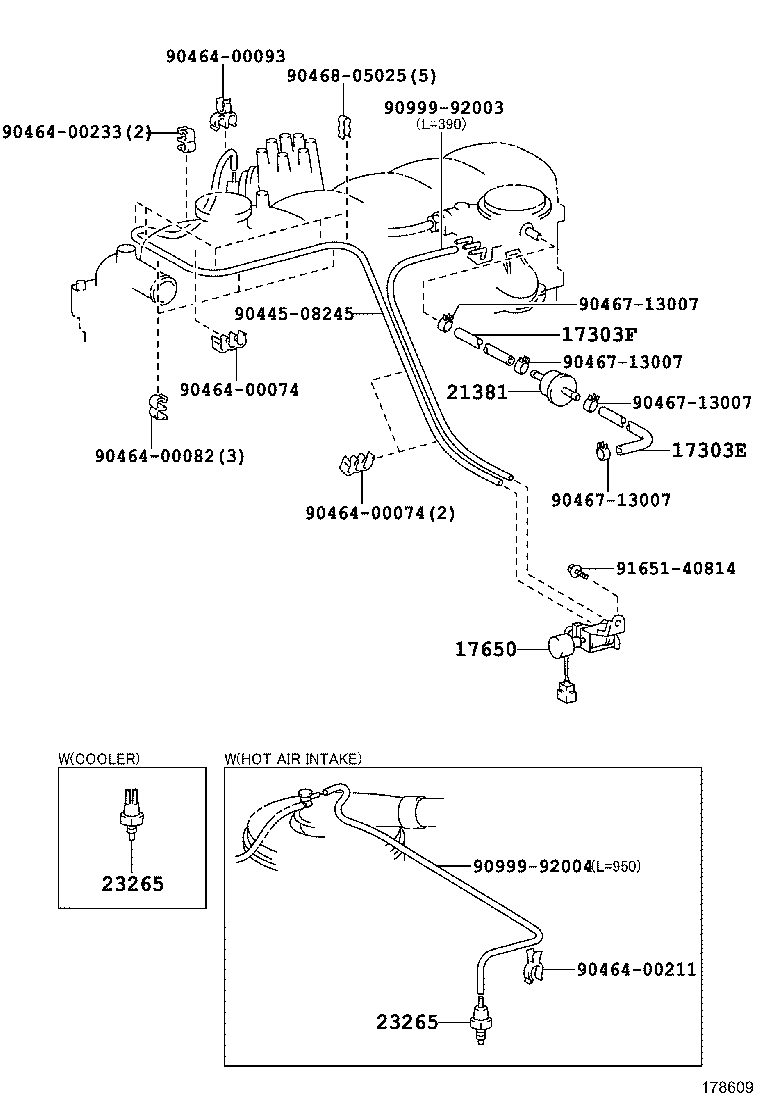

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9001-9208)3F..FJ73..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90910-05173 |
3F..FJ7#..LHD |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14102 |
3F..FJ7#..ARL,GCC,GEN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35200 |
3F..FJ73..4FC |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
3F..FJ7#..ARL,GCC,GEN |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3F..FJ73..4FC;3F..FJ70..RHD..GEN;3F..FJ75..LHD..5F..GEN;3F..FJ75..RHD..(ARL,GEN);3F..FJ70,73..(4FC,5F)..(ARL,GEN) W(HOT AIR INTAKE & AIR CONDITIONER) |
1 | ||
| 90917-11022 |
3F..FJ7#..GEN;3F..FJ73..4FC W(HOT AIR INTAKE OR AIR CONDITIONER) |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3F..FJ73..4FC;3F..FJ70..RHD..GEN;3F..FJ75..LHD..5F..GEN;3F..FJ75..RHD..(ARL,GEN);3F..FJ70,73..(4FC,5F)..(ARL,GEN) W(HOT AIR INTAKE & AIR CONDITIONER) |
1 | ||
| 90917-11022 |
3F..FJ7#..GEN;3F..FJ73..4FC W(HOT AIR INTAKE OR AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 90445-08245 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00093 | ||||
| 90464-00211 | ||||
| 90464-00233 | ||||
| 90467-13007 | ||||
| 90468-05025 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40814 | ||||
