FJ73LV-MRV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ73,74,FJ73..HT

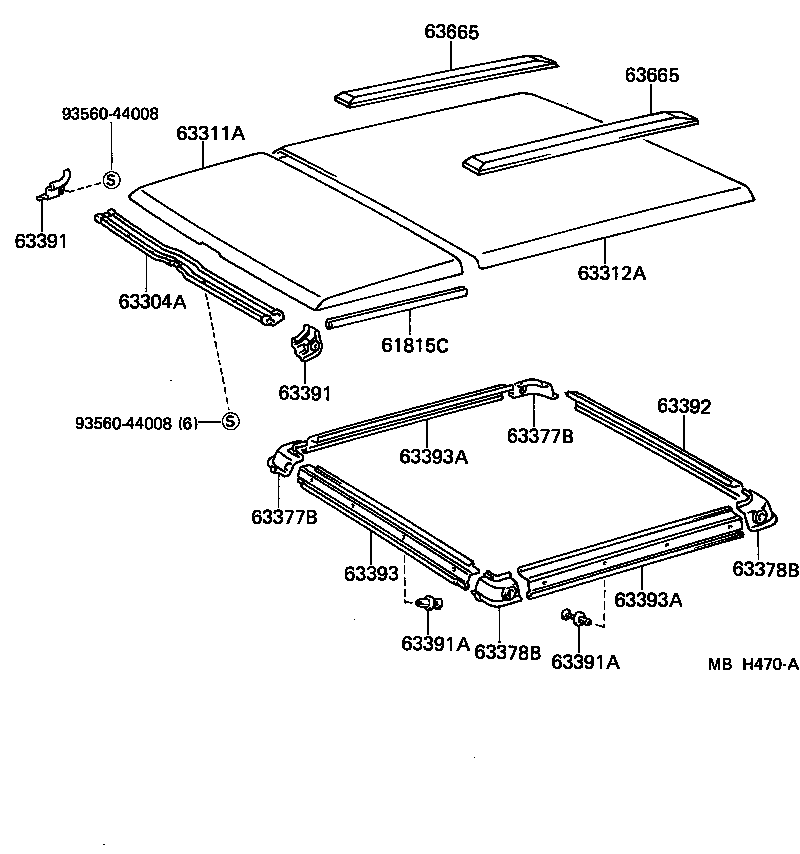

Click highlighted areas on diagram

diagram 61815C 63304A 63311A 63312A 63377B 63377B 63378B 63378B 63391 63391 63391A 63391A 63392 63393 63393A 63393A 63665 63665 9356044008 9356044008
Part # Description Qty Price
61815C - COVER, ROOF SIDE, INNER UPPER
61815-90K0008

BJ73,74,FJ73..HT

IVORY,IVORY

 2
63304A - TRIM SUB-ASSY, ROOF HEADLINING, FRONT
63304-90K0108

BJ73,74,FJ73..HT

IVORY,IVORY

 1
63311A - HEADLINING, ROOF NO.1
63311-90K0108

BJ73,74,FJ73..HT

IVORY,IVORY

 1
63312A - HEADLINING, ROOF, NO.2
63312-90K0108

BJ73,74,FJ73..HT

IVORY,IVORY

 1
63377B - MOULDING, ROOF HEADLINING, REAR RH
63377-90K0008

BJ73,74,FJ73..HT

FR,IVORY,IVORY

 1
63378-90K0008

BJ73,74,FJ73..HT

RR,IVORY,IVORY

 1
63377B - MOULDING, ROOF HEADLINING, REAR RH
63377-90K0008

BJ73,74,FJ73..HT

FR,IVORY,IVORY

 1
63378-90K0008

BJ73,74,FJ73..HT

RR,IVORY,IVORY

 1
63378B - MOULDING, ROOF HEADLINING, REAR LH
63378-90K0008

BJ73,74,FJ73..HT

FR,IVORY,IVORY

 1
63377-90K0008

BJ73,74,FJ73..HT

RR,IVORY,IVORY

 1
63378B - MOULDING, ROOF HEADLINING, REAR LH
63378-90K0008

BJ73,74,FJ73..HT

FR,IVORY,IVORY

 1
63377-90K0008

BJ73,74,FJ73..HT

RR,IVORY,IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63395-90K0008

BJ73,74,FJ73..HT

RH,IVORY,IVORY

 1
63396-90K0008

BJ73,74,FJ73..HT

LH,IVORY,IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63395-90K0008

BJ73,74,FJ73..HT

RH,IVORY,IVORY

 1
63396-90K0008

BJ73,74,FJ73..HT

LH,IVORY,IVORY

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-0503108

BJ73,74,FJ73..HT

IVORY,IVORY

 20
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-0503108

BJ73,74,FJ73..HT

IVORY,IVORY

 20
63392 - TRIM, ROOF HEADLINING, REAR
63394-90K0108

BJ73,74,FJ73..HT

IVORY

 1
63393 - TRIM, ROOF HEADLINING, CENTER
63392-90K0108

BJ73,74,FJ73..HT

IVORY

 1
63393A - TRIM, ROOF HEADLINING, SIDE, NO.1
63393-90K0108

BJ73,74,FJ73..HT

IVORY

 2
63393A - TRIM, ROOF HEADLINING, SIDE, NO.1
63393-90K0108

BJ73,74,FJ73..HT

IVORY

 2
63665 - SPACER, ROOF HEADLINING
63665-90K00

BJ73,74,FJ73..HT

 2
63665 - SPACER, ROOF HEADLINING
63665-90K00

BJ73,74,FJ73..HT

 2
Common parts
93560-44008

(9001-0701)FJ73,FZJ73,74,HZJ73,PZJ73

Click highlighted areas on diagram

diagram 62450 62460 63304A 63304A 63311A 63312A 63377B 63377B 63378B 63378B 63391A 63391A 63392D 63393G 63393G 63394E 63395B 63396D 63665 63665 9356024008 9356024008
Part # Description Qty Price
Common parts
93560-24008
