FJ73L-MR (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

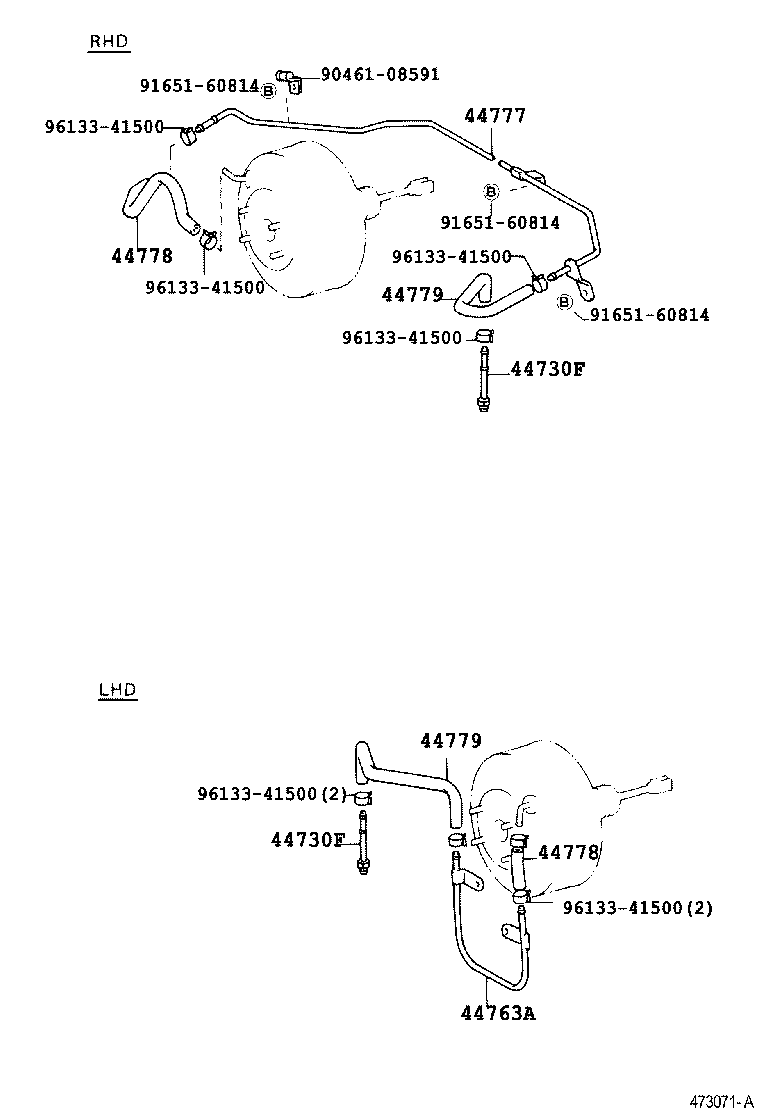

ILLUST NO. 2 OF 2(9001-9208)FJ7#

Click highlighted areas on diagram

diagram 44730F 44730F 44763A 44777 44778 44778 44779 44779 9046108591 9165160814 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

FJ7#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

FJ7#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-60040

FJ7#..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
90445-17044

FJ7#..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
90445-17044

FJ7#..LHD

 1
44779 - HOSE, UNION TO CONNECTOR
44773-60060

FJ7#..LHD

 1
44779 - HOSE, UNION TO CONNECTOR
44773-60060

FJ7#..LHD

 1
Common parts
90461-08591
91651-60814
96133-41500

ILLUST NO. 1 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 44610 44610 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60500

FJ7#..LHD..STD..GEN

W(FR DISC BRAKE)

 1
44610-60500

FJ7#..GEN

 1
44610-60640

FJ7#..LHD..STD..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-60500

FJ7#..LHD..STD..GEN

W(FR DISC BRAKE)

 1
44610-60500

FJ7#..GEN

 1
44610-60640

FJ7#..LHD..STD..GEN

 1
44696 - GROMMET, CHECK VALVE
90480-24439

FJ7#;RJ77..LHD;FZJ70,75..RHD

 1
90480-24439

FJ7#;RJ77..LHD;RJ70..LHD..STD

 1
90480-24439

RJ77..LHD;FJ7#,FZJ7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RJ7#..LHD;FJ7#,FZJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
Common parts
90179-08038
