FJ73L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1988
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

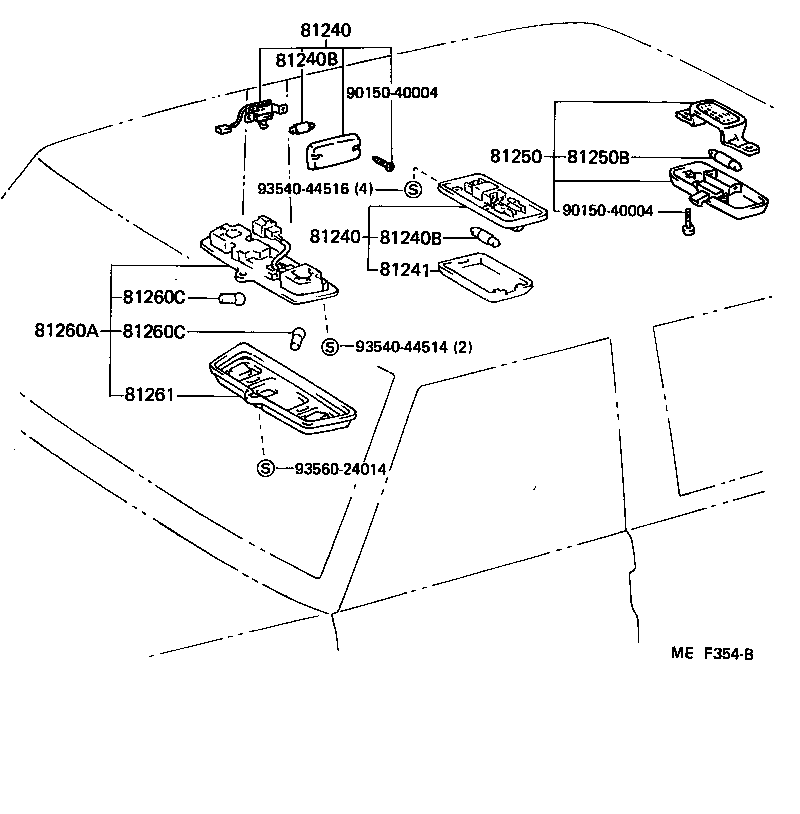

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81241 81250 81250B 81260A 81260C 81260C 81261 9015040004 9015040004 9354044514 9354044516 9356024014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2207008

FJ73..SOT;BJ70,FJ70,LJ70,RJ70

12V,IVORY,IVORY

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-2207008

FJ73..SOT;BJ70,FJ70,LJ70,RJ70

12V,IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
Common parts
90150-40004
93540-44514
93540-44516
93560-24014
