FJ73L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1988
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8608)ARL,GEN,ME ; (8608- )RJ70..STD ; (8608- )BJ70,73,75,FJ7#,HJ75,LJ70

Click highlighted areas on diagram

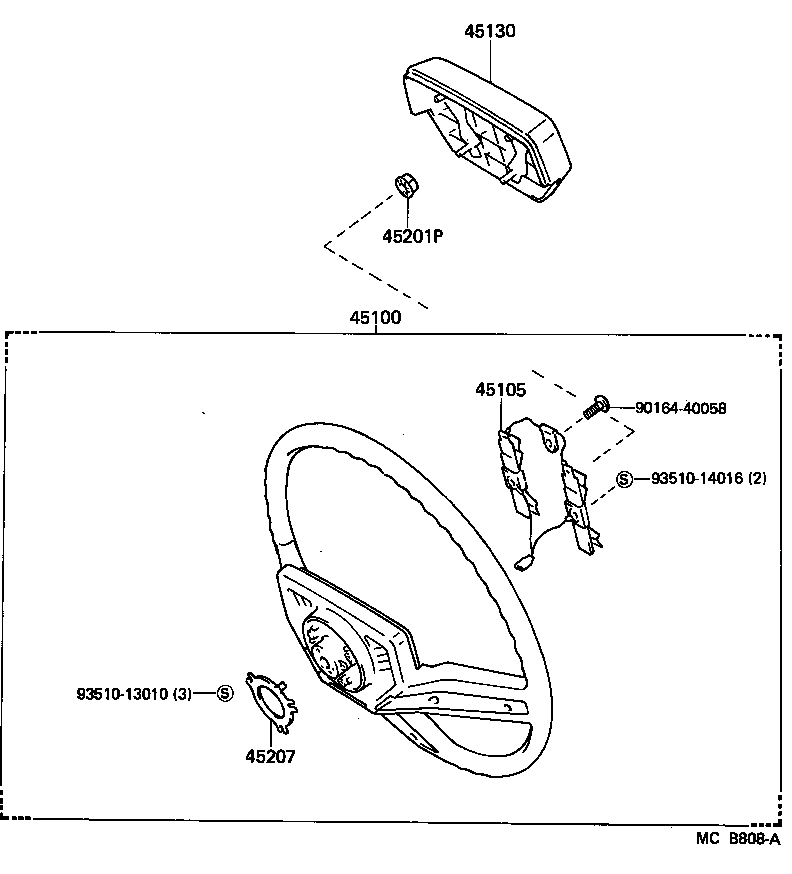

diagram 45100 45105 45130 45201P 45207 9016440058 9351013010 9351014016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-6012003

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

3SPOKE,POLYPROPYLENE,GRAY,SHADOW GRAY

 1
45100-6012006

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

3SPOKE,POLYPROPYLENE,BROWN,SEPIA BROWN

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60030

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
45130 - BUTTON ASSY, HORN
45130-6007006

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

BROWN,SEPIA BROWN

 1
45130-6007003

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

GRAY,SHADOW GRAY

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BJ7#,FJ7#,HJ75,LJ70,RJ70

 1
45207 - RING, HORN CONTACT
45176-20030

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 1
Common parts
90164-40058
93510-13010
93510-14016

(9001-0907)FJ7#,FZJ73,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

POLYPROPYLENE(3-SPOKE)

diagram 45100 45105 45130 45201P 45207 9016440058 9351013010 9351014016
Part # Description Qty Price
Common parts
90164-40058
93510-13010
93510-14016

(9001-0907)HZJ71..HT ; (9001-0907)FZJ74..LX..GCC; (9001-0907)FJ7#,FZJ70,71,73,75,7

Click highlighted areas on diagram

URETHANE(3-SPOKE)

diagram 45100 45105 45105A 45130 45155 45180 45201P 9015950238 9016741001 9016841001
Part # Description Qty Price
Common parts
90159-50238
90167-41001
90168-41001

(9001-9908)FZJ75..ARL ; (9001-9911)FZJ70..ARL ;(9001-9911)FJ7#,FZJ70,73,75,HJ75,HZ

Click highlighted areas on diagram

URETHANE(2-SPOKE)

diagram 45100 45105 45105B 45130 45136B 45142 45155A 45180 45201P 9331514016 9331914010 9351013008
Part # Description Qty Price
Common parts
93315-14016
93319-14010
93510-13008
