FJ70R-KR (1984)
Toyota Land Cruiser
(8411- )3F..GEN,ME,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-61033 |
3F..FJ7#..GEN,ME 12V 50A,12V 50A |
1 | ||
| 27020-61110 |
3F..FJ7#..(LX,STD)..(GEN,ME,SA) 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27039-18011 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27412-45070 |
3F..FJ7# 12V 50A,55A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27310-26101 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ7# 12V 45A,50A,55A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10126 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27330-45020 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10111 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-24100 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27359-13050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
3F..FJ7#..(LX,STD)..(GEN,ME) 12V 45A |
1 | ||
| 27362-15021 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27410-41080 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ7# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
(8411-8510)3F ; (8510- )3F..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-61033 |
3F..FJ7#..GEN,ME 12V 50A,12V 50A |
1 | ||
| 27020-61110 |
3F..FJ7#..(LX,STD)..(GEN,ME,SA) 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27039-18011 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27412-45070 |
3F..FJ7# 12V 50A,55A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27310-26101 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ7# 12V 45A,50A,55A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10126 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27330-45020 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10111 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-24100 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27359-13050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F..FJ7# 12V 50A,55A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
3F..FJ7#..(LX,STD)..(GEN,ME) 12V 45A |
1 | ||
| 27362-15021 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27410-41080 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ7# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-06005 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(8510- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-61033 |
3F..FJ7#..GEN,ME 12V 50A,12V 50A |
1 | ||
| 27020-61110 |
3F..FJ7#..(LX,STD)..(GEN,ME,SA) 12V 45A,12V 45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27412-45070 |
3F..FJ7# 12V 50A,55A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27310-26101 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ7# 12V 45A,50A,55A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10126 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27330-45020 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 90099-10111 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A,50A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-24100 |
3F..FJ7# 12V 50A,55A |
1 | ||
| 27359-13050 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 40A,45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F..FJ7# 12V 50A,55A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
3F..FJ7#..(LX,STD)..(GEN,ME) 12V 45A |
1 | ||
| 27362-15021 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
22R..RJ70;3F..FJ7#..GEN,ME,SA 12V 45A |
1 | ||
| 27410-41080 |
3F..FJ7#..GEN,ME 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
3F..FJ7# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R,3F..FJ7#,RJ70 12V 40A,45A,50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
22R,3B,3F,2H,2L..BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10033 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||

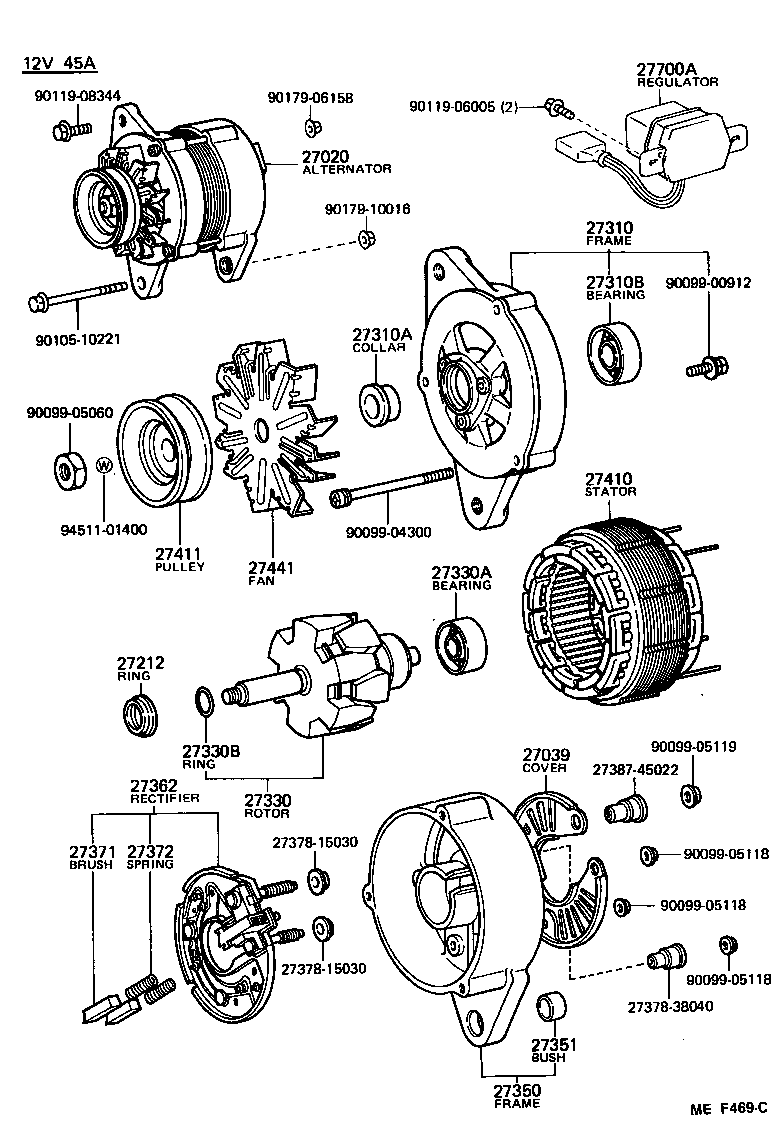

(9001-9604)3F..GCC,GEN,SA
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45110 | ||||
| 28387-34022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||

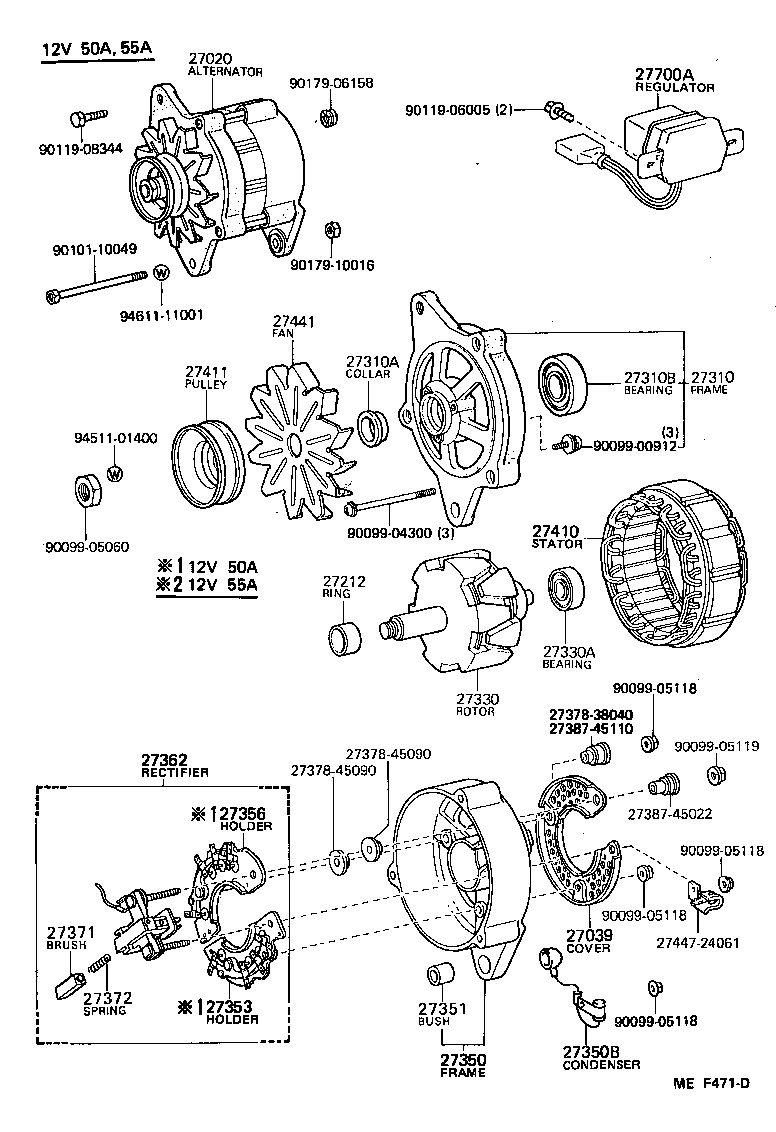

(9001-9604)3F..GCC,GEN,SA
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-34022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||

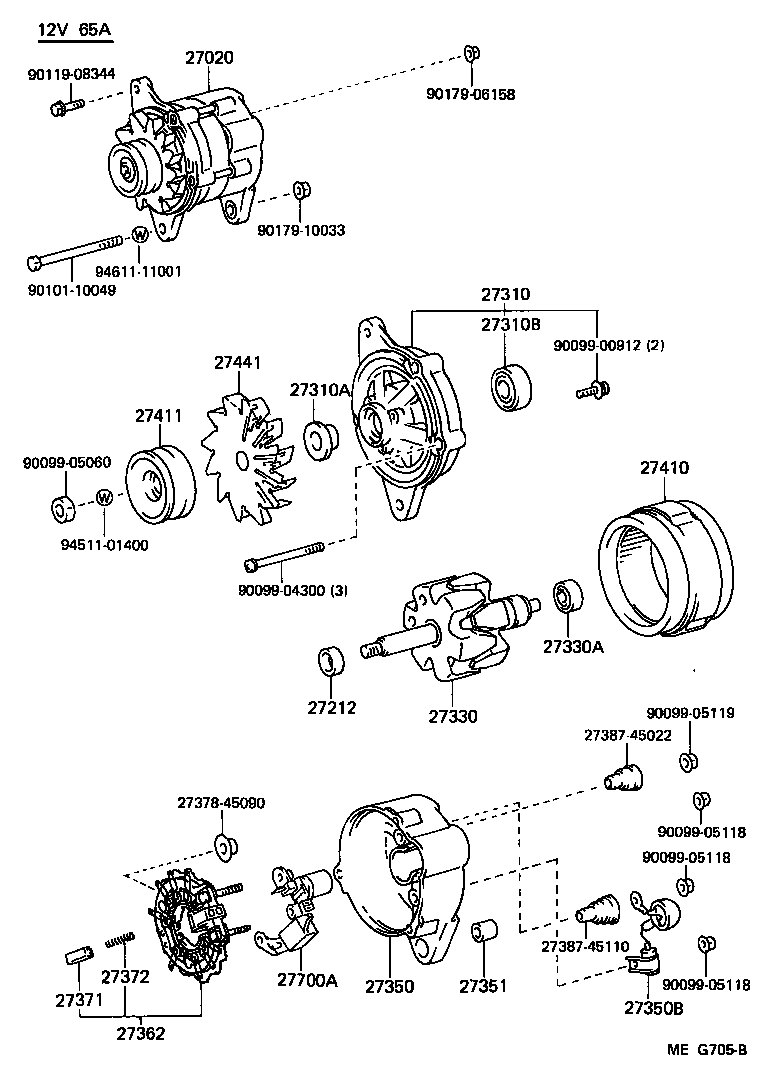

(9001-9604)3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
