FJ70LV-PRV (1984)
Toyota Land Cruiser

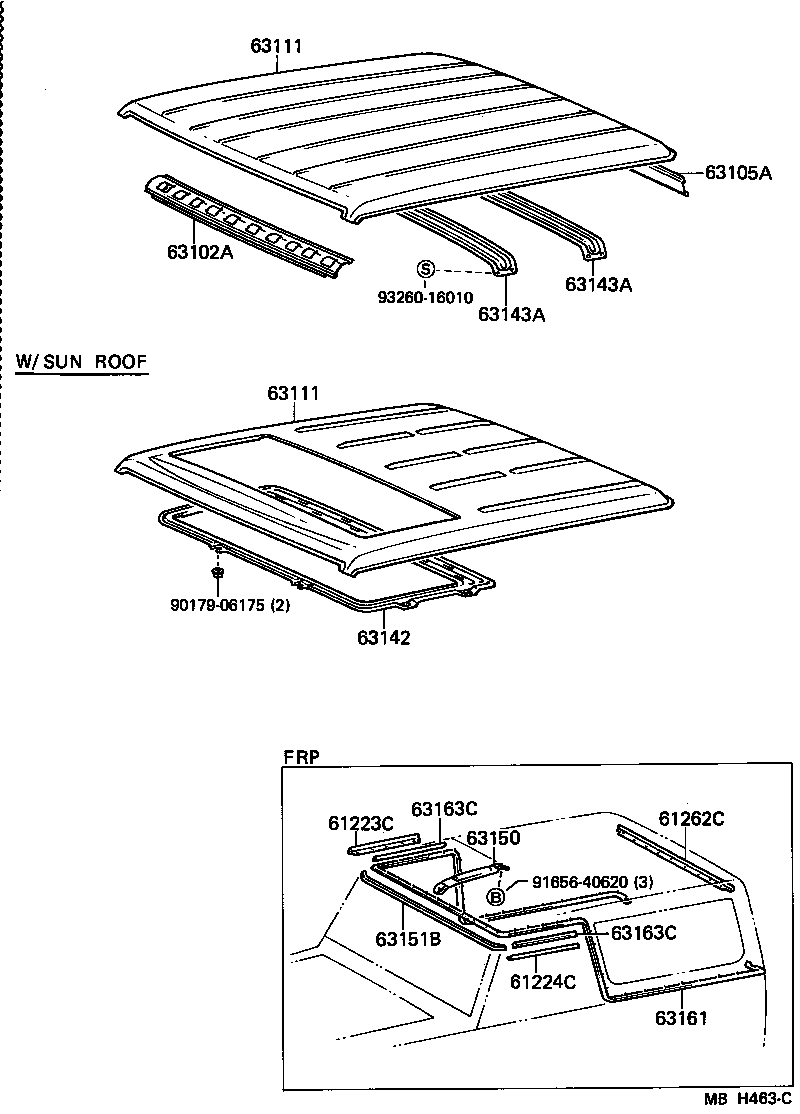

ILLUST NO. 1 OF 3(8411- )BJ70,73,FJ70,73,LJ70,RJ70..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K03 |
BJ70,FJ70,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 63111-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63111-90K03 |
BJ70,FJ70..HT..(GEN,ME) W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K03 |
BJ70,FJ70,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 63111-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63111-90K03 |
BJ70,FJ70..HT..(GEN,ME) W/SUN ROOF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63142-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63141-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
2 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63141-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
2 | ||
| Common parts | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
ILLUST NO. 2 OF 3(8411- )BJ70,FJ70,LJ70,RJ70..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63201-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63250-90K00 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63250-90K00 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-22010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63207-22010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-22010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63208-22010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63209-90A01 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63209-90A01 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,FJ70,LJ70,RJ70..HT RR;FR |
2 | ||
| 63249-90K02 |
BJ70,FJ70..HT..(GEN,ME) RR |
2 | ||
| 63249-90K00 |
BJ70,FJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K03 |
BJ70,FJ70..HT..(GEN,ME) FR |
2 | ||
| 63249-90K01 |
BJ70,FJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,FJ70,LJ70,RJ70..HT RR;FR |
2 | ||
| 63249-90K02 |
BJ70,FJ70..HT..(GEN,ME) RR |
2 | ||
| 63249-90K00 |
BJ70,FJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K03 |
BJ70,FJ70..HT..(GEN,ME) FR |
2 | ||
| 63249-90K01 |
BJ70,FJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,FJ70,LJ70,RJ70..HT RR;FR |
2 | ||
| 63249-90K02 |
BJ70,FJ70..HT..(GEN,ME) RR |
2 | ||
| 63249-90K00 |
BJ70,FJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K03 |
BJ70,FJ70..HT..(GEN,ME) FR |
2 | ||
| 63249-90K01 |
BJ70,FJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,FJ70,LJ70,RJ70..HT RR;FR |
2 | ||
| 63249-90K02 |
BJ70,FJ70..HT..(GEN,ME) RR |
2 | ||
| 63249-90K00 |
BJ70,FJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K03 |
BJ70,FJ70..HT..(GEN,ME) FR |
2 | ||
| 63249-90K01 |
BJ70,FJ70,LJ70,RJ70..HT RR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-22010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63221-22010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63223-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63224-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63251-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-22020 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63255-22020 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-22020 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63255-22020 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-90A02 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63260-90A02 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-22010 |
BJ70,FJ70,LJ70,RJ70..HT |
2 | ||
| 63261-22010 |
BJ70,FJ70..HT..(GEN,ME) |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63267-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
1 | ||
| 63268-30010 |
BJ70,FJ70..HT..(GEN,ME) |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-30010 |
BJ70,FJ70,LJ70,RJ70..HT |
2 | ||
| 63269-30010 |
BJ70,FJ70..HT..(GEN,ME) |
2 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-30010 |
BJ70,FJ70,LJ70,RJ70..HT 73X28,T=1.0 |
1 | ||
| 63277-14020 |
BJ70,FJ70..HT..(GEN,ME) 48X28,T=1.0 |
1 | ||
| 63277-14020 |
BJ70,FJ70,LJ70,RJ70..HT 48X28,T=1.0 |
1 | ||
| 63277-30010 |
FJ70,RJ70..HT..(GEN,ME) 73X28,T=1.0 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-30010 |
BJ70,FJ70,LJ70,RJ70..HT 73X28,T=1.0 |
1 | ||
| 63277-14020 |
BJ70,FJ70..HT..(GEN,ME) 48X28,T=1.0 |
1 | ||
| 63277-14020 |
BJ70,FJ70,LJ70,RJ70..HT 48X28,T=1.0 |
1 | ||
| 63277-30010 |
FJ70,RJ70..HT..(GEN,ME) 73X28,T=1.0 |
1 | ||
| Common parts | ||||
| 90159-60219 | ||||
| 90162-50004 | ||||
| 90179-06070 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-10076 | ||||
| 90467-11085 | ||||
| 90467-14044 | ||||
| 93382-16012 | ||||
| 93560-54010 | ||||
| 96160-00400 | ||||

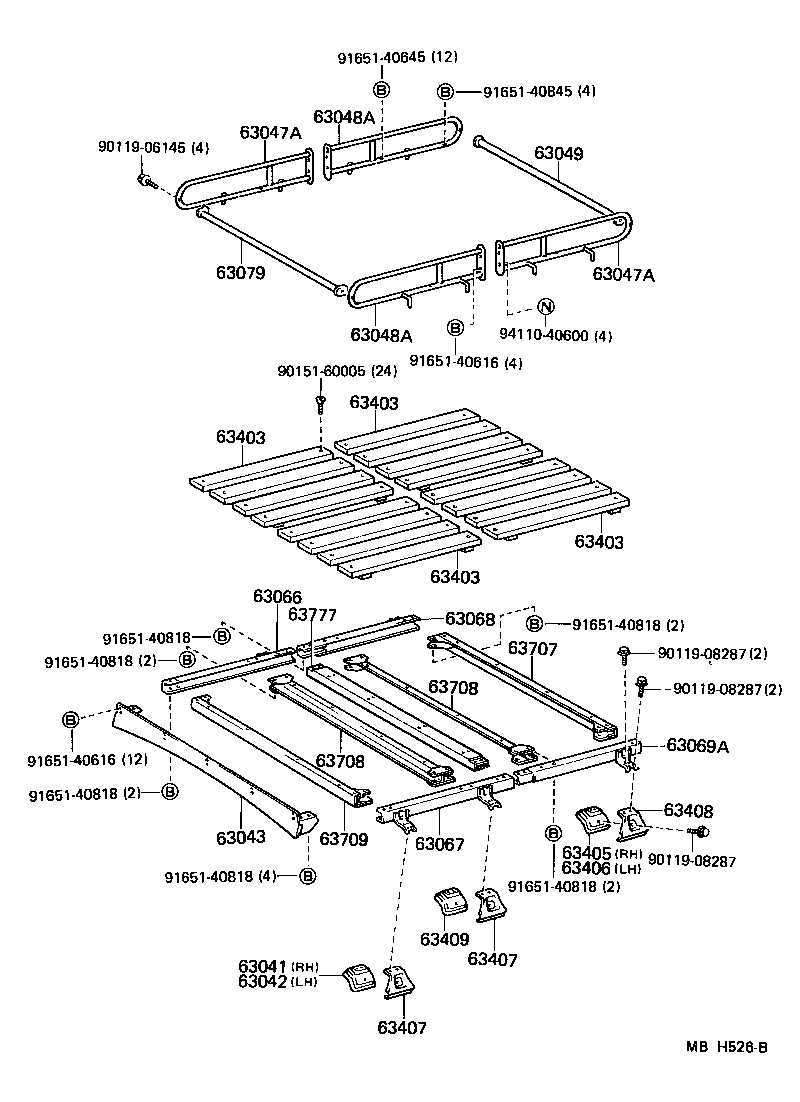

ILLUST NO. 3 OF 3(8411-8608)BJ70,FJ70,LJ70,RJ70..HT..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63043 - PANEL SUB-ASSY, ROOF RACK WIND DEFLECTOR | ||||
| 63043-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63047A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1 | ||||
| 63047-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63047A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.1 | ||||
| 63047-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63048A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2 | ||||
| 63048-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63048A - FRAME SUB-ASSY, ROOF RACK RAIL, UPPER NO.2 | ||||
| 63048-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90A00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63079-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63408 - SUPPORT SUB-ASSY, ROOF RACK LEG, REAR | ||||
| 63408-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63707-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63709-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63777 - FRAME, ROOF RACK, LOWER CENTER | ||||
| 63706-90A00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90119-06145 | ||||
| 90119-08287 | ||||
| 90151-60005 | ||||
| 91651-40616 | ||||
| 91651-40645 | ||||
| 91651-40818 | ||||
| 91651-40845 | ||||
| 94110-40600 | ||||
ILLUST NO. 3 OF 3(8608- )BJ70,FJ70,LJ70,RJ70..HT..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90A00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63079 - FRAME SUB-ASSY, ROOF RACK, UPPER FRONT | ||||
| 63079-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
4 | ||
| 63408 - SUPPORT SUB-ASSY, ROOF RACK LEG, REAR | ||||
| 63408-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-90K00 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63707-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63709-90A01 |
BJ70,FJ70,LJ70,RJ70..HT..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90119-06143 | ||||
| 90119-06347 | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
