FJ70LV-PRV (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1988
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

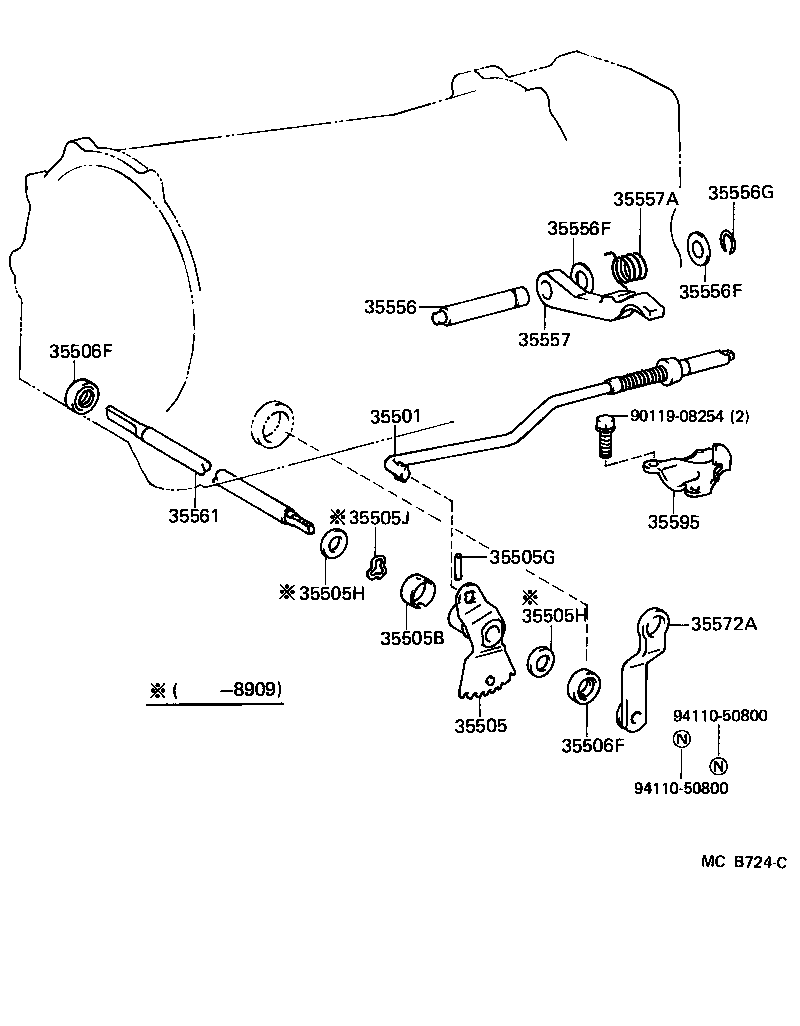

ILLUST NO. 1 OF 2(8411- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-36010 |
BJ74,FJ70,73..4FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-36010 |
BJ74,FJ70,73..4FC |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20008 |
BJ74,FJ70,73..4FC |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04012 |
BJ74,FJ70,73..4FC |
1 | ||
| 35505H - WASHER, PLATE (FOR MANUAL VALVE LEVER) | ||||
| 90201-12042 |
BJ74,FJ70,73..4FC |
2 | ||
| 35505H - WASHER, PLATE (FOR MANUAL VALVE LEVER) | ||||
| 90201-12042 |
BJ74,FJ70,73..4FC |
2 | ||
| 35505J - WASHER, WAVE (FOR MANUAL VALVE LEVER) | ||||
| 90206-12001 |
BJ74,FJ70,73..4FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
BJ74,FJ70,73..4FC |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
BJ74,FJ70,73..4FC |
2 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-60010 |
BJ74,FJ70,73..4FC |
1 | ||
| 35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90201-16012 |
BJ74,FJ70,73..4FC |
2 | ||
| 35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90201-16012 |
BJ74,FJ70,73..4FC |
2 | ||
| 35556G - RING, SNAP (FOR PARKING LOCK PAWL SHAFT) | ||||
| 96150-01600 |
BJ74,FJ70,73..4FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-36010 |
BJ74,FJ70,73..4FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-30004 |
BJ74,FJ70,73..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-60010 |
BJ74,FJ70,73..4FC |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-60010 |
FJ70,73..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-36010 |
BJ74,FJ70,73..4FC |
1 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94110-50800 | ||||

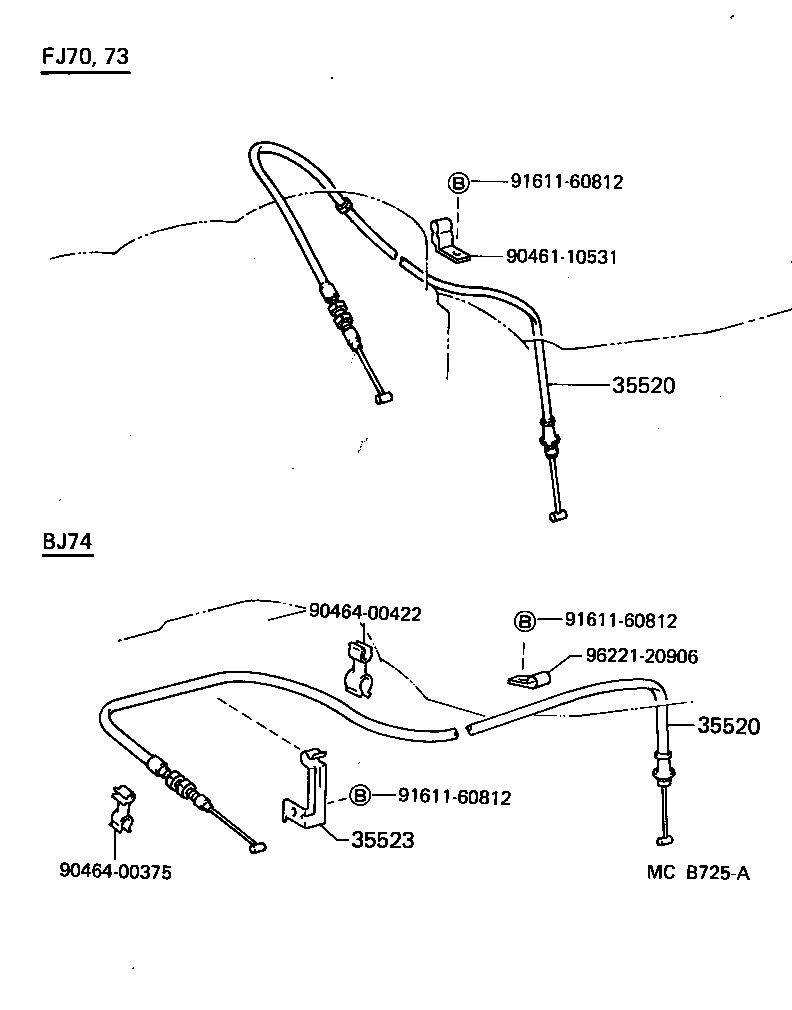

ILLUST NO. 2 OF 2(8411- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-60010 |
FJ70,73..4FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-60010 |
FJ70,73..4FC |
1 | ||
| Common parts | ||||
| 90461-10531 | ||||
| 90464-00375 | ||||
| 90464-00422 | ||||
| 91611-60812 | ||||
| 96221-20906 | ||||
ILLUST NO. 1 OF 2(9001-9201)4FC
Click highlighted areas on diagram
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08254 | ||||
| 94110-50800 | ||||
ILLUST NO. 2 OF 2(9001-9201)4FC
Click highlighted areas on diagram
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-10531 | ||||
| 91611-60812 | ||||
