FJ70L-MR (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ70,FJ70,LJ70,RJ70

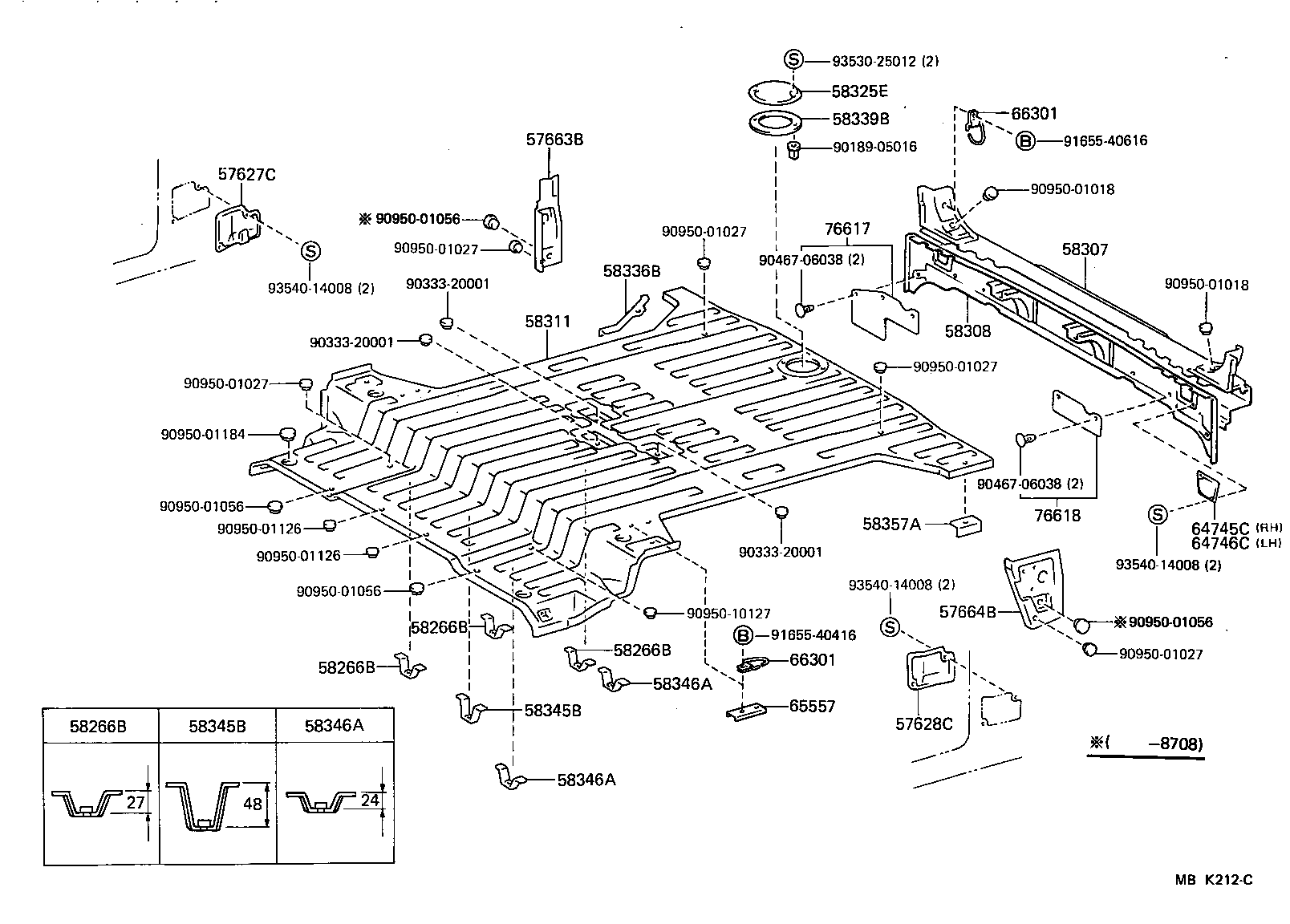

Click highlighted areas on diagram

diagram 57627C 57628C 57663B 57664B 58266B 58266B 58266B 58266B 58307 58308 58311 58325E 58336B 58339B 58345B 58345B 58346A 58346A 58346A 58357A 64745C 64746C 65557 66301 66301 76617 76618 9018905016 9033320001 9033320001 9033320001 9046706038 9046706038 9095001018 9095001018 9095001027 9095001027 9095001027 9095001027 9095001027 9095001056 9095001056 9095001056 9095001056 9095001126 9095001126 9095001184 9095010127 9165540416 9165540616 9353025012 9354014008 9354014008 9354014008
Part # Description Qty Price
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-90K00

BJ70,FJ70,LJ70,RJ70

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-90K00

BJ70,FJ70,LJ70,RJ70

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
57664-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
57664-90K02

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ70,FJ70,LJ70,RJ70

 2
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ70,FJ70,LJ70,RJ70

 2
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ70,FJ70,LJ70,RJ70

 2
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ70,FJ70,LJ70,RJ70

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-90K00

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
58307-90K01

BJ70,73,74,FJ70,73,LJ70,RJ70

W/RR MAT

 1
58307-90K11

BJ70,73,74,FJ70,73,LJ70,RJ70

W/RR MAT,ROPE HOOK

 1
58307-90K10

BJ70,73,74,FJ70,73,LJ70,RJ70

W/ROPE HOOK

 1
58307-90K13

FJ70..SOT..5F..GEN

VENEZUELA SPEC

 1
58307-90K17

BJ70,73,74,FJ70,73,LJ70,RJ70

 1
58307-90K13

FJ70..SOT..5F..GEN

W/SUB TANK

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-90K00

BJ70,73,FJ70,73,LJ70,RJ70

 1
58311 - PAN, REAR FLOOR
58311-90K00

BJ70,FJ70,LJ70,RJ70

 1
58311-90K02

BJ70,FJ70,LJ70,RJ70

W/*FFRS,RR SEAT BELT

 1
58311-90K00

BJ70,FJ70,RJ70

 1
58311-90K02

BJ70,FJ70,LJ70,RJ70..GEN,ME

W/*FFRS,RR SEAT BELT

 1
58311-90K00

BJ70,FJ70,LJ70,RJ70..GEN,ME

 1
58311-90K08

BJ70,FJ70,RJ70..GEN,ME

W/*FFRS,W/O RR SEAT BELT

 1
58311-90K00

BJ70,FJ70,LJ70,RJ70..STD..(GEN,ME)

 1
58311-90K08

FJ70..SOT..5F..GEN

VENEZUELA SPEC

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ70,FJ70,LJ70,RJ70

 2
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ70,FJ70,LJ70,RJ70

 2
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ70,FJ70,LJ70,RJ70

 2
58357A - REINFORCEMENT, JACK CARRIER
58357-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
58357-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
64745C - COVER, LOWER BACK SERVICE HOLE, RH
64745-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
64746C - COVER, LOWER BACK SERVICE HOLE, LH
64746-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
65557 - RETAINER, ROPE HOOK
65557-90K00

BJ70,FJ70,RJ70..GEN,ME

 2
65557-90K00

BJ70,FJ70,LJ70,RJ70..STD..(GEN,ME)

 2
66301 - HOOK SUB-ASSY, ROPE
66301-90K00

BJ70,FJ70,LJ70,RJ70..GEN

 4
66301-90K00

BJ70,FJ70,LJ70,RJ70..STD..(GEN,ME)

W/PARALLEL SEAT

 4
66301 - HOOK SUB-ASSY, ROPE
66301-90K00

BJ70,FJ70,LJ70,RJ70..GEN

 4
66301-90K00

BJ70,FJ70,LJ70,RJ70..STD..(GEN,ME)

W/PARALLEL SEAT

 4
76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH
76617-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
76617-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH
76618-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
76618-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT

 1
Common parts
90189-05016
90333-20001
90467-06038
90950-01018
90950-01027
90950-01056
90950-01126
90950-01184
90950-10127
91655-40416
91655-40616
93530-25012
93540-14008

(9001-9908)FJ70,FZJ70,HZJ70,KZJ70,LJ70,72,PZJ70,RJ70 ; (9908-0701)FZJ70,HZJ70,71 ;

Click highlighted areas on diagram

diagram 57627C 57628C 57663B 57664B 58011A 58012A 58247C 58248C 58266B 58266B 58266B 58267A 58307 58308 58311 58325E 58336B 58339B 58346A 58346A 58346A 58351B 58352B 58357A 58379C 64745C 64746C 65557 65557 66301 66301 66301C 66301C 7441360070 7445360070 76617 76618 9015940223 9015940223 9015940223 9018905016 9033320001 9033320001 9033320001 9033320001 904670502001 904670502001 9046705161C0 9046705161C0 9095001027 9095001027 9095001027 9095001027 9095001027 9095001126 9095001126 9095001759 9095001759 9095001826 9095001826 9095001882 9095001948 9095001955 91511B0620 91511B0620 9353015014 9353025012
Part # Description Qty Price
Common parts
74413-60070
74453-60070
90159-40223
90189-05016
90333-20001
90467-0502001
90467-05161C0
90950-01027
90950-01126
90950-01759
90950-01826
90950-01882
90950-01948
90950-01955
91511-B0620
93530-15014
93530-25012

(9001-9908)FJ75,FZJ75,HJ75,HZJ75,PZJ75 ; (9908-0701)FZJ75,HDJ7#,HZJ75,78,79 ; (9908

Click highlighted areas on diagram

diagram 57023A 57024A 57663B 57664B 57769 57882 58011A 58012A 58037A 58037A 58169F 58307 58308 58311 58325E 58325F 58336B 58339B 58339C 58357A 58379C 64745C 64746C 76617 76618 9004463020 9018905016 9018905016 9033320001 9033320001 9033320001 9046308063 904670502001 904670502001 9046705161C0 9046705161C0 9046708029 9095001011 9095001056 9095001126 9095001759 9095001882 9095001882 9095001882 9095001882 9095001948 9095001955 9095001955 9353015014 9353015014 9353025012 9353025012 9354014008 9356014010
Part # Description Qty Price
Common parts
90044-63020
90189-05016
90333-20001
90463-08063
90467-0502001
90467-05161C0
90467-08029
90950-01011
90950-01056
90950-01126
90950-01759
90950-01882
90950-01948
90950-01955
93530-15014
93530-25012
93540-14008
93560-14010
