FJ62RV-PCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62..4FC

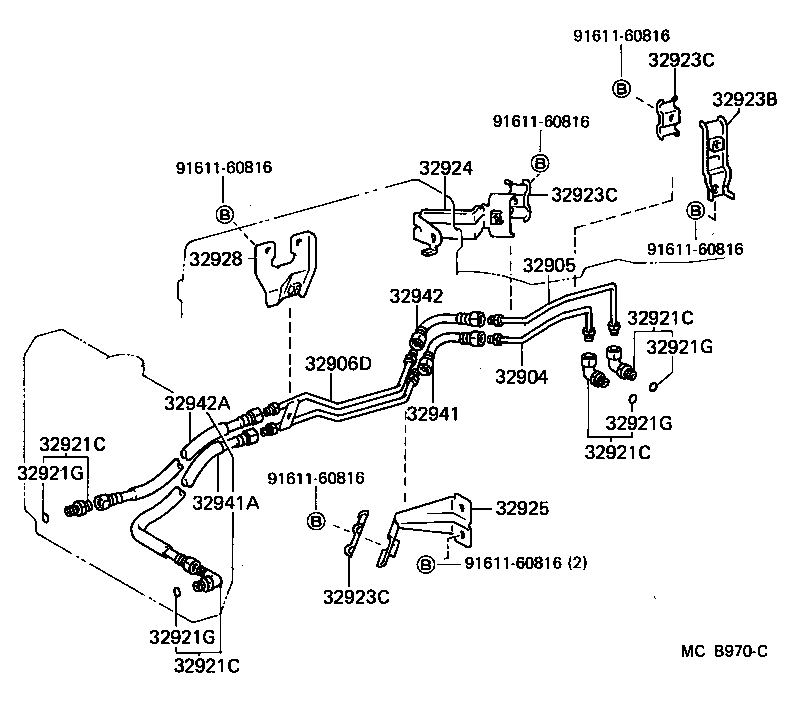

Click highlighted areas on diagram

diagram 32904 32905 32906D 32921C 32921C 32921C 32921C 32921G 32921G 32921G 32921G 32923B 32923C 32923C 32923C 32924 32925 32928 32941 32941A 32942 32942A 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816
Part # Description Qty Price
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32904-60011

FJ62..4FC

 1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32905-60011

FJ62..4FC

 1
32906D - TUBE SUB-ASSY, OIL COOLER, NO.2
32906-60010

FJ62..4FC

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32941-60030

FJ62..4FC

 1
Common parts
91611-60816
