FJ62RV-MCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

(8411- )FJ62..RHD

Click highlighted areas on diagram

diagram 88460 88467 8846714040 88470 88472 88479 8856930430 8868890A05 88711 88712 88714 88716A 88716B 8871887043 8871890A04 8871890A22 88891A 9009932073 9011908301 9017906070 9017906115 9046108877 9048001345 9048026003 9048036003 9161160835 9165140616 9165140616 9165140616 9165140816 9165140816 9338516014
Part # Description Qty Price

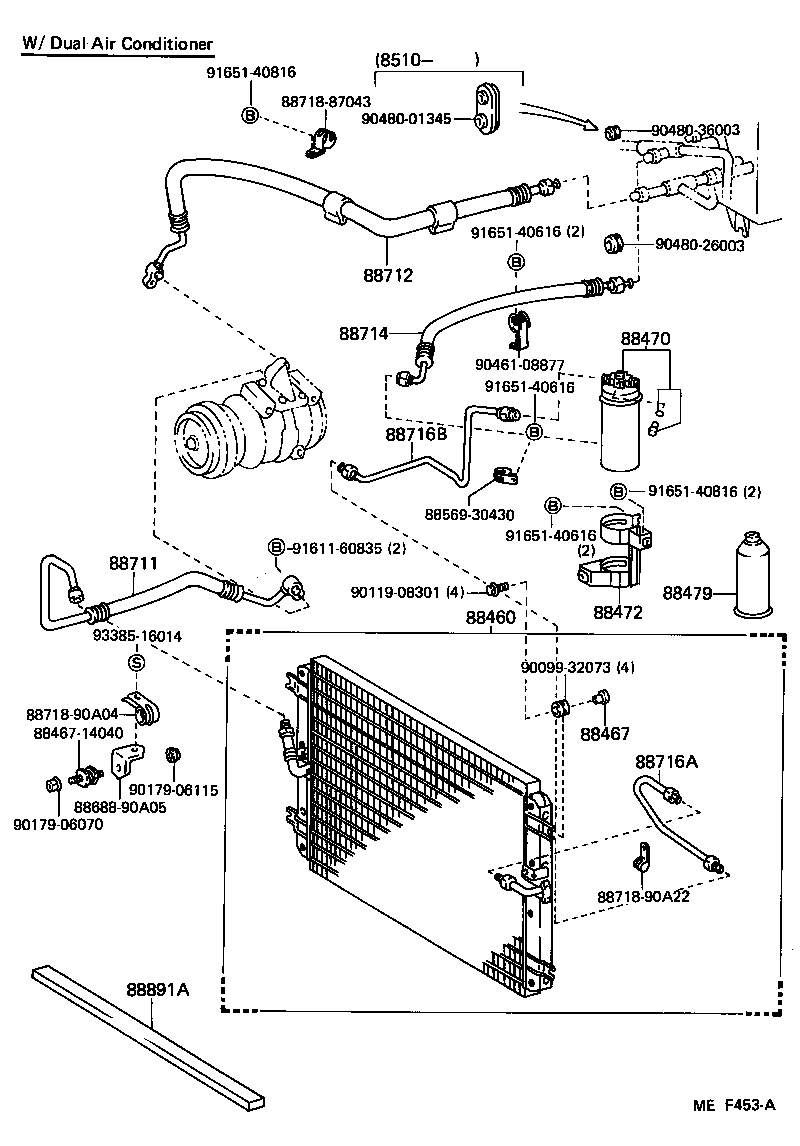

88460 - CONDENSER ASSY, COOLER
88460-90A02

FJ62..ARL

W/*ODAC

 1
88460-90A10

FJ62..ARL

 1
88460-90A06

FJ62..ARL

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88469-22010

BJ60,FJ62,HJ6#..ARL,GEN,ME

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

FJ62,HJ6#..ARL,GEN

W/*ODAC

 1
88470-14010

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-90A04

FJ62,HJ6#..RHD..(ARL,GEN)

W/*ODAC

 1
88472-90A00

BJ60,FJ6#,HJ60..RHD..(ARL,GEN)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

HJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME

400G

 2
90986-02001

BJ60,FJ6#,HJ6#..ARL,GEN,ME

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90A04

FJ62

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90A08

FJ62..RHD

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90A05

FJ62,HJ60..ARL

 1
88721-90A05

FJ62..ARL

 1
88721-90A09

FJ62,HJ6#..RHD..(ARL,GEN)

W/*ODAC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-90A06

BJ60,FJ62..RHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-90A10

FJ62,HJ6#..RHD..(ARL,GEN)

 1
88891A - PACKING A (FOR COOLER)
88578-90A02

FJ62

 1
88578-90A01

FJ62..ARL

 1
Common parts
88467-14040
88569-30430
88688-90A05
88718-87043
88718-90A04
88718-90A22
90099-32073
90119-08301
90179-06070
90179-06115
90461-08877
90480-01345
90480-26003
90480-36003
91611-60835
91651-40616
91651-40816
93385-16014

(8411- )FJ62,HJ6#..RHD

Click highlighted areas on diagram

diagram 88386B 88386C 88386D 88386E 88387A 88387B 88387C 88387D 8846922010 88645H 8866890A00 8866890A00 8866890A00 8866890A00 8866890A00 8868890A10 8868890A11 8868890A14 8868890A15 8868890A16 8868890A17 8868890A18 8868890A19 8868890A20 88691W 88711A 88711C 88713 88713A 88716C 88716E 8871890A07 8871890A08 8871890A09 8871890A10 8871890A10 8871890A10 8871890A10 8871890A11 8871890A13 8871890A13 8871890A19 8871890A20 8871890A21 8871890A24 8871890A25 8871890A25 8871890K15 9009932073 9017908146 9017908146 9046312014 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165140616 9165140816 9165140816 9165140816 9165140816 9166540616 9166540616 9338518030
Part # Description Qty Price
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88716-90A13

FJ62,HJ60..RHD..(ARL,GEN)

 1
88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C
88716-90A38

FJ62,HJ6#..ARL,GEN

 1
88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D
88716-90A39

FJ62,HJ61..ARL,GEN;HJ60..MTM..(ARL,GEN)

 1
88716-90A20

FJ62,HJ6#..ARL,GEN

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88716-90A30

FJ62,HJ6#..ARL,GEN

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88717-90A07

FJ62,HJ6#..ARL,GEN

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88717-90A15

FJ62,HJ61..ARL,GEN;HJ60..MTM..(ARL,GEN)

 1
88717-90A05

FJ62,HJ6#..ARL,GEN

 1
88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C
88717-90A14

FJ62,HJ6#..ARL,GEN

 1
88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D
88717-90A00

FJ62,HJ60..RHD..(ARL,GEN)

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

FJ62,HJ6#..ARL,GEN

 1
88691W - VALVE, MAGNET
88690-90A06

FJ62,HJ6#..ARL,GEN

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88721-90A13

FJ62,HJ6#..ARL,GEN

 1
88721-90A17

FJ62,HJ61..ARL,GEN;HJ60..MTM..(ARL,GEN)

 1
88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3
88721-90A15

FJ62,HJ6#..ARL,GEN

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-90A24

FJ62,HJ6#..ARL,GEN

 1
88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3
88712-90A17

FJ62,HJ6#..ARL,GEN

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-90A21

FJ62,HJ6#..RHD..(ARL,GEN)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90A17

FJ62,HJ6#..RHD..(ARL,GEN)

 1
Common parts
88469-22010
88668-90A00
88688-90A10
88688-90A11
88688-90A14
88688-90A15
88688-90A16
88688-90A17
88688-90A18
88688-90A19
88688-90A20
88718-90A07
88718-90A08
88718-90A09
88718-90A10
88718-90A11
88718-90A13
88718-90A19
88718-90A20
88718-90A21
88718-90A24
88718-90A25
88718-90K15
90099-32073
90179-08146
90463-12014
91616-40820
91651-40616
91651-40816
91665-40616
93385-18030

(8411- )FJ62..RHD

Click highlighted areas on diagram

diagram 8271112200 88460 88460 88467 8846714040 88470 88470B 88472 88479 8868890A05 88711 88712 8871230290 8871230290 88714 88714A 88716A 8871887043 8871887043 8871890A04 8871890A16 8871890A22 8871895741 8871895741 88891A 9009120808 9009932073 9011908301 9015940614 9017906032 9017906070 9017906115 9048001345 9048026003 9048036003 9161160835 9165140616 9165140816 9165160816 9338516014 9338518016
Part # Description Qty Price

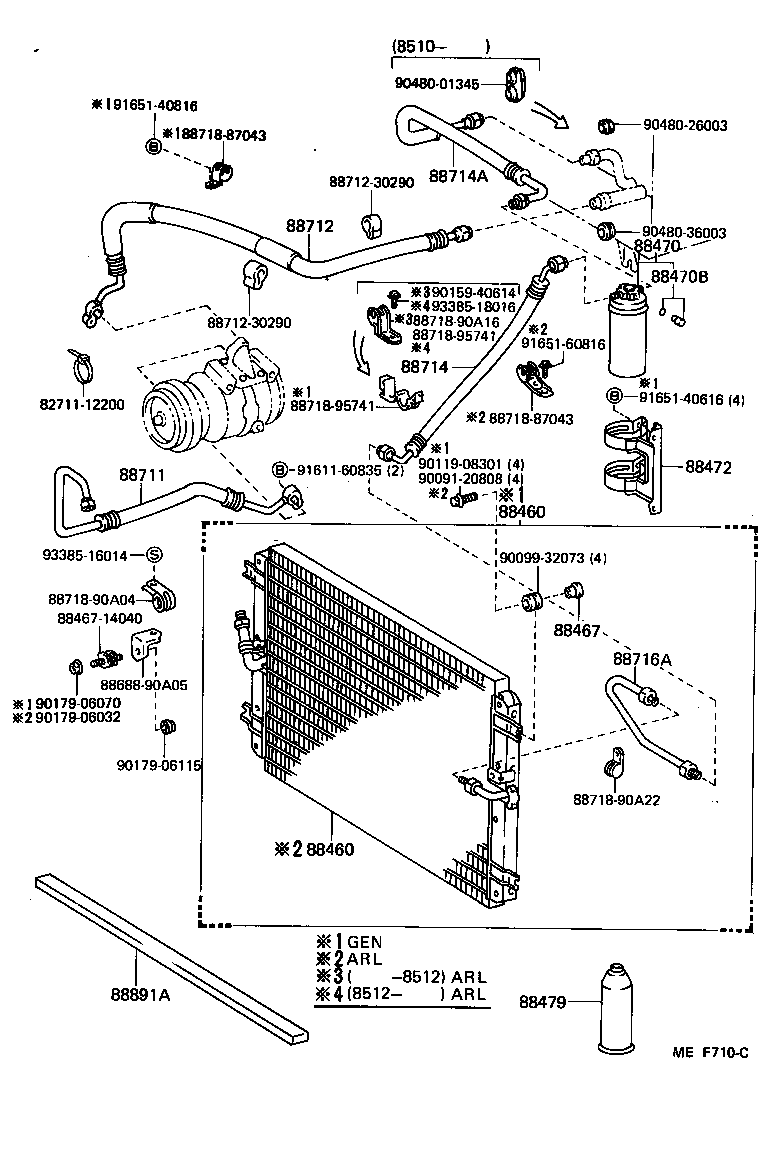

88460 - CONDENSER ASSY, COOLER
88460-90A02

FJ62..ARL

W/*ODAC

 1
88460-90A10

FJ62..ARL

 1
88460-90A06

FJ62..ARL

 1
88460 - CONDENSER ASSY, COOLER
88460-90A02

FJ62..ARL

W/*ODAC

 1
88460-90A10

FJ62..ARL

 1
88460-90A06

FJ62..ARL

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88469-22010

BJ60,FJ62,HJ6#..ARL,GEN,ME

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

FJ62,HJ6#..ARL,GEN

W/*ODAC

 1
88470-14010

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 1
88470B - BOLT, FUSE
90099-04579

BJ60,FJ6#,HJ60..ARL,GEN,ME

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-90A04

FJ62,HJ6#..RHD..(ARL,GEN)

W/*ODAC

 1
88472-90A00

BJ60,FJ6#,HJ60..RHD..(ARL,GEN)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

HJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME

400G

 2
90986-02001

BJ60,FJ6#,HJ6#..ARL,GEN,ME

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90A04

FJ62

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90A08

FJ62..RHD

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90A05

FJ62,HJ60..ARL

 1
88721-90A05

FJ62..ARL

 1
88721-90A09

FJ62,HJ6#..RHD..(ARL,GEN)

W/*ODAC

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-90A01

BJ60,FJ6#,HJ6#..RHD..(ARL,GEN)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-90A06

BJ60,FJ62..RHD

 1
88891A - PACKING A (FOR COOLER)
88578-90A02

FJ62

 1
88578-90A01

FJ62..ARL

 1
Common parts
82711-12200
88467-14040
88688-90A05
88712-30290
88718-87043
88718-90A04
88718-90A16
88718-90A22
88718-95741
90091-20808
90099-32073
90119-08301
90159-40614
90179-06032
90179-06070
90179-06115
90480-01345
90480-26003
90480-36003
91611-60835
91651-40616
91651-40816
91651-60816
93385-16014
93385-18016

(8510- )FJ62,HJ6#

Click highlighted areas on diagram

diagram 88713B 88714J 88716H 88717B 8871890A13 8871890A26 8871890A27 9165140614 9165140614 9338516016
Part # Description Qty Price
Common parts
88718-90A13
88718-90A26
88718-90A27
91651-40614
93385-16016
