FJ62RV-MCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8510)SOB..ARL ; (8608- )SOB..GEN,ME

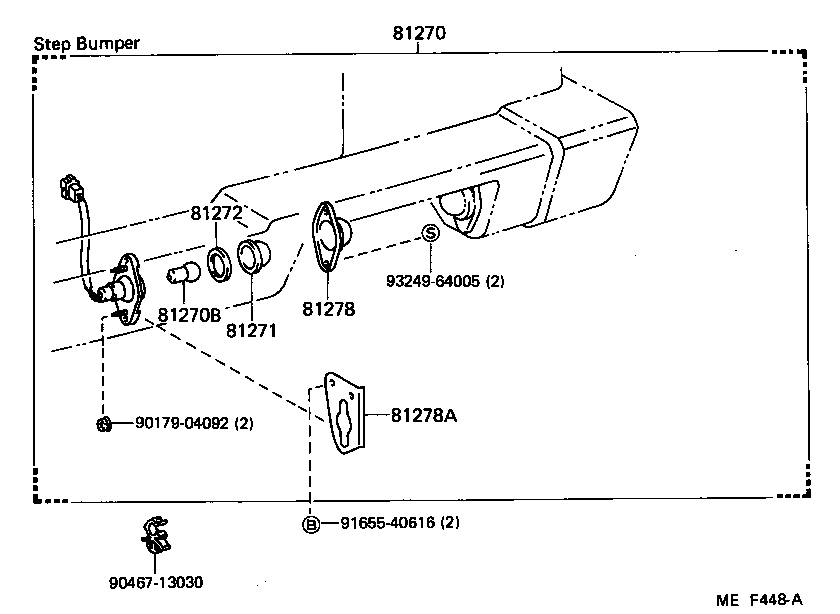

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 81278A 9017904092 9046713030 9165540616 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-69165

FJ62,HJ60..SOB..ARL

12V,STEP BUMPER,RH

 1
81690-69015

FJ62,HJ60..SOB..ARL

12V,STEP BUMPER,LH

 1
81270-69075

BJ60,FJ62,HJ60..SOB..(ARL,GEN,ME)

12V,DOOR

 1
81278 - COVER, LICENSE PLATE LAMP
81276-90A00

BJ60,FJ6#..SOB..(ARL,GEN,ME)

 1
81278A - BRACKET, LICENSE PLATE LAMP
81276-90K03

FJ62,HJ60..SOB..ARL

BUMPER,RH

 1
81696-90K00

FJ62,HJ60..SOB..ARL

BUMPER,LH

 1
Common parts
90179-04092
90467-13030
91655-40616
93249-64005
