FJ62RV-MCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71396A 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71610S 71620S 71705 71706 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72110A 72110E 72110F 72120 72130A 72130A 72137A 72137A 72137B 72138B 72140A 72157A 72158 72205D 72206B 72210B 72510A 72510B 72510D 72520D 72570B 72580A 73080A 73810A 73847B 74841B 74842B 74843A 74844A 9011908079 9011908079 9011908079 9011908301 9011908301 9011910560 9011910619 9011910708 9011910708 9011910896 9011910896 9011910896 9015940206 9015940269 9015940269 9016740044 9016740044 9016840011 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9046804006 9046804006 9052308001 9056218094 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10619
90119-10708
90119-10896
90159-40206
90159-40269
90167-40044
90168-40011
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90468-04006
90523-08001
90562-18094
93383-15012

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 58048A 71015 71017A 71033 71075B 71077B 71324A 71382A 71611 71651 71651B 71663 71671 71931A 71931A 71955A 71955A 72603 72604 72607 72645 72660A 72660A 72660E 72660E 72665 72666 72690A 72694 78910 78920 78935 78935 78935 78935 78950 79929 8271112120 9010511007 9011910035 9011910037 9011910101 9011910493 9015960108 9016840011 9016840011 9016840011 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9020411042 9024908141 9038710069 9038909005 9046708053 9165160620 9331316014 9331616014 9616000600
Part # Description Qty Price
Common parts
82711-12120
90105-11007
90119-10035
90119-10037
90119-10101
90119-10493
90159-60108
90168-40011
90183-08003
90202-08039
90204-11042
90249-08141
90387-10069
90389-09005
90467-08053
91651-60620
93313-16014
93316-16014
96160-00600

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 71033B 71034A 71085B 71086B 71088B 71089B 71700 71704 71704B 71710A 71720A 71721 71722 71761A 71761B 71800 7997760040 7997760040 9011908364 9024908141 9024908141 9050820072 9050820072 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08364
90249-08141
90508-20072
96160-00600

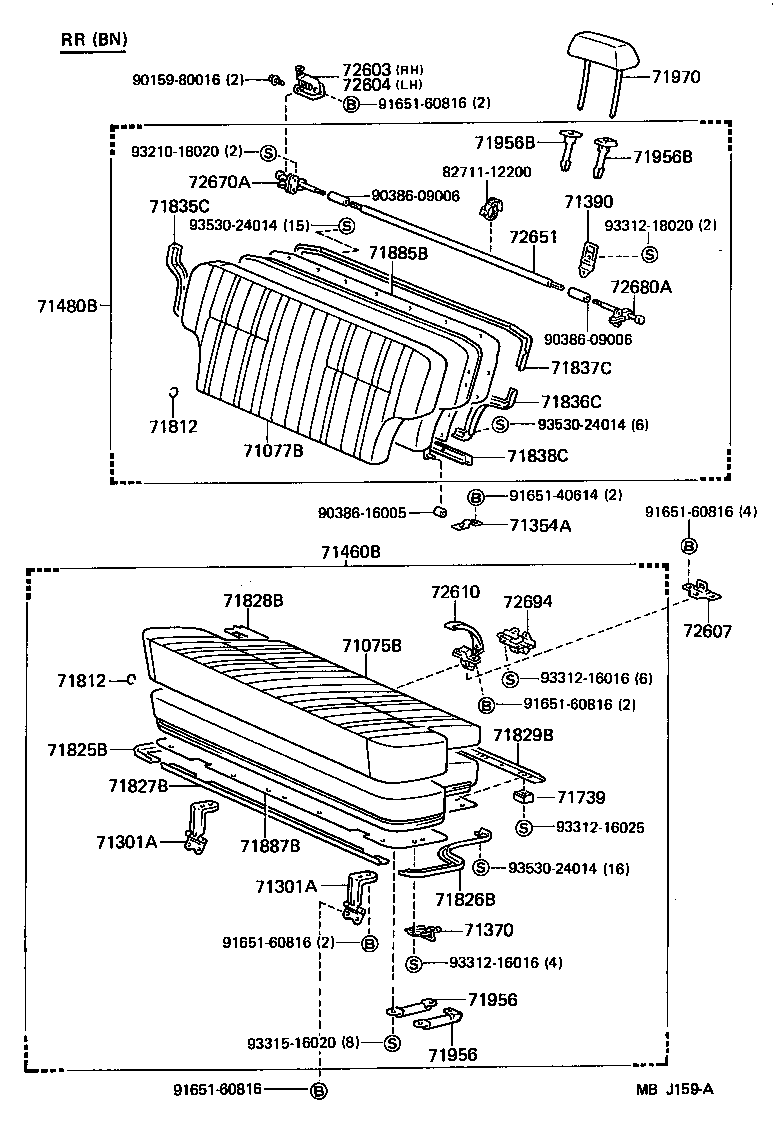

(8411-8504)

Click highlighted areas on diagram

diagram 71075B 71077B 71301A 71301A 71354A 71370 71390 71460B 71480B 71739 71812 71812 71825B 71826B 71827B 71828B 71829B 71835C 71836C 71837C 71838C 71885B 71887B 71956 71956 71956B 71956B 71970 72603 72604 72607 72610 72651 72670A 72680A 72694 8271112200 9015980016 9038609006 9038609006 9038616005 9165140614 9165160816 9165160816 9165160816 9165160816 9165160816 9321018020 9331216016 9331216016 9331216025 9331218020 9331516020 9353024014 9353024014 9353024014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-90A1416

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077-90A5206

FJ62,HJ60..SOB..ARL

PF,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71354A - PLATE, REAR SEAT BACK SET
71354-90A00

BJ60,FJ62,HJ6#

 2
71370 - BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER
71307-90A00

BJ60,FJ6#,HJ6#..WGV

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-90A2806

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,W/*HR,BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A6506

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A0116

BJ60,FJ62,HJ60..WGV..(ARL,EUR,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-90A0116

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/RR FLOOR MAT,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A0516

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2106

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/*HR,*RFM,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2306

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A4806

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5006

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5106

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0006

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0106

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0206

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71480-90G0306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71739 - CUSHION, SEAT SUPPORT
71739-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71827B - MOULDING, REAR SEAT CUSHION, FRONT
71827-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71835C - MOULDING, REAR SEAT BACK, RH
71835-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71836C - MOULDING, REAR SEAT BACK, LH
71836-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837C - MOULDING, REAR SEAT BACK, UPPER
71837-90A0016

BJ60,FJ62,HJ60..SOB

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0016

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0106

BJ60,FJ62,HJ6#..WGV

W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71838C - MOULDING, REAR SEAT BACK, LOWER
71838-90A0016

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71885B - MAT, REAR SEAT BACK
71885-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887B - MAT, REAR SEAT CUSHION
71887-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887-90A0303

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71970 - HEADREST ASSY, REAR SEAT
71910-90A0116

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71910-90A0103

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SHADOW GRAY,GRAY,TRIM1#

 2
71910-90A0103

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SHADOW GRAY,GRAY,TRIM1#

 1
71910-90A0116

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72630-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A13

FJ62,HJ60..ARL

SP

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-90A00

FJ6#,HJ60..SRF..(ARL,EUR)

 1
72607-90A00

FJ62,HJ6#..SRF..(ARL,EUR)

FOR BENCH TYPE

 1
72610 - LOCK ASSY, REAR SEAT CUSHION
72660-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH
72670-90A01

FJ62,HJ6#..SRF..ARL

 1
72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH
72680-90A01

FJ62,HJ6#..SRF..ARL

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
Common parts
82711-12200
90159-80016
90386-09006
90386-16005
91651-40614
91651-60816
93210-18020
93312-16016
93312-16025
93312-18020
93315-16020
93530-24014

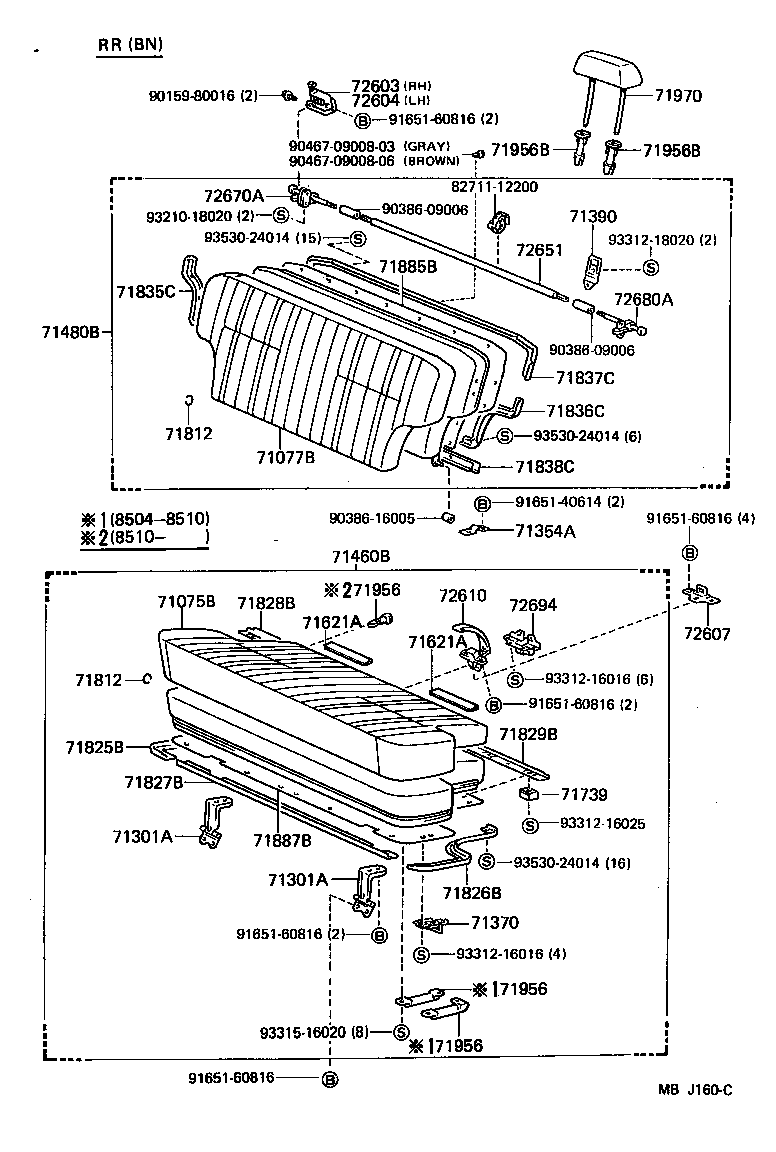

(8504-8510)

Click highlighted areas on diagram

diagram 71075B 71077B 71301A 71301A 71354A 71370 71390 71460B 71480B 71621A 71621A 71739 71812 71812 71825B 71826B 71827B 71828B 71829B 71835C 71836C 71837C 71838C 71885B 71887B 71956 71956 71956 71956B 71956B 71970 72603 72604 72607 72610 72651 72670A 72680A 72694 8271112200 9015980016 9038609006 9038609006 9038616005 904670900803 904670900806 9165140614 9165160816 9165160816 9165160816 9165160816 9165160816 9321018020 9331216016 9331216016 9331216025 9331218020 9331516020 9353024014 9353024014 9353024014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-90A1416

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077-90A5206

FJ62,HJ60..SOB..ARL

PF,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71354A - PLATE, REAR SEAT BACK SET
71354-90A00

BJ60,FJ62,HJ6#

 2
71370 - BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER
71307-90A00

BJ60,FJ6#,HJ6#..WGV

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-90A2806

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,W/*HR,BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A6506

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A0116

BJ60,FJ62,HJ60..WGV..(ARL,EUR,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-90A0116

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/RR FLOOR MAT,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A0516

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2106

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/*HR,*RFM,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2306

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A4806

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5006

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5106

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0006

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0106

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0206

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71480-90G0306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71521-90K00

FJ62,HJ6#..SRF..(ARL,EUR)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71521-90K00

FJ62,HJ6#..SRF..(ARL,EUR)

 2
71739 - CUSHION, SEAT SUPPORT
71739-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71827B - MOULDING, REAR SEAT CUSHION, FRONT
71827-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71835C - MOULDING, REAR SEAT BACK, RH
71835-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71836C - MOULDING, REAR SEAT BACK, LH
71836-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837C - MOULDING, REAR SEAT BACK, UPPER
71837-90A0016

BJ60,FJ62,HJ60..SOB

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0016

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0106

BJ60,FJ62,HJ6#..WGV

W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71838C - MOULDING, REAR SEAT BACK, LOWER
71838-90A0016

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71885B - MAT, REAR SEAT BACK
71885-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887B - MAT, REAR SEAT CUSHION
71887-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887-90A0303

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71970 - HEADREST ASSY, REAR SEAT
71910-90A0116

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71910-90A0103

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SHADOW GRAY,GRAY,TRIM1#

 2
71910-90A0103

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SHADOW GRAY,GRAY,TRIM1#

 1
71910-90A0116

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72630-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A13

FJ62,HJ60..ARL

SP

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-90A00

FJ6#,HJ60..SRF..(ARL,EUR)

 1
72607-90A00

FJ62,HJ6#..SRF..(ARL,EUR)

FOR BENCH TYPE

 1
72610 - LOCK ASSY, REAR SEAT CUSHION
72660-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH
72670-90A01

FJ62,HJ6#..SRF..ARL

 1
72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH
72680-90A01

FJ62,HJ6#..SRF..ARL

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
Common parts
82711-12200
90159-80016
90386-09006
90386-16005
90467-0900803
90467-0900806
91651-40614
91651-60816
93210-18020
93312-16016
93312-16025
93312-18020
93315-16020
93530-24014

(8510- )

Click highlighted areas on diagram

SUSPENSION SEAT

diagram 71394A 71394A 73800 73800 73847 73847 73888 73888 9011910406 9011910406
Part # Description Qty Price
Common parts
90119-10406

(8510- )

Click highlighted areas on diagram

SPORTS SEAT

diagram 71071S 71072S 71073S 71074S 71113 71114 71146 71146 71394A 71394A 71410S 71420S 71430S 71440S 71705 71705B 71705B 71706 71812 71812 71812 71812 71950 71956A 71956A 72011 72110S 72120S 72130S 72140S 72457A 72457C 72498 72520 72524 72524 72537 72538 72760A 9011908079 9011908079 9011908079 9011908079 9011908080 9011910037 9011910037 9011910406 9011910406 9011910406 9011910406 9014960050 9015480002 9015480004 9015940088 9015940088 9038612005 9038612005 9038708037 9038708038 9038908015 9052001002 9052001002 9052308001 9338616016 9354055010 9354055012 9616000800
Part # Description Qty Price
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-90A0016

FJ62,HJ6#..ARL

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71910-90A0003

FJ62,HJ6#..ARL

PF,SHADOW GRAY,GRAY,TRIM1#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002056

BJ60,FJ62,HJ6#

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71990-3002056

BJ60,FJ62,HJ6#

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002056

BJ60,FJ62,HJ6#

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71990-3002056

BJ60,FJ62,HJ6#

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-90A01

FJ62,HJ6#..SRF..ARL

BENCH SEAT

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401056

BJ60,FJ62,HJ6#

RH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72526-1401056

BJ60,FJ62,HJ6#

LH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401056

BJ60,FJ62,HJ6#

RH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72526-1401056

BJ60,FJ62,HJ6#

LH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72537 - COVER, RECLINING HINGE OUTER, RH
72551-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
72538 - COVER, RECLINING HINGE OUTER, LH
72552-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
Common parts
90119-08079
90119-08080
90119-10037
90119-10406
90149-60050
90154-80002
90154-80004
90159-40088
90386-12005
90387-08037
90387-08038
90389-08015
90520-01002
90523-08001
93386-16016
93540-55010
93540-55012
96160-00800

(8510- )

Click highlighted areas on diagram

SPORTS SEAT

diagram 71071S 71072S 71073S 71074S 71113 71114 71146 71146 71394A 71394A 71410S 71420S 71430S 71440S 71705 71705 71705B 71705B 71812 71812 71812 71812 71950 71956A 71956A 72110S 72120S 72130S 72140S 72457A 72510 72520 72524 72524 72537 72538 72760A 9011908079 9011908079 9011910037 9011910037 9011910406 9011910406 9011910406 9011910406 9014960050 9015480002 9015480004 9015940088 9015940088 9038612005 9038708037 9052001002 9338616016 9354055010 9354055012
Part # Description Qty Price
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-90A0016

FJ62,HJ6#..ARL

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71910-90A0003

FJ62,HJ6#..ARL

PF,SHADOW GRAY,GRAY,TRIM1#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002056

BJ60,FJ62,HJ6#

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71990-3002056

BJ60,FJ62,HJ6#

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002056

BJ60,FJ62,HJ6#

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71990-3002056

BJ60,FJ62,HJ6#

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90A00

FJ62,HJ6#..SRF..ARL

BENCH SEAT

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-90A01

FJ62,HJ6#..SRF..ARL

BENCH SEAT

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401056

BJ60,FJ62,HJ6#

RH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72526-1401056

BJ60,FJ62,HJ6#

LH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401056

BJ60,FJ62,HJ6#

RH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72526-1401056

BJ60,FJ62,HJ6#

LH,TYPE A,SEPIA BROWN,BROWN,TRIM4#

 1
72537 - COVER, RECLINING HINGE OUTER, RH
72551-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
72538 - COVER, RECLINING HINGE OUTER, LH
72552-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
Common parts
90119-08079
90119-10037
90119-10406
90149-60050
90154-80002
90154-80004
90159-40088
90386-12005
90387-08037
90520-01002
93386-16016
93540-55010
93540-55012

(8510- )

Click highlighted areas on diagram

diagram 71075B 71077B 71301A 71301A 71354A 71370 71390 71460B 71480B 71621A 71621A 71739 71812 71812 71825B 71826B 71827B 71828B 71829B 71835C 71836C 71837C 71838C 71885B 71887B 71956 71956 71956 71956B 71956B 71970 72603 72604 72607 72610 72645 72651 72670A 72680A 72694 8271112200 9015980016 9038609006 9038609006 9038616005 904670900803 904670900806 9165140614 9165160816 9165160816 9165160816 9165160816 9165160816 9321018020 9331216016 9331216016 9331216025 9331218020 9331516020 9353024014 9353024014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-90A1416

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71077-90A5206

FJ62,HJ60..SOB..ARL

PF,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 2
71354A - PLATE, REAR SEAT BACK SET
71354-90A00

BJ60,FJ62,HJ6#

 2
71370 - BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER
71307-90A00

BJ60,FJ6#,HJ6#..WGV

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-90A2806

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,W/*HR,BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A6506

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71460-90A0116

BJ60,FJ62,HJ60..WGV..(ARL,EUR,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-90A0116

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/RR FLOOR MAT,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A0516

BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2106

BJ60,FJ62,HJ60..SOB..(ARL,EUR,GEN)

PF,W/*HR,*RFM,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A2306

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A4806

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5006

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5106

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90A5306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0006

FJ62,HJ60..SOB..ARL

PF,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0106

FJ62,HJ60..SOB..ARL

PF,W/*RFC,W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71480-90G0206

FJ62,HJ60..SOB..ARL

PF,W/*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71480-90G0306

FJ62,HJ60..SOB..ARL

PF,W/*RFC,*HR,SEPIA BROWN,LIGHT BROWN,TRIM4#

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71521-90K00

FJ62,HJ6#..SRF..(ARL,EUR)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71521-90K00

FJ62,HJ6#..SRF..(ARL,EUR)

 2
71739 - CUSHION, SEAT SUPPORT
71739-90A00

BJ60,FJ6#,HJ6#..WGV

BN

 3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ60,FJ6#,HJ6#

 1
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71827B - MOULDING, REAR SEAT CUSHION, FRONT
71827-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71828-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-90A0103

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71829-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71835C - MOULDING, REAR SEAT BACK, RH
71835-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71836C - MOULDING, REAR SEAT BACK, LH
71836-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837C - MOULDING, REAR SEAT BACK, UPPER
71837-90A0016

BJ60,FJ62,HJ60..SOB

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0016

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

W/*HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71837-90A0106

BJ60,FJ62,HJ6#..WGV

W/O *HR,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71838C - MOULDING, REAR SEAT BACK, LOWER
71838-90A0016

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71885B - MAT, REAR SEAT BACK
71885-90A0116

BJ60,HJ60..SRF..SOB;FJ62..SOB..(ARL,GEN)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887B - MAT, REAR SEAT CUSHION
71887-90A0016

BJ60,FJ62,HJ6#..WGV

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71887-90A0303

BJ60,FJ62,HJ60..SOB

W/*HR SUPPORT,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956 - SUPPORT, HEADREST
71956-90A00

BJ60,FJ62,HJ60..SOB

LH

 2
71955-90K0001

BJ60,FJ62,HJ60..SOB..(ARL,GEN)

BLACK,BLACK

 4
71955-90A00

BJ60,FJ62,HJ60..SOB

RH

 2
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71956B - SUPPORT, REAR SEAT HEADREST
71930-1006036

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71931-1001036

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
71930-1006033

BJ60,FJ62,HJ60..WGV

W(LOCK),W/LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71931-1001033

BJ60,FJ62,HJ60..WGV

W/O(LOCK),W/O LOCK,SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
71970 - HEADREST ASSY, REAR SEAT
71910-90A0116

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
71910-90A0103

BJ60,FJ62,HJ60..ARL,GEN,ME

PF,SHADOW GRAY,GRAY,TRIM1#

 2
71910-90A0103

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SHADOW GRAY,GRAY,TRIM1#

 1
71910-90A0116

FJ62..ARL,GEN;HJ60..MTM..(ARL,GEN)

PF,SEPIA BROWN,SEPIA BROWN,TRIM4#

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72630-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-90A14

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A19

FJ62,HJ6#..SRF..ARL

BN

 1
72640-90A13

FJ62,HJ60..ARL

SP

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-90A00

FJ6#,HJ60..SRF..(ARL,EUR)

 1
72607-90A00

FJ62,HJ6#..SRF..(ARL,EUR)

FOR BENCH TYPE

 1
72610 - LOCK ASSY, REAR SEAT CUSHION
72660-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
72645 - CUSHION, REAR SEAT BACK LOCK
72645-90A00

BJ60,FJ62,HJ6#..WGV

 2
72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH
72670-90A01

FJ62,HJ6#..SRF..ARL

 1
72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH
72680-90A01

FJ62,HJ6#..SRF..ARL

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-90A0016

BJ60,FJ62,HJ6#..WGV

BN,SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
Common parts
82711-12200
90159-80016
90386-09006
90386-16005
90467-0900803
90467-0900806
91651-40614
91651-60816
93210-18020
93312-16016
93312-16025
93312-18020
93315-16020
93530-24014
