FJ62RV-MCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

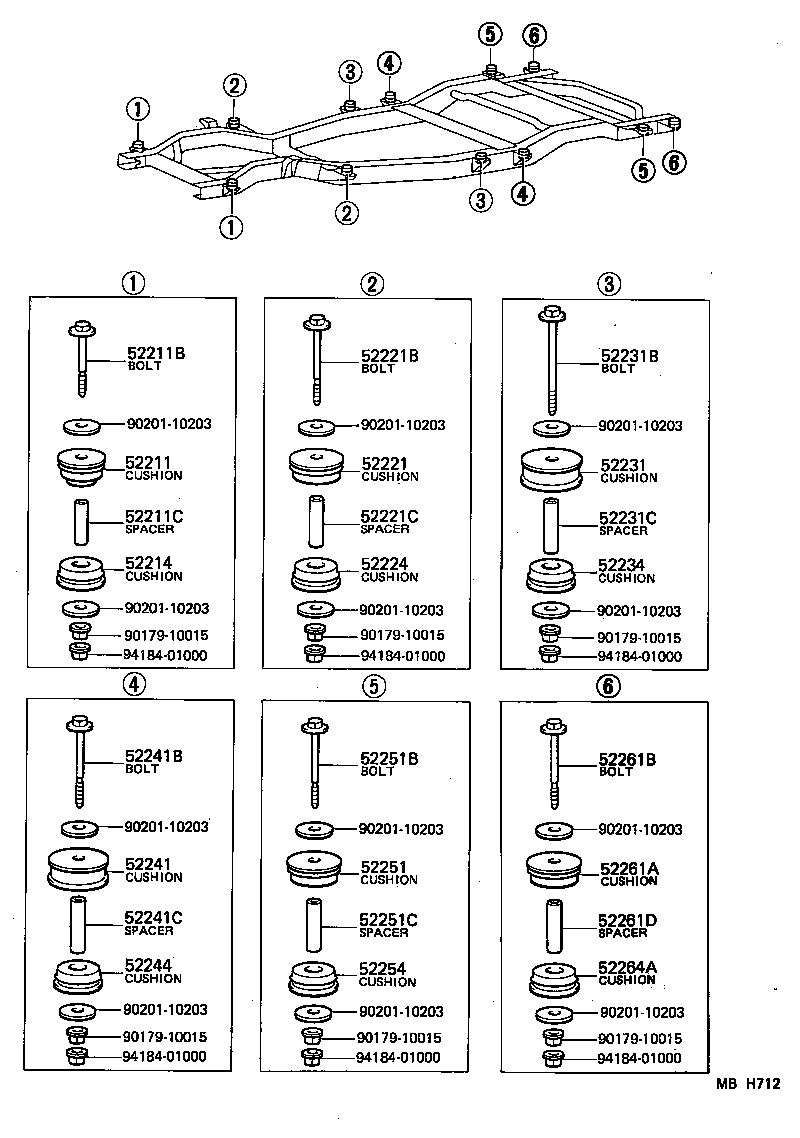

Click highlighted areas on diagram

diagram 52211 52211B 52211C 52214 52221 52221B 52221C 52224 52231 52231B 52231C 52234 52241 52241B 52241C 52244 52251 52251B 52251C 52254 52261A 52261B 52261D 52264A 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9418401000 9418401000 9418401000 9418401000 9418401000 9418401000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-35021

BJ60,FJ6#,HJ6#

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90105-10039

BJ60,FJ6#,HJ6#

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90440-16007

BJ60,FJ6#,HJ6#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-35021

BJ60,FJ6#,HJ6#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52201-25020

BJ60,FJ6#,HJ6#

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90105-10039

BJ60,FJ6#,HJ6#

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90440-17021

BJ60,FJ6#,HJ6#

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52202-25020

BJ60,FJ6#,HJ6#

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-60030

BJ60,FJ62,HJ6#

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90105-10029

BJ60,FJ62,HJ6#

 2
52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION)
90560-12233

BJ60,FJ62,HJ6#

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52023-60011

BJ60,FJ62,HJ6#

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52207-60010

BJ60,FJ62,HJ6#

 2
52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION)
90105-10029

BJ60,FJ62,HJ6#

 2
52241C - SPACER(FOR BODY MOUNT NO.4 CUSHION)
90560-12233

BJ60,FJ6#,HJ6#

 2
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52208-60010

BJ60,FJ62,HJ6#

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52203-60030

BJ60,FJ62,HJ6#

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90105-10039

BJ60,FJ6#,HJ6#

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
90560-12233

BJ60,FJ62,HJ6#

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52023-60011

BJ60,FJ62,HJ6#

 2
52261A - CUSHION, BODY MOUNT, NO.6 UPPER
52201-25020

BJ60,FJ62,HJ6#

 2
52261B - BOLT(FOR BODY MOUNT NO.6 CUSHION)
90105-10039

BJ60,FJ62,HJ6#

 2
52261D - SPACER(FOR BODY MOUNT NO.6 CUSHION)
90440-17021

BJ60,FJ62,HJ6#

 2
52264A - CUSHION, BODY MOUNT, NO.6 LOWER
52202-25020

BJ60,FJ62,HJ6#

 2
Common parts
90179-10015
90201-10203
94184-01000
