FJ62RV-MCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

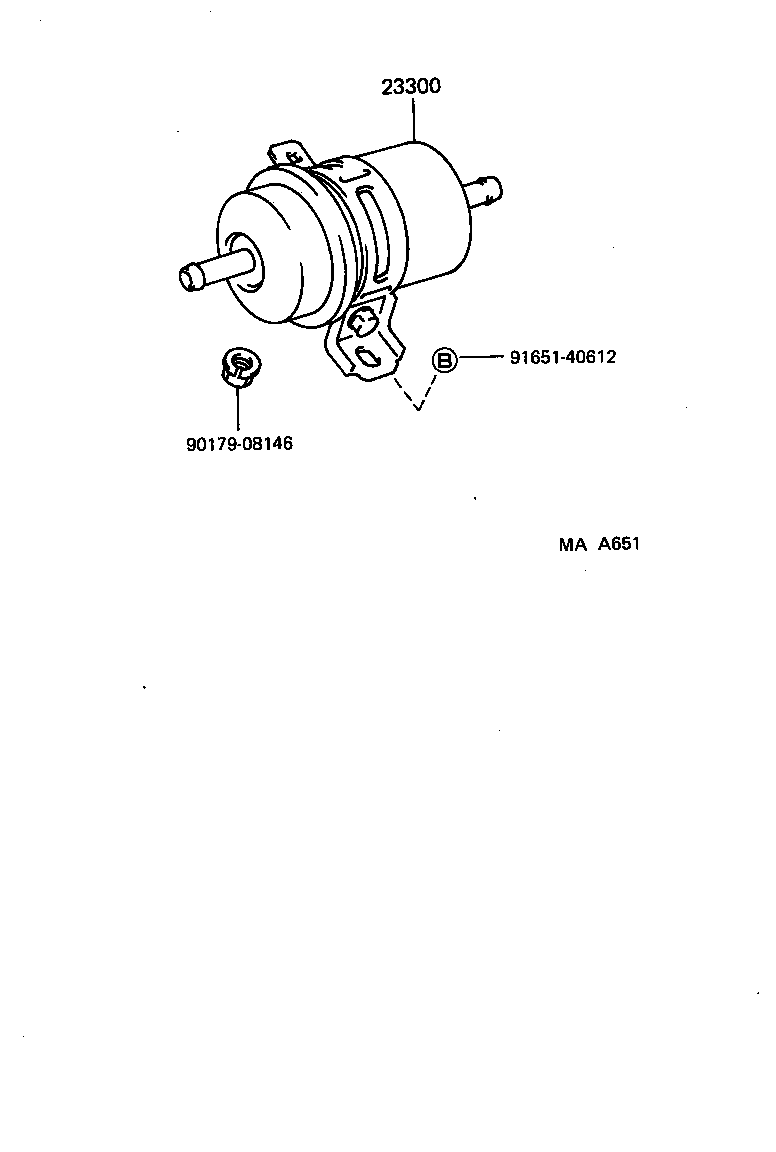

Click highlighted areas on diagram

diagram 23300 23921 9166660825 9166660825
Part # Description Qty Price
Common parts
91666-60825

(8704- )3F

Click highlighted areas on diagram

diagram 23300 9017908146 9165140612
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-38010

2F,3F..FJ6#

 1
23300-61070

3F..FJ62

 1
Common parts
90179-08146
91651-40612

(8008-8704)2F,3F

Click highlighted areas on diagram

diagram 23300 23921 9165140612
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-38010

2F,3F..FJ6#

 1
23300-61070

3F..FJ62

 1
23921 - SUPPORT, FUEL FILTER
23921-61021

2F,3F..FJ6#

 1
Common parts
91651-40612
