FJ62RV-KC (1984)
Toyota Land Cruiser
(8411- )FJ62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

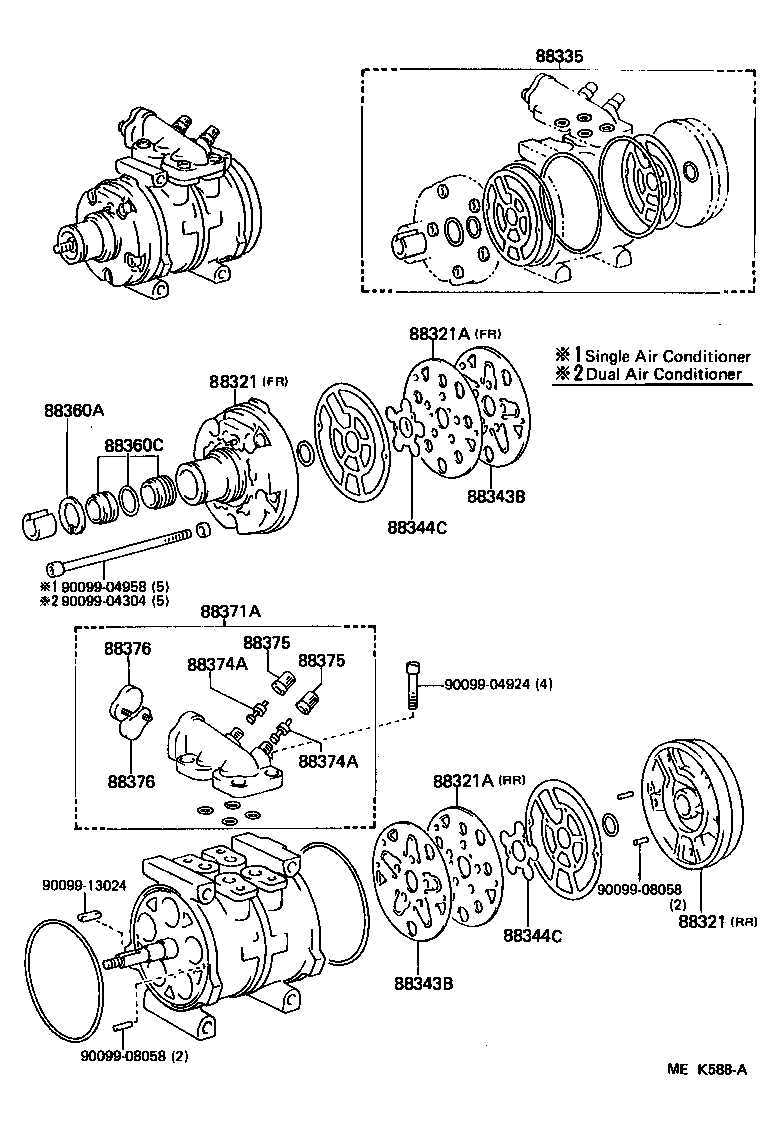

| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88304-14021 |
FJ62..GEN,ME |
1 | ||
| 88304-40010 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88316-14011 |
FJ62..GEN,ME |
1 | ||
| 88316-40011 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13012 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 90099-13024 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60150 |
FJ62..GEN,ME |
1 | ||
| 88320-60161 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 88320-60151 |
FJ62..GEN,ME |
1 | ||
| 88320-60160 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 88320-60150 |
FJ62 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 90099-04304 |
FJ62..ARL,GEN W/*ODAC |
5 | ||
| 90099-04958 |
FJ62..GEN,ME |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-40010 |
FJ62..ARL,GEN FR,W/*ODAC |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-40010 |
FJ62..ARL,GEN RR,W/*ODAC |
1 | ||
| 88321-14011 |
FJ62..GEN,ME FR |
1 | ||
| 88322-14011 |
FJ62..GEN,ME RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-40010 |
FJ62..ARL,GEN FR,W/*ODAC |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-40010 |
FJ62..ARL,GEN RR,W/*ODAC |
1 | ||
| 88321-14011 |
FJ62..GEN,ME FR |
1 | ||
| 88322-14011 |
FJ62..GEN,ME RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-40010 |
FJ62..ARL,GEN FR,W/*ODAC |
1 | ||
| 88341-14010 |
FJ62..GEN,ME FR |
1 | ||
| 88342-14010 |
FJ62..GEN,ME RR |
1 | ||
| 88342-40010 |
FJ62..ARL,GEN RR,W/*ODAC |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-40010 |
FJ62..ARL,GEN FR,W/*ODAC |
1 | ||
| 88341-14010 |
FJ62..GEN,ME FR |
1 | ||
| 88342-14010 |
FJ62..GEN,ME RR |
1 | ||
| 88342-40010 |
FJ62..ARL,GEN RR,W/*ODAC |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-40010 |
FJ62..ARL,GEN W/*ODAC |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88344-14011 |
FJ62..GEN,ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-40010 |
FJ62..ARL,GEN W/*ODAC |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88344-14011 |
FJ62..GEN,ME |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
FJ62..GEN,ME |
2 | ||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-40010 |
FJ62..ARL,GEN W/*ODAC |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
FJ62..GEN,ME |
2 | ||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-40010 |
FJ62..ARL,GEN W/*ODAC |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-60100 |
FJ62 |
1 | ||
| 88371-60101 |
FJ62 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
FJ62..GEN,ME |
5 | ||
| 88301-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 88301-40010 |
FJ62..ARL,GEN W/*ODAC |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-30260 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 04881-10010 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88335-22010 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 04881-10010 |
FJ62..GEN,ME |
1 | ||
| 88335-12030 |
FJ62..GEN,ME |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88360-40010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88360-40010 |
FJ62..ARL,GEN W/*ODAC |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ62 SUCTION |
1 | ||
| 88376-22020 |
FJ62 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ62 SUCTION |
1 | ||
| 88376-22020 |
FJ62 DISCHARGE |
1 | ||
ILLUST NO. 2 OF 3(8708-8808) ; (8808- )BJ60,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07049 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 3(8708-8808)FJ62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04304 | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||
