FJ62RG-PEZQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

REAR HEATER(SEPARATE SEAT)

diagram 87104 87105 87107 87110 87123 87138 87212A 87240H 9165140816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A00

BJ60,FJ62,HJ6#

FRONT

 1
87104-90K03

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

REAR

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BJ60,FJ62,HJ6#..RHD

FRONT

 1
87105-87002

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A00

HJ60..GX,VX;HJ60..RHD..STD;BJ60,FJ62,HJ61..ARL,ME

FRONT

 1
87107-90A06

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87110 - HEATER ASSY
87110-90A02

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87123 - KNOB, HEATER
55905-12070

BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL

 1
87138 - RESISTOR, HEATER BLOWER
87138-22030

BJ60,FJ62,HJ6#

FRONT

 1
87138-90K02

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87212A - DUCT, AIR, REAR NO.1
87212-90A00

BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL

 1
87240H - VALVE ASSY, WATER UNIT
87240-90A02

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
Common parts
91651-40816

(8708- )

Click highlighted areas on diagram

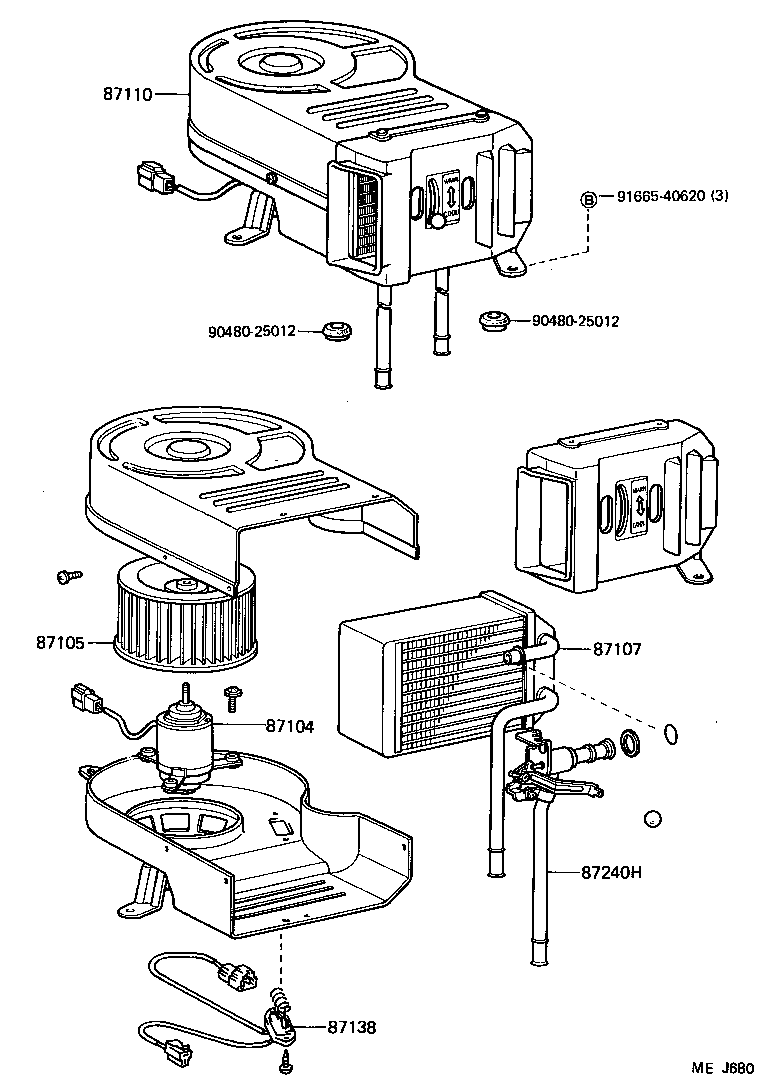

REAR HEATER(BENCH SEAT)

diagram 87104 87105 87107 87110 87138 87240H 9048025012 9048025012 9166540620
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A00

BJ60,FJ62,HJ6#

FRONT

 1
87104-90K03

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

REAR

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BJ60,FJ62,HJ6#..RHD

FRONT

 1
87105-87002

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A00

HJ60..GX,VX;HJ60..RHD..STD;BJ60,FJ62,HJ61..ARL,ME

FRONT

 1
87107-90A06

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87110 - HEATER ASSY
87110-90A02

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87138 - RESISTOR, HEATER BLOWER
87138-22030

BJ60,FJ62,HJ6#

FRONT

 1
87138-90K02

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87240H - VALVE ASSY, WATER UNIT
87240-90A02

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
Common parts
90480-25012
91665-40620

(8708- )

Click highlighted areas on diagram

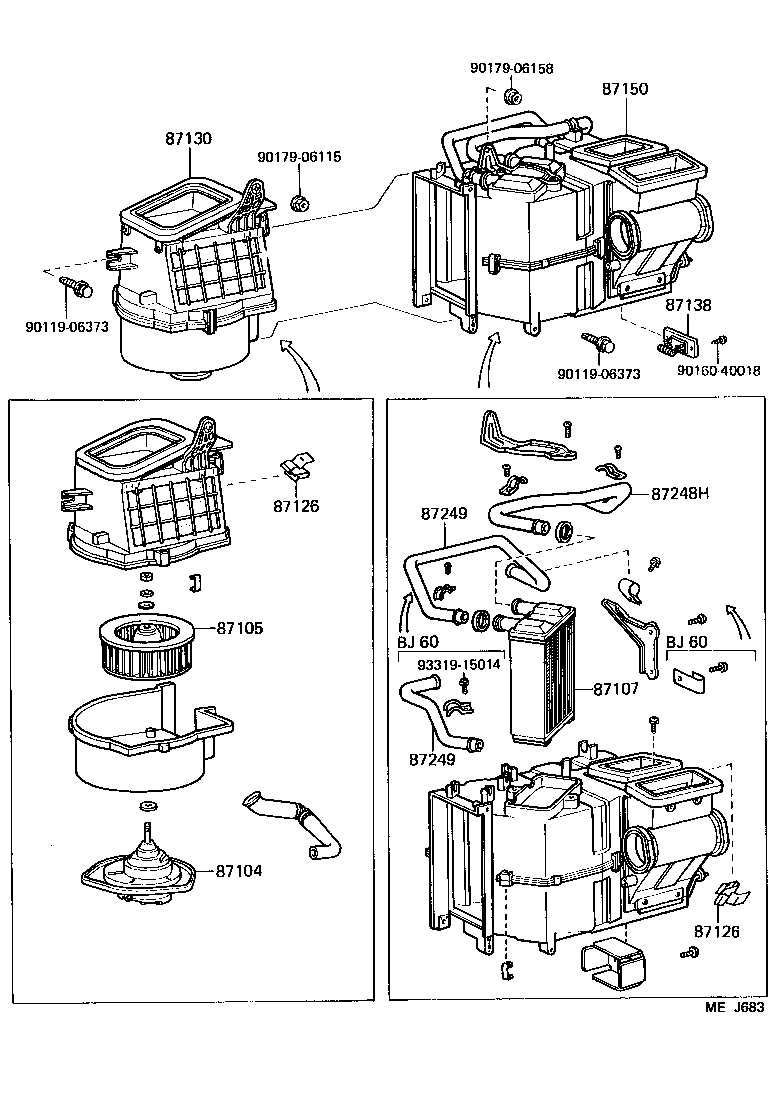

FRONT HEATER

diagram 87104 87105 87107 87126 87126 87130 87138 87150 87248H 87249 87249 9011906373 9011906373 9016040018 9017906115 9017906158 9331915014
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A00

BJ60,FJ62,HJ6#

FRONT

 1
87104-90K03

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

REAR

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BJ60,FJ62,HJ6#..RHD

FRONT

 1
87105-87002

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A00

HJ60..GX,VX;HJ60..RHD..STD;BJ60,FJ62,HJ61..ARL,ME

FRONT

 1
87107-90A06

HJ61..HRF;FJ62..HRF..GX..ARL;FJ62,HJ60..VX..(ARL,GEN)

 1
87126 - CLAMP, HEATER CONTROL
87126-90A01

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

RADIATOR

 2
87126-16010

BJ60,FJ62,HJ6#

BLOWER

 1
87126 - CLAMP, HEATER CONTROL
87126-90A01

HJ60..LUB;FJ62..STD..ARL;HJ60..RHD..STD;FJ62,HJ61..(GX,VX)..(ARL,ME)

RADIATOR

 2
87126-16010

BJ60,FJ62,HJ6#

BLOWER

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-90A00

BJ60,FJ62,HJ6#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-22030

BJ60,FJ62,HJ6#

FRONT

 1
87138-90K02

BJ60,FJ62,HJ6#..ARL,GEN

REAR

 1
87150 - RADIATOR ASSY, HEATER
87150-90A08

FJ62,HJ6#..RHD

 1
87248H - PIPE, HEATER WATER INLET
87248-90A00

BJ60,FJ62,HJ6#..RHD

 1
87249 - PIPE, WATER
87248-90A02

FJ62,HJ6#..RHD

 1
87249 - PIPE, WATER
87248-90A02

FJ62,HJ6#..RHD

 1
Common parts
90119-06373
90160-40018
90179-06115
90179-06158
93319-15014
