FJ62RG-PEZQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )4F

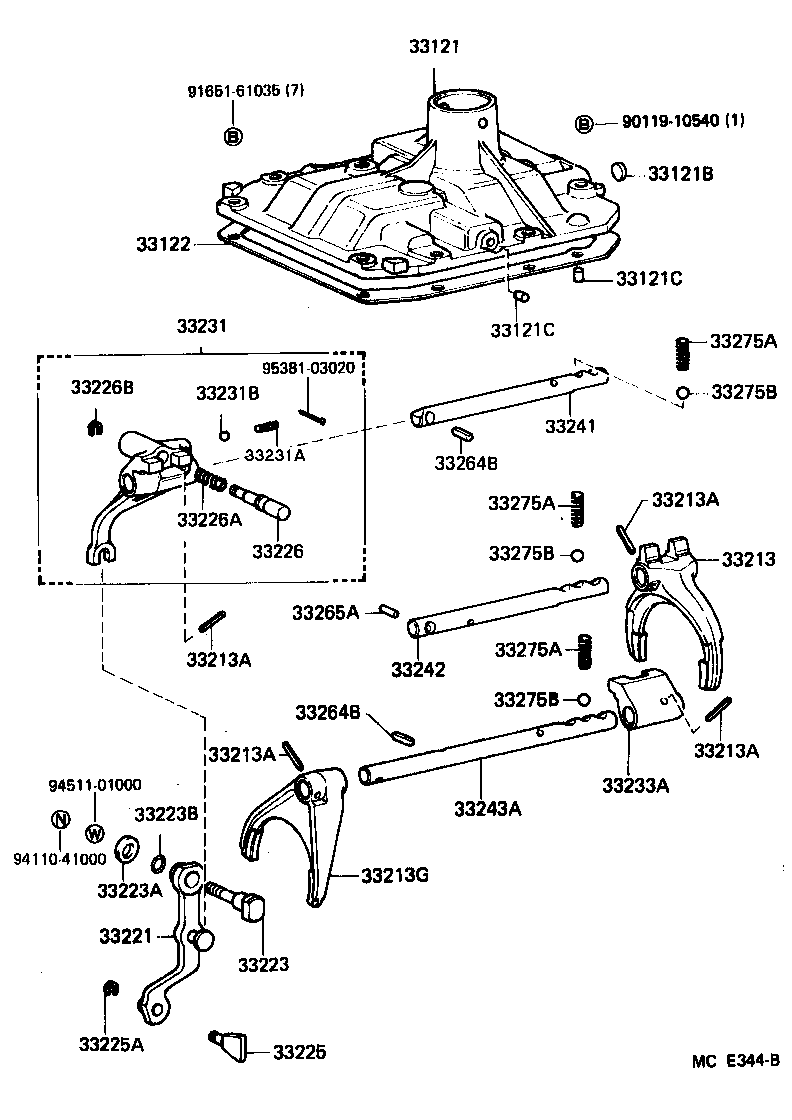

Click highlighted areas on diagram

H41

diagram 33121 33121B 33121C 33121C 33122 33213 33213A 33213A 33213A 33213A 33213G 33221 33223 33223A 33223B 33225 33225A 33226 33226A 33226B 33231 33231A 33231B 33233A 33241 33242 33243A 33264B 33264B 33265A 33275A 33275A 33275A 33275B 33275B 33275B 9011910540 9165161035 9411041000 9451101000 9538103020
Part # Description Qty Price
33121 - COVER, MANUAL TRANSMISSION CASE
33102-60060

BJ60,FJ62,HJ60..4F

 1
33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
96411-11600

BJ60,FJ62,HJ60..4F

 3
33213 - FORK, 1ST & 2ND SHIFT
33212-60030

BJ60,FJ62,HJ60..4F

 1
33213G - FORK, GEAR SHIFT, NO.2
33213-60040

BJ60,FJ62,HJ60..4F

 1
33226 - PLUNGER, REVERSE SHIFT RETURN
33226-36011

BJ60,FJ62,HJ60..4F

 1
33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)
90501-16750

BJ60,FJ62,HJ60..4F

 1
33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)
90213-06001

BJ60,FJ62,HJ60..4F

 1
33231 - HEAD, REVERSE SHIFT
33202-60021

BJ60,FJ62,HJ60..4F

 1
33231A - SPRING, REVERSE SHIFT RESTRICT
90501-14035

BJ60,FJ62,HJ60..4F

 1
33231B - BALL, REVERSE SHIFT RESTRICT
90360-06004

BJ60,FJ62,HJ60..4F

 1
33233A - HEAD, GEAR SHIFT, NO.2
33233-60020

BJ60,FJ62,HJ60..4F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-60031

BJ60,FJ62,HJ60..4F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-60020

BJ60,FJ62,HJ60..4F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-60052

BJ60,FJ62,HJ60..4F

 1
33265A - ROLLER, NO.2 (FOR INTER LOCK)
90361-05001

BJ60,FJ62,HJ60..4F

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16056

BJ60,FJ62,HJ60..4F

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16056

BJ60,FJ62,HJ60..4F

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-16056

BJ60,FJ62,HJ60..4F

 3
33275B - BALL, SHAFT DETENT
90360-10003

BJ60,FJ62,HJ60..4F

 3
33275B - BALL, SHAFT DETENT
90360-10003

BJ60,FJ62,HJ60..4F

 3
33275B - BALL, SHAFT DETENT
90360-10003

BJ60,FJ62,HJ60..4F

 3
Common parts
90119-10540
91651-61035
94110-41000
94511-01000
95381-03020
