FJ62RG-MRCQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

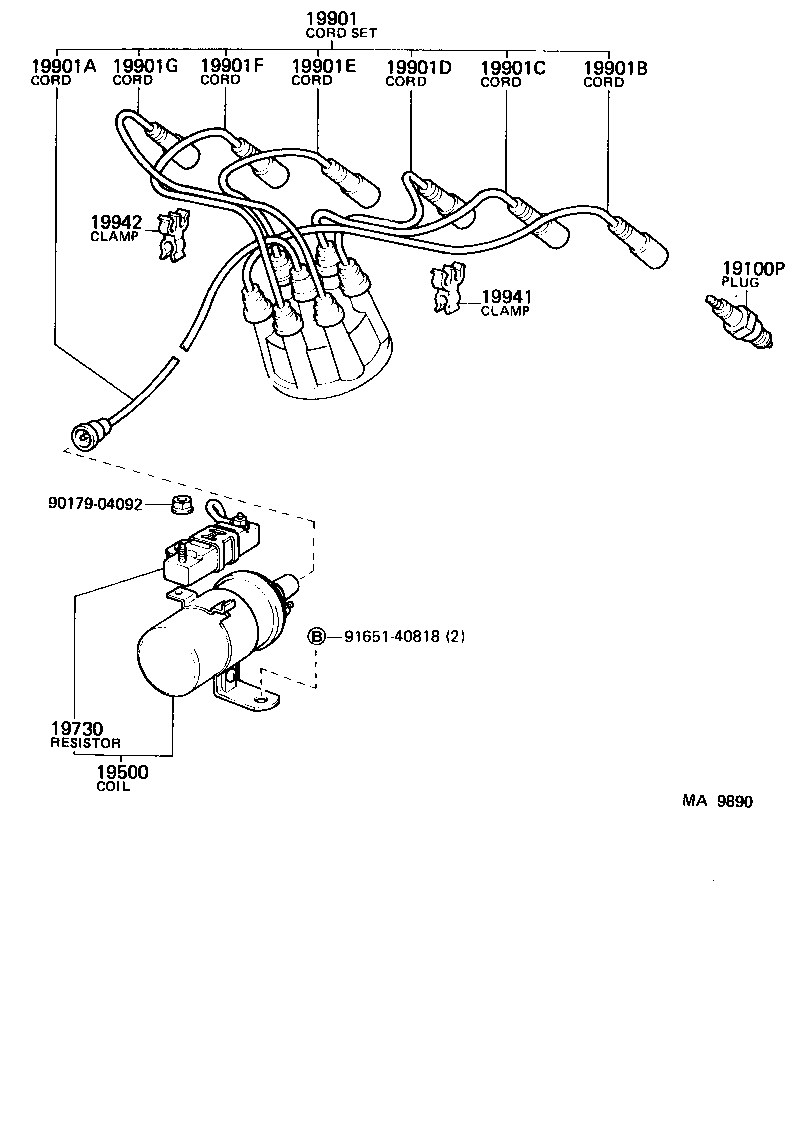

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 9017904092 9165140818
Part # Description Qty Price
Common parts
90179-04092
91651-40818

(8708- )3F

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 9017904092 9165140818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01056

3F..FJ62

W14EX-U

 6
19500 - COIL ASSY, IGNITION
90919-02087

3F..FJ62..ARL,ME

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

3F..FJ62..ARL,ME;3F..FJ62..MTM..GEN

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21367

3F..FJ62

 1
19901A - CORD, COIL RESISTIVE
90919-13246

3F..FJ62

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12169

3F..FJ62

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12168

3F..FJ62

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12167

3F..FJ62

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12167

3F..FJ62

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12168

3F..FJ62

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12169

3F..FJ62

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00093

3F..FJ62

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00105

3F..FJ62

 1
Common parts
90179-04092
91651-40818
