FJ62RG-MNQ (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

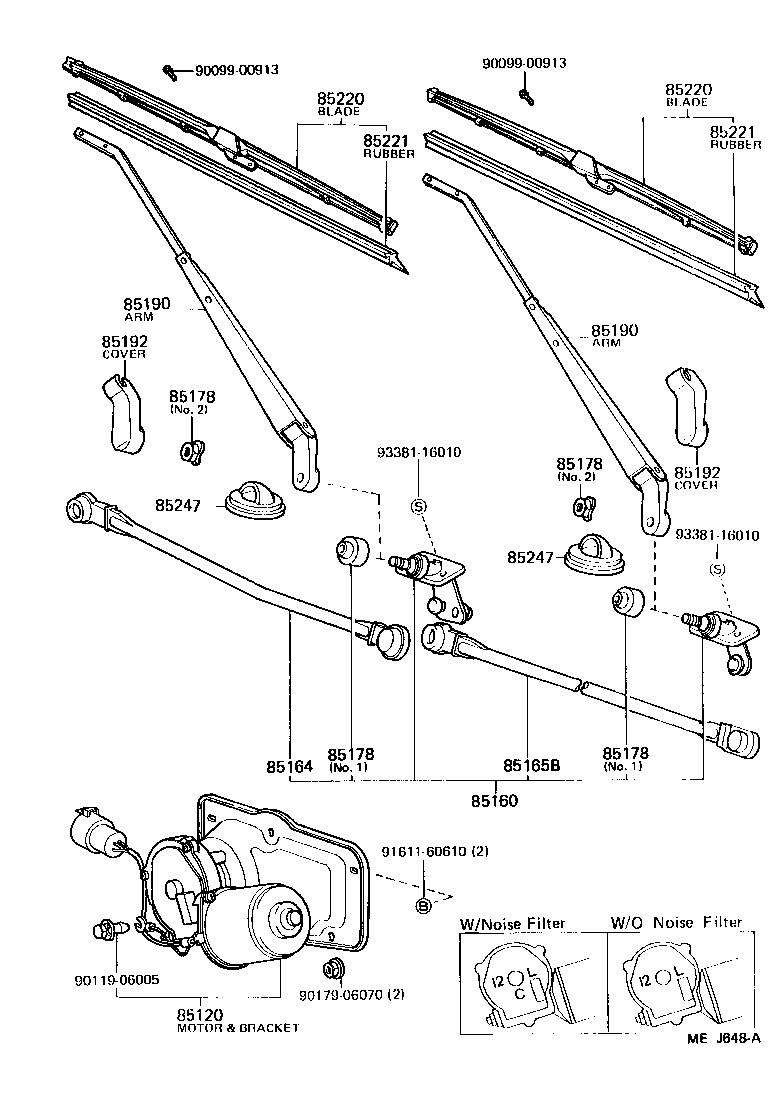

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER | ||||
| 85120-90A31 |
FJ62,HJ6#..ARL |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-90A03 |
BJ60,FJ62,HJ6#..RHD |
1 | ||
| 85164 - ROD, WINDSHIELD WIPER LINK, NO.1 | ||||
| 85164-90A00 |
BJ60,FJ62,HJ6#..RHD |
1 | ||
| 85165B - ROD, WIPER LINK, NO.2 | ||||
| 85165-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 85178-90A00 |
BJ60,FJ62,HJ6# NO.1 |
2 | ||
| 90179-08026 |
BJ60,FJ62,HJ6# NO.2 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 85178-90A00 |
BJ60,FJ62,HJ6# NO.1 |
2 | ||
| 90179-08026 |
BJ60,FJ62,HJ6# NO.2 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 85178-90A00 |
BJ60,FJ62,HJ6# NO.1 |
2 | ||
| 90179-08026 |
BJ60,FJ62,HJ6# NO.2 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 85178-90A00 |
BJ60,FJ62,HJ6# NO.1 |
2 | ||
| 90179-08026 |
BJ60,FJ62,HJ6# NO.2 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-90A01 |
BJ60,FJ62,HJ6#..RHD RH |
1 | ||
| 85210-90A00 |
BJ60,FJ62,HJ6#..RHD LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-90A01 |
BJ60,FJ62,HJ6#..RHD RH |
1 | ||
| 85210-90A00 |
BJ60,FJ62,HJ6#..RHD LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-14040 |
BJ60,FJ62,HJ6#..RHD |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-14040 |
BJ60,FJ62,HJ6#..RHD |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16420 |
BJ60,FJ62,HJ6#..RHD LH |
1 | ||
| 85220-16410 |
BJ60,FJ62,HJ6#..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16420 |
BJ60,FJ62,HJ6#..RHD LH |
1 | ||
| 85220-16410 |
BJ60,FJ62,HJ6#..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
BJ60,FJ62,HJ6#..RHD |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30120 |
BJ60,FJ62,HJ6#..RHD |
2 | ||
| 85247 - CAP, SHIELD | ||||
| 85247-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| 85247 - CAP, SHIELD | ||||
| 85247-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06005 | ||||
| 90179-06070 | ||||
| 91611-60610 | ||||
| 93381-16010 | ||||
