FJ62RG-MNQ (1987)
Toyota Land Cruiser
(8708- )

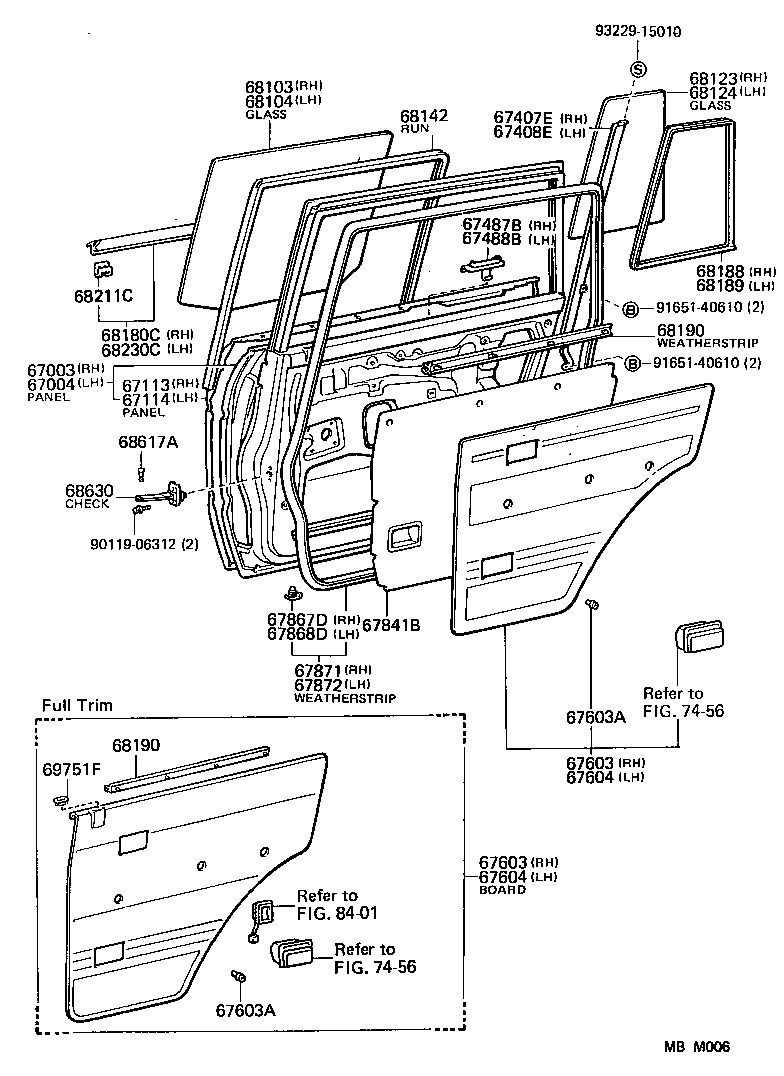

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-90A19 |
HJ61..GX;HJ60..LUB;FJ62..HRF..GX..(ARL,GEN);FJ62..SRF..(GX,VX)..(ARL,GEN) W(OVER FENDER) |
1 | ||
| 67003-90A15 |
BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
1 | ||
| 67003-90A21 |
HJ61..GX;HJ60..LUB;FJ62..HRF..GX..(ARL,GEN);FJ62..SRF..(GX,VX)..(ARL,GEN) W(OVER FENDER & *PW) |
1 | ||
| 67003-90A17 |
HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN W(*PW) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-90A15 |
BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD |
1 | ||
| 67004-90A21 |
HJ61..GX;HJ60..LUB;FJ62..HRF..GX..(ARL,GEN);FJ62..SRF..(GX,VX)..(ARL,GEN) W(OVER FENDER & *PW) |
1 | ||
| 67004-90A17 |
HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN W(*PW) |
1 | ||
| 67004-90A19 |
HJ61..GX;HJ60..LUB;FJ62..HRF..GX..(ARL,GEN);FJ62..SRF..(GX,VX)..(ARL,GEN) W(OVER FENDER) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-90A07 |
FJ62,HJ6#..(GX,VX)..(ARL,GEN) W(OVER FENDER) |
1 | ||
| 67113-90A05 |
BJ60,FJ62,HJ6# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-90A05 |
BJ60,FJ62,HJ6# |
1 | ||
| 67114-90A07 |
FJ62,HJ6#..(GX,VX)..(ARL,GEN) W(OVER FENDER) |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-90A2506 |
FJ62,HJ6#..GX W(*PW),SEPIA BROWN,TRIM4# |
1 | ||
| 67630-90A2803 |
BJ60,FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67630-90A2503 |
FJ62,HJ6#..GX W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-90A2806 |
BJ60,FJ62,HJ6#..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-90A2506 |
FJ62,HJ6#..GX W(*PW),SEPIA BROWN,TRIM4# |
1 | ||
| 67630-90A2803 |
BJ60,FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67630-90A2503 |
FJ62,HJ6#..GX W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-90A2806 |
BJ60,FJ62,HJ6#..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-30060 |
BJ60,FJ62,HJ6#..GX,VX |
18 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-30060 |
BJ60,FJ62,HJ6#..GX,VX |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-90A2506 |
FJ62,HJ6#..GX W(*PW),SEPIA BROWN,TRIM4# |
1 | ||
| 67640-90A2503 |
FJ62,HJ6#..GX W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-90A2803 |
BJ60,FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67640-90A2806 |
BJ60,FJ62,HJ6#..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-90A2506 |
FJ62,HJ6#..GX W(*PW),SEPIA BROWN,TRIM4# |
1 | ||
| 67640-90A2503 |
FJ62,HJ6#..GX W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-90A2803 |
BJ60,FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67640-90A2806 |
BJ60,FJ62,HJ6#..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67805-90A01 |
BJ60,HJ6#;FJ62..LUB;FJ62..MTM..SOB..GX;FJ62..SOB..(STD,VX) |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
BJ60,FJ62,HJ6# |
21 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
BJ60,FJ62,HJ6# |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-90A00 |
HJ60..STD;FJ62,HJ6#..SRF..GX..ARL;BJ60,FJ62,HJ61..MTM..(STD,VX)..(ARL,GEN) *TEM,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-90A00 |
HJ60..STD;FJ62,HJ6#..SRF..GX..ARL;BJ60,FJ62,HJ61..MTM..(STD,VX)..(ARL,GEN) *TEM,T=4.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-90A00 |
HJ60..STD;FJ62,HJ6#..SRF..GX..ARL;BJ60,FJ62,HJ61..MTM..(STD,VX)..(ARL,GEN) *TEM,T=4.0 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-90A00 |
HJ60..STD;FJ62,HJ6#..SRF..GX..ARL;BJ60,FJ62,HJ61..MTM..(STD,VX)..(ARL,GEN) *TEM,T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-90A00 |
HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-90A00 |
HJ60..LUB;BJ60,FJ62,HJ61;HJ60..RHD..STD |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-90A01 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-90A01 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-90A00 |
BJ60,FJ62,HJ6# |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-20040 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| Common parts | ||||
| 90119-06312 | ||||
| 91651-40610 | ||||
| 93229-15010 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||
