FJ62RG-MN (1987)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(8708-8808) ; (8808- )BJ60,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88412-26020 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88412-26020 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88301A - BEARING (FOR MAGNET CLUTCH) | ||||
| 90099-10133 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 90099-10162 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88411-30370 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88411-30370 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60151 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88320-60161 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
HJ6#..LUB..ARL;BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 88335-12050 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
HJ6#..LUB..ARL;BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 88335-12050 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30280 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88403-12030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30280 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88403-12030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-26040 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88410-22080 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-26040 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88410-22080 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88899J - CASE, OIL | ||||
| 88899-90A03 |
HJ61..HRF;FJ62..HRF..VX;HJ60..LUB..GEN;FJ62..4F..SOB..GX;FJ62..5F..SRF..VX;FJ62..5F..SRF..GX..GEN;FJ62..5F..HRF..LUB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07049 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 1 OF 3(8708- )FJ62,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60100 |
FJ62..GEN,ME |
1 | ||
| 88431-60050 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88431-60040 |
FJ62..HRF..LUB;FJ62..HRF..STD;FJ62..5F..STD..GEN;FJ62..5F..SRF..GX..(ARL,GEN);FJ62..(4F,4FC)..SRF..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88431-60100 |
FJ62..ME;FJ62..RHD..GEN;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60100 |
FJ62..GEN,ME |
1 | ||
| 88431-60050 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88431-60040 |
FJ62..HRF..LUB;FJ62..HRF..STD;FJ62..5F..STD..GEN;FJ62..5F..SRF..GX..(ARL,GEN);FJ62..(4F,4FC)..SRF..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88431-60100 |
FJ62..ME;FJ62..RHD..GEN;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88432A - ATTACHMENT, COMPRESSOR | ||||
| 88437-60190 |
FJ62..(GX,STD)..GEN;FJ62..STD..(ARL,ME) |
1 | ||
| 88432A - ATTACHMENT, COMPRESSOR | ||||
| 88437-60190 |
FJ62..(GX,STD)..GEN;FJ62..STD..(ARL,ME) |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
FJ62..ARL,ME;FJ62..RHD..GEN;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88440-35010 |
FJ62;HJ60..STD..ARL |
1 | ||
| 88440-35010 |
FJ62..ARL,ME;FJ62..RHD..GEN;HJ60..STD..ARL;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88440-35010 |
FJ62,HJ6# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
FJ62..ARL,ME;FJ62..RHD..GEN;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88440-35010 |
FJ62;HJ60..STD..ARL |
1 | ||
| 88440-35010 |
FJ62..ARL,ME;FJ62..RHD..GEN;HJ60..STD..ARL;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62..5F..SOB..GX..GEN;FJ62..LHD..(STD,VX)..GEN |
1 | ||
| 88440-35010 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90091-21001 | ||||
| 90099-04338 | ||||
| 90099-05191 | ||||
| 90116-61035 | ||||
| 90119-08225 | ||||
| 90119-10038 | ||||
| 90119-10079 | ||||
| 90176-08005 | ||||
| 91611-60825 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91621-61035 | ||||
| 91621-61050 | ||||

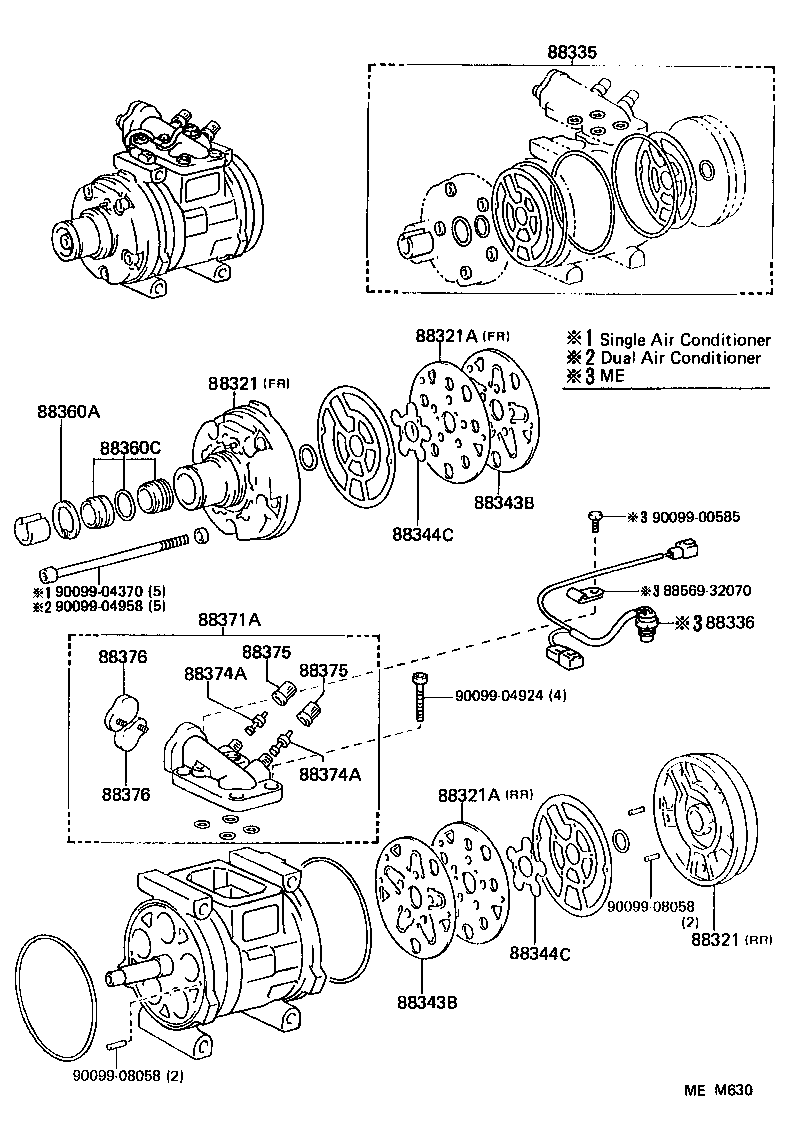

ILLUST NO. 3 OF 3(8708-8808)FJ62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88321-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88322-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88322-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88321-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88322-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88322-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88341-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88342-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88342-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88341-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88342-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88342-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88335-22010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88343-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88343-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60101 |
FJ62..GEN,ME;FJ62..LUB..ARL |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL DISCHARGE |
1 | ||
| 88375-30270 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL DISCHARGE |
1 | ||
| 88375-30270 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
FJ62..GEN,ME;FJ62..LUB..ARL DISCHARGE |
1 | ||
| 88376-22010 |
FJ62..GEN,ME;FJ62..LUB..ARL SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
FJ62..GEN,ME;FJ62..LUB..ARL DISCHARGE |
1 | ||
| 88376-22010 |
FJ62..GEN,ME;FJ62..LUB..ARL SUCTION |
1 | ||
| Common parts | ||||
| 90099-04304 | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||
ILLUST NO. 3 OF 3(8808- )FJ62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88321-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88322-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88322-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88321-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88322-14011 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88322-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88341-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88342-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88342-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,FRONT |
1 | ||
| 88341-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,FRONT |
1 | ||
| 88342-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER,REAR |
1 | ||
| 88342-14010 |
FJ62..GEN SINGLE AIR CONDITIONER,REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12030 |
FJ62..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88335-22010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88343-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88343-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
FJ62..GEN SINGLE AIR CONDITIONER |
2 | ||
| 88344-40010 |
FJ62..5F..SRF..VX;FJ62..SRF..SOB..GEN;FJ62..5F..SRF..LUB..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) DUAL AIR CONDITIONER |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60101 |
FJ62..GEN,ME;FJ62..LUB..ARL |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL DISCHARGE |
1 | ||
| 88375-30270 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL DISCHARGE |
1 | ||
| 88375-30270 |
BJ60,HJ61;FJ62,HJ60..GEN,ME;FJ62,HJ60..LUB..ARL SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
FJ62..GEN,ME;FJ62..LUB..ARL DISCHARGE |
1 | ||
| 88376-22010 |
FJ62..GEN,ME;FJ62..LUB..ARL SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
FJ62..GEN,ME;FJ62..LUB..ARL DISCHARGE |
1 | ||
| 88376-22010 |
FJ62..GEN,ME;FJ62..LUB..ARL SUCTION |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90099-00585 | ||||
| 90099-04370 | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
