FJ62RG-MN (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F..GEN,SA

Click highlighted areas on diagram

diagram 17303E 17303F 21381 23265 23265 9046400074 9046400082 9046400211 9046400233 9046713007 9046713007 9046713007 9046713007 9046805025 9046805025 9099992004 9099992006
Part # Description Qty Price
Common parts
90464-00074
90464-00082
90464-00211
90464-00233
90467-13007
90468-05025
90999-92004
90999-92006

(8708- )3F

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

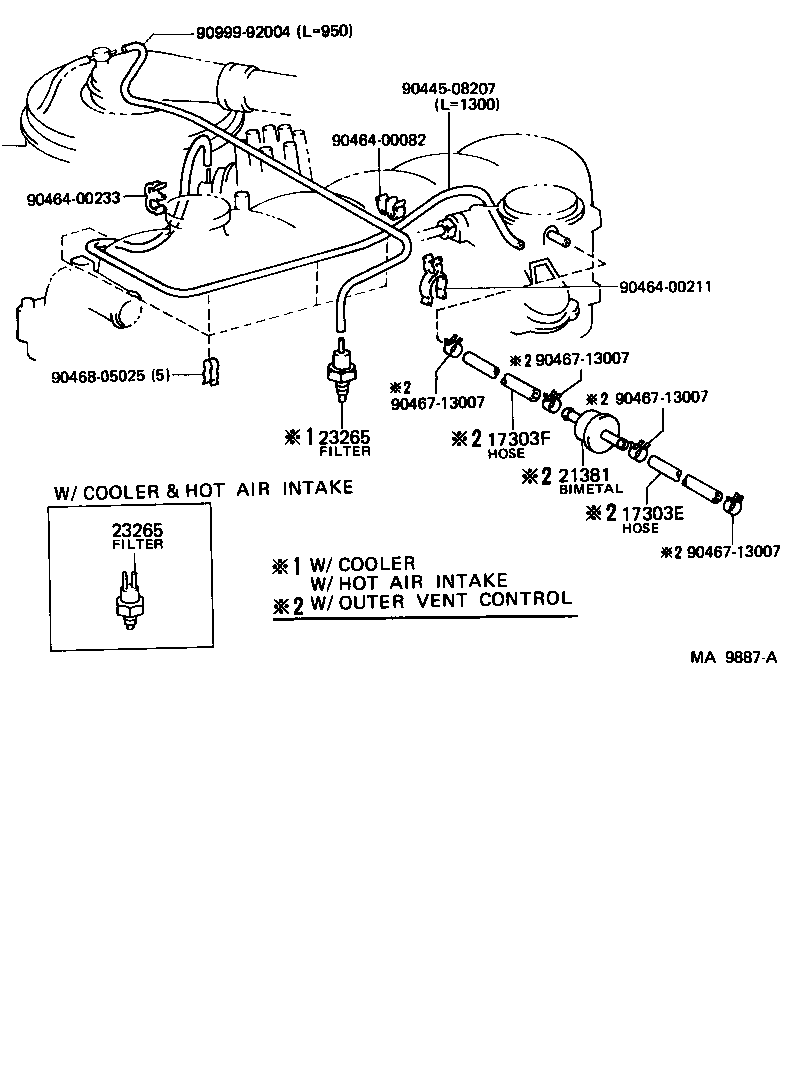

(8708- )3F..GEN

Click highlighted areas on diagram

diagram 17303E 17303F 21381 23265 23265 9044508207 9046400082 9046400211 9046400233 9046713007 9046713007 9046713007 9046713007 9046805025 9099992004
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084

3F..FJ62..ARL,ME;3F..FJ62..RHD..GEN

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14102

3F..FJ62

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3F..FJ62

 1
23265 - FILTER, GAS, NO.1
90917-11022

3F..FJ62..4FC;3F..FJ62..STD..ME;3F..FJ62..RHD..MTM;3F..FJ62..SOB..GX..GEN;3F..FJ62..LHD..5F..LUB..GEN

 1
23265 - FILTER, GAS, NO.1
90917-11022

3F..FJ62..4FC;3F..FJ62..STD..ME;3F..FJ62..RHD..MTM;3F..FJ62..SOB..GX..GEN;3F..FJ62..LHD..5F..LUB..GEN

 1
Common parts
90445-08207
90464-00082
90464-00211
90464-00233
90467-13007
90468-05025
90999-92004
