FJ62RG-KRC (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3F

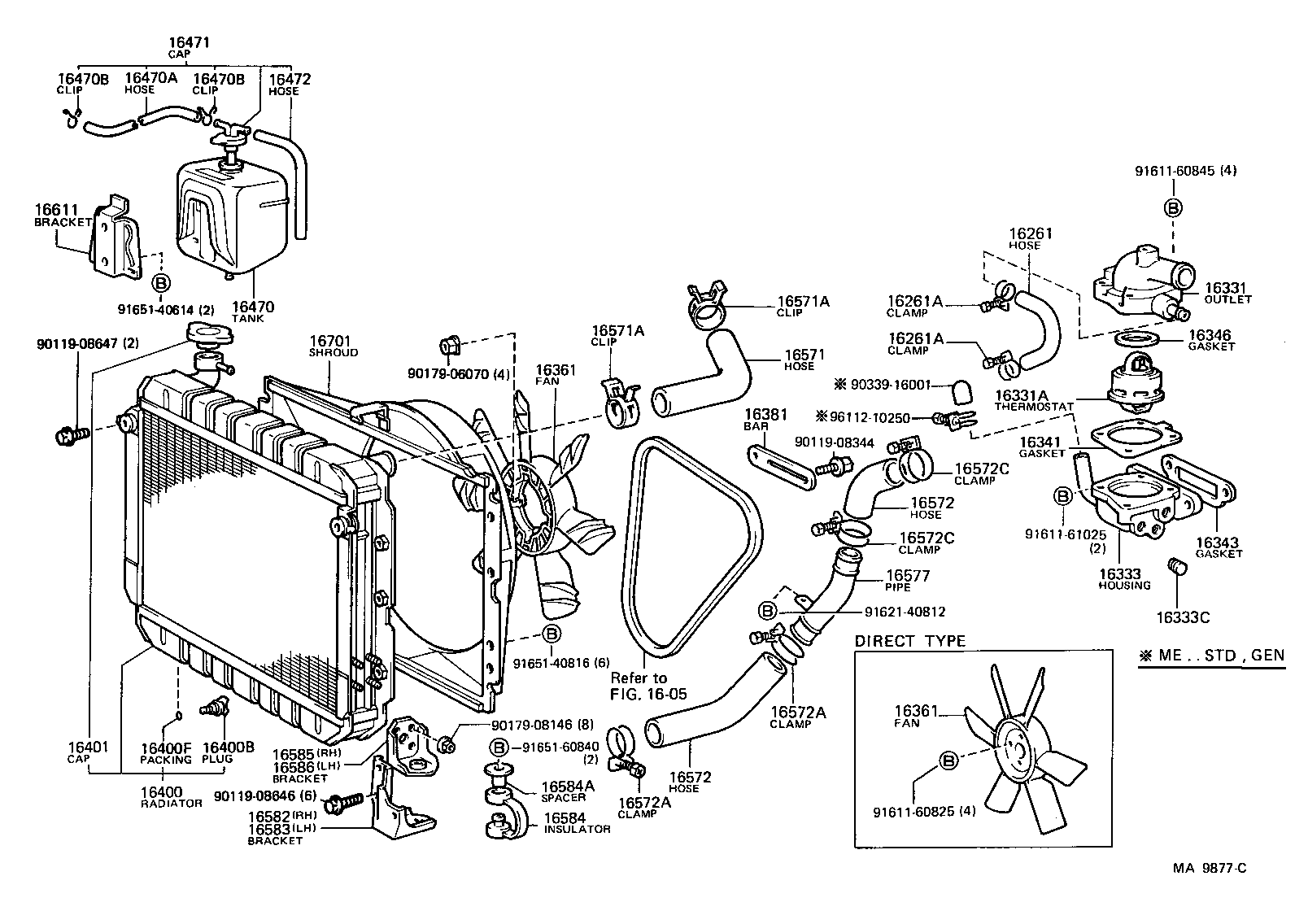

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16331 16331A 16333 16333C 16341 16343 16346 16361 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572C 16572C 16577 16582 16583 16584 16584A 16585 16586 16611 16701 9011908344 9011908646 9011908647 9017906070 9017908146 9033916001 9161160825 9161160845 9161161025 9162140812 9165140614 9165140816 9165160840 9611210250
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-61020

3F..FJ62

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

3F..FJ62

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

3F..FJ62

 2
16331 - OUTLET, WATER
16303-61010

3F..FJ62

 1
16331A - THERMOSTAT
90916-03071

3F..FJ62

*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16304-61010

3F..FJ62..GEN

W(HEATER)

 1
16331-61060

3F..FJ62..GEN

 1
16341 - GASKET, WATER OUTLET
16341-61020

3F..FJ62

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-61010

3F..FJ62

 1
16346 - GASKET, THERMOSTAT
90430-43002

3F..FJ62

 1
16361 - FAN
16361-60090

3F..FJ62..STD..GEN

 1
16361-61020

3F..FJ62..STD..GEN

TEMPERED TYPE

 1
16361 - FAN
16361-60090

3F..FJ62..STD..GEN

 1
16361-61020

3F..FJ62..STD..GEN

TEMPERED TYPE

 1
16381 - BAR, FAN BELT ADJUSTING
16381-61020

3F..FJ62

 1
16400 - RADIATOR ASSY
16400-61110

3F..FJ62..5F..SRF..VX;3F..FJ62..MTM..SRF..GEN;3F..FJ62..5F..SRF..GX..ARL

AIR CONDITIONER(DUAL,LOW ROOF)

 1
16400-61090

3F..FJ62..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

3F..FJ62

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

3F..FJ62

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

3F..FJ62

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-90A00

3F..FJ62

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12065

3F..FJ62

*H,L=580

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3F..FJ62

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3F..FJ62

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-90A00

3F..FJ62

 1
16472 - HOSE, BREATHER
85338-22020

3F..FJ62

 1
16571 - HOSE, RADIATOR, INLET
16571-61110

3F..FJ62

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

3F..FJ62

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

3F..FJ62

 2
16572 - HOSE, RADIATOR, OUTLET
16573-61040

3F..FJ62

RADIATOR SIDE

 1
16572-61020

3F..FJ62

WATER PUMP SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16573-61040

3F..FJ62

RADIATOR SIDE

 1
16572-61020

3F..FJ62

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

3F..FJ62

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

3F..FJ62

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10510

3F..FJ62

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10510

3F..FJ62

 2
16577 - PIPE, RADIATOR, NO.7
16577-61130

3F..FJ62

 1
16582 - BRACKET, RADIATOR, NO.1
16582-61010

3F..FJ62

 1
16583 - BRACKET, RADIATOR, NO.2
16583-61010

3F..FJ62

 1
16584 - INSULATOR, RADIATOR MOUNTING
16584-61010

3F..FJ62

 2
16584A - SPACER, RADIATOR MOUNTING INSULATOR
90561-09005

3F..FJ62

 2
16585 - BRACKET, RADIATOR, NO.3
16585-61010

3F..FJ62

 1
16586 - BRACKET, RADIATOR, NO.4
16586-61010

3F..FJ62

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-61020

3F..FJ62

 1
16701 - SHROUD SUB-ASSY, FAN
16711-61240

3F..FJ62..SRF..STD..GEN

AIR CONDITIONER(DUAL,LOW ROOF)

 1
16711-61241

3F..FJ62..SRF..STD..GEN

AIR CONDITIONER(DUAL,LOW ROOF)

 1
16711-61220

3F..FJ62..STD..GEN

AIR CONDITIONER(SINGLE) OR TEMPERED TYPE

 1
16711-61200

3F..FJ62..STD..GEN

 1
Common parts
90119-08344
90119-08646
90119-08647
90179-06070
90179-08146
90339-16001
91611-60825
91611-60845
91611-61025
91621-40812
91651-40614
91651-40816
91651-60840
96112-10250
