FJ62RG-KN (1987)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(8708- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58169B - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) |
2 | ||
| 63015 - BRACKET SUB-ASSY, ROOF CONSOLE | ||||
| 63015-90A00 |
HJ6#..SRF..LUB;FJ62..5F..SRF..VX;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..GX..(ARL,GEN) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A00 |
FJ62,HJ6#..SRF..LUB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A01 |
BJ60,FJ62,HJ60..SRF..GEN W(ROOF CARRIER) |
1 | ||
| 63111-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 93260-16010 | ||||

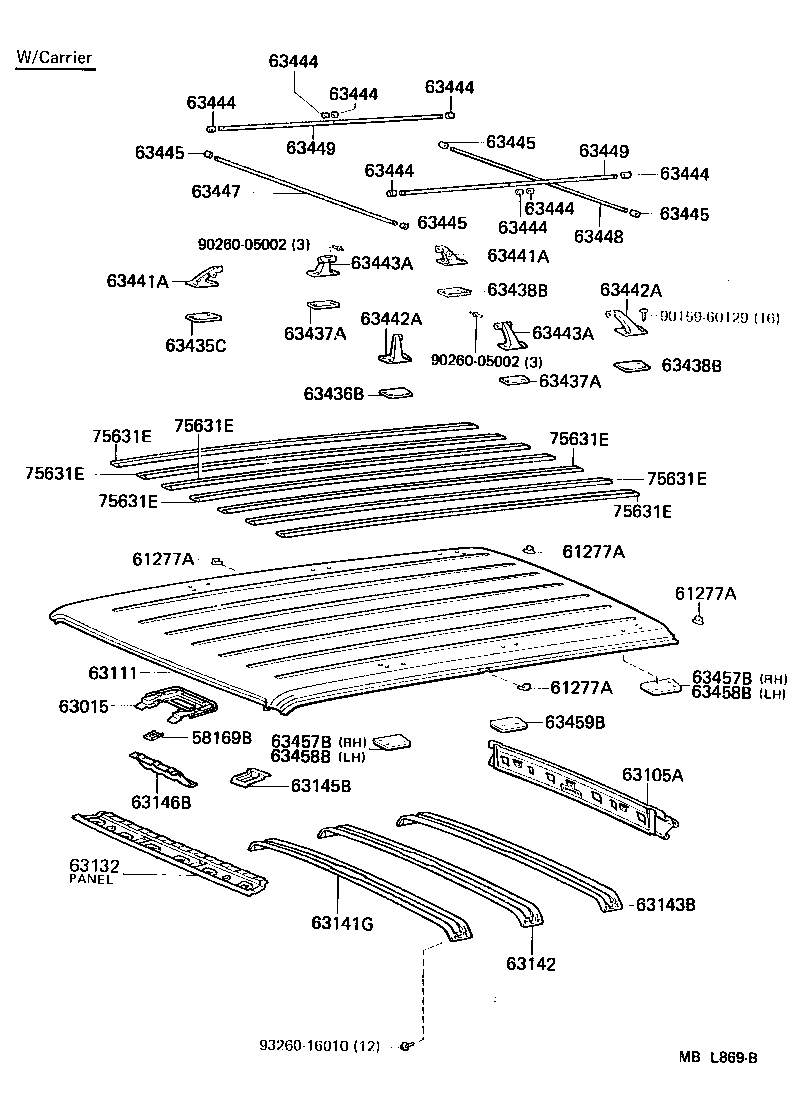

ILLUST NO. 1 OF 2(8708- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58169B - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) |
2 | ||
| 63015 - BRACKET SUB-ASSY, ROOF CONSOLE | ||||
| 63015-90A00 |
HJ6#..SRF..LUB;FJ62..5F..SRF..VX;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..GX..(ARL,GEN) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A00 |
FJ62,HJ6#..SRF..LUB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A01 |
BJ60,FJ62,HJ60..SRF..GEN W(ROOF CARRIER) |
1 | ||
| 63111-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-90A00 |
BJ60,FJ62,HJ6#..SRF |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63141-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RH |
1 | ||
| 63439-90A00 |
BJ60,FJ62,HJ60..SRF..GEN LH |
1 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RH |
1 | ||
| 63439-90A00 |
BJ60,FJ62,HJ60..SRF..GEN LH |
1 | ||
| 63441A - SUPPORT, ROOF CARRIER, NO.1 RH | ||||
| 63441-90A00 |
BJ60,FJ62,HJ60..SRF..GEN FR |
1 | ||
| 63442-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RR |
1 | ||
| 63441A - SUPPORT, ROOF CARRIER, NO.1 RH | ||||
| 63441-90A00 |
BJ60,FJ62,HJ60..SRF..GEN FR |
1 | ||
| 63442-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RR |
1 | ||
| 63442A - SUPPORT, ROOF CARRIER, NO.1 LH | ||||
| 63442-90A00 |
BJ60,FJ62,HJ60..SRF..GEN FR |
1 | ||
| 63441-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RR |
1 | ||
| 63442A - SUPPORT, ROOF CARRIER, NO.1 LH | ||||
| 63442-90A00 |
BJ60,FJ62,HJ60..SRF..GEN FR |
1 | ||
| 63441-90A00 |
BJ60,FJ62,HJ60..SRF..GEN RR |
1 | ||
| 63443A - SUPPORT, ROOF CARRIER, NO.2 | ||||
| 63443-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63443A - SUPPORT, ROOF CARRIER, NO.2 | ||||
| 63443-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
8 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
4 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
1 | ||
| 63448 - BAR, ROOF CARRIER, REAR | ||||
| 63448-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
1 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-90A00 |
BJ60,FJ62,HJ60..SRF..GEN |
2 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-90A00 |
BJ60..LHD..GEN;FJ62,HJ60..SRF..GEN |
2 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-90A00 |
BJ60..LHD..GEN;FJ62,HJ60..SRF..GEN |
2 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-90A00 |
BJ60..LHD..GEN;FJ62,HJ60..SRF..GEN |
2 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-90A00 |
BJ60..LHD..GEN;FJ62,HJ60..SRF..GEN |
2 | ||
| 63459B - RETAINER, ROOF CARRIER, NO.2 | ||||
| 63459-90A00 |
BJ60..LHD..GEN;FJ62,HJ60..SRF..GEN |
2 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
BJ60,FJ62,HJ60..SRF..GEN |
7 | ||
| Common parts | ||||
| 90159-60129 | ||||
| 90260-05002 | ||||
| 93260-16010 | ||||

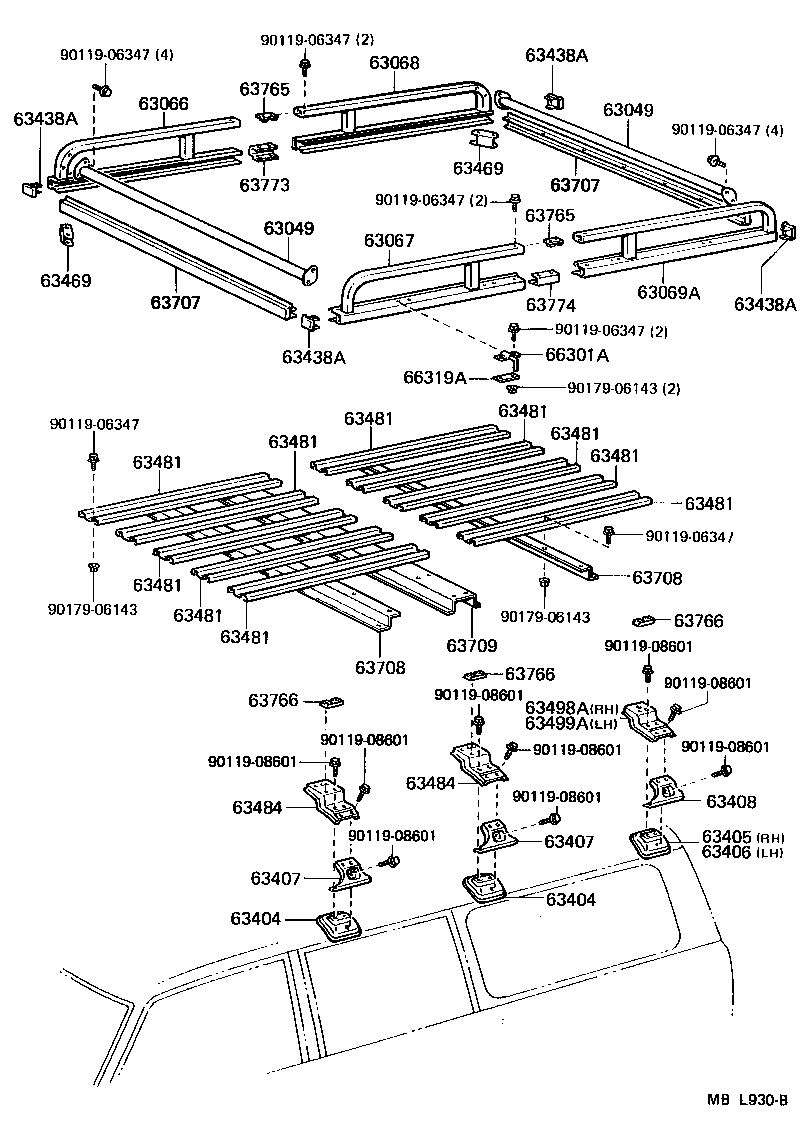

ILLUST NO. 2 OF 2(8708- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90A05 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90A05 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90A05 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90A05 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63404 - LEG SUB-ASSY, ROOF RACK, FRONT | ||||
| 63404-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63404 - LEG SUB-ASSY, ROOF RACK, FRONT | ||||
| 63404-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63407-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63408 - SUPPORT SUB-ASSY, ROOF RACK LEG, REAR | ||||
| 63408-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) FRONT |
2 | ||
| 63439-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) REAR |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) FRONT |
2 | ||
| 63439-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) REAR |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) FRONT |
2 | ||
| 63439-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) REAR |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) FRONT |
2 | ||
| 63439-90K00 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) REAR |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
4 | ||
| 63498A - STAY, ROOF RACK, REAR RH | ||||
| 63498-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63499A - STAY, ROOF RACK, REAR LH | ||||
| 63499-90A01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90A01 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63773-90K01 |
BJ60,FJ62,HJ60..SRF..(GEN,ME) |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
8 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
