FJ62RG-KN (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 52108A 52109A 52151E 52152 52152B 52153 52153A 52153B 52154B 52155A 52156A 52173D 52174D 52185B 52186B 52461 9011212041 9011212041 9015960197 9017908009 9017908146 9017908146 9017908146 9017912058 9017912058 9017912058 9017912058 9162140816 9165540825 9165561030 9165561030 9165561030 9165561030 9165961222 9165961222
Part # Description Qty Price
52108A - BUMPER SUB-ASSY, REAR SIDE, RH
52108-90A00

BJ60,FJ62,HJ6#

 1
52109A - BUMPER SUB-ASSY, REAR SIDE, LH
52109-90A00

BJ60,FJ62,HJ6#

 1
52151E - BAR, REAR BUMPER
52151-90A01

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52151-60100

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52151-60041

FJ62,HJ60..GX..GEN

CHROME

 1
52152 - BAR, REAR BUMPER, RH
52152-90A01

FJ62,HJ60..GX..GEN

CHROME

 1
52152-90A06

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

W(STEP BUMPER)

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-90A01

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52106-60010

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52153 - BAR, REAR BUMPER, LH
52153-90A05

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52153-90A01

FJ62,HJ60..LUB..GX..GEN

CHROME

 1
52153A - STAY, REAR BUMPER SIDE, RH
52153-60060

BJ60,FJ62,HJ6#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-60010

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52107-90A00

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52154B - STAY, REAR BUMPER SIDE, LH
52154-60010

BJ60,FJ62,HJ6#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-60030

BJ60,FJ62,HJ6#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-60010

BJ60,FJ62,HJ6#

 1
52173D - REINFORCEMENT, REAR BUMPER BAR, RH
52173-60040

BJ60,FJ62,HJ6#

 1
52174D - REINFORCEMENT, REAR BUMPER BAR, LH
52174-60040

BJ60,FJ62,HJ6#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60020

BJ60,FJ62,HJ6#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-60010

BJ60,FJ62,HJ6#

 1
52461 - PAD, REAR BUMPER, CENTER
52057-60010

BJ60,FJ62,HJ6#

 1
Common parts
90112-12041
90159-60197
90179-08009
90179-08146
90179-12058
91621-40816
91655-40825
91655-61030
91659-61222

(8708- )GEN,ME

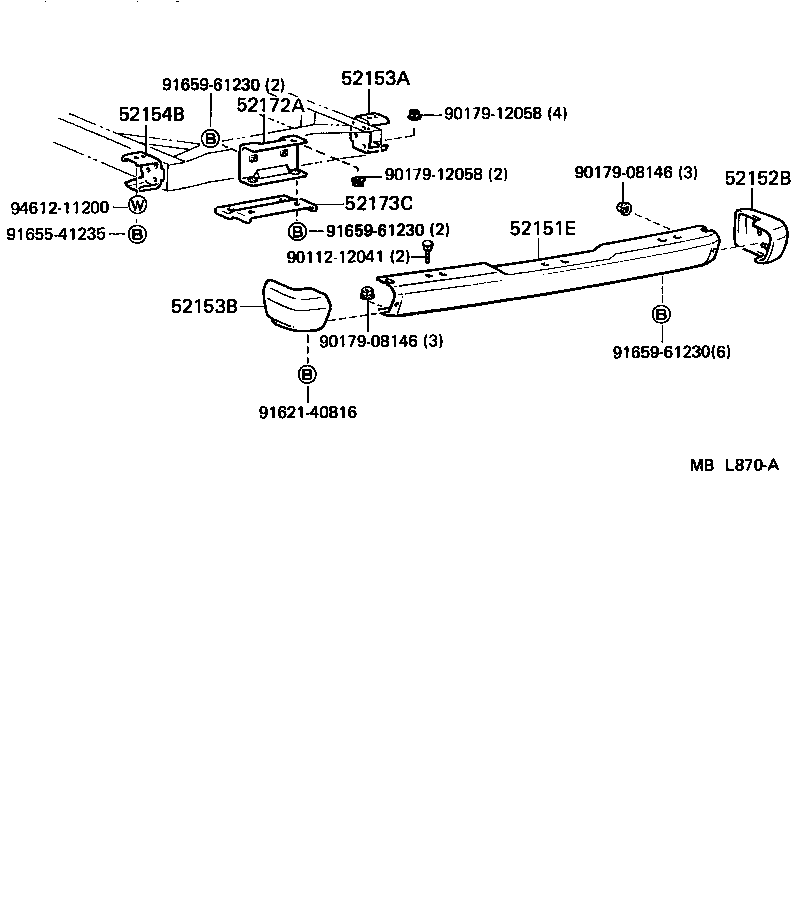

Click highlighted areas on diagram

diagram 52151E 52152B 52153A 52153B 52154B 52172A 52173C 9011212041 9017908146 9017908146 9017912058 9017912058 9162140816 9165541235 9165961230 9165961230 9165961230 9461211200
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52151-90A01

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52151-60100

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52151-60041

FJ62,HJ60..GX..GEN

CHROME

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-90A01

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52106-60010

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52153A - STAY, REAR BUMPER SIDE, RH
52153-60060

BJ60,FJ62,HJ6#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-60010

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52107-90A00

FJ62,HJ60..LUB..GX..GEN

W(STEP BUMPER)

 1
52154B - STAY, REAR BUMPER SIDE, LH
52154-60010

BJ60,FJ62,HJ6#

 1
52172A - REINFORCEMENT, REAR BUMPER BAR, CENTER
52172-60020

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
52173C - REINFORCEMENT, REAR BUMPER, NO.3
52173-60050

FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN

 1
Common parts
90112-12041
90179-08146
90179-12058
91621-40816
91655-41235
91659-61230
94612-11200
