FJ62LG-PZV (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K04 | ||||
| 88718-90K27 | ||||
| 88895-60010 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91611-B0835 | ||||
| 91651-40616 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
(8411- )FJ62..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90A04 |
BJ60,FJ62..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88469-22010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-30280 |
FJ62..HRF W/*ODAC |
1 | ||
| 88471-30280 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME W/*ODAC |
1 | ||
| 88470-14010 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-90A01 |
BJ60,FJ6#,HJ60..LHD..(GEN,ME) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
HJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME 400G |
2 | ||
| 90986-02001 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-90A04 |
FJ62 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90A15 |
FJ62..LHD..HRF W/*ODAC |
1 | ||
| 88712-90A09 |
FJ62..LHD |
1 | ||
| 88712-90A15 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME W/*ODAC |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-90A07 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-90A08 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90A07 |
BJ60,FJ62..LHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-90A02 |
FJ62 |
1 | ||
| Common parts | ||||
| 82711-30170 | ||||
| 88467-14040 | ||||
| 88688-90A04 | ||||
| 88688-90A05 | ||||
| 88718-90A04 | ||||
| 88718-90A17 | ||||
| 88718-90A18 | ||||
| 88718-90A22 | ||||
| 90099-14044 | ||||
| 90099-32073 | ||||
| 90119-08301 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90480-01345 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91665-40620 | ||||
| 93385-16014 | ||||
(8411- )FJ62,HJ60..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90A15 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716-90A15 |
FJ62..LHD..HRF |
1 | ||
| 88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C | ||||
| 88716-90A38 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716-90A14 |
FJ62..HRF |
1 | ||
| 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D | ||||
| 88716-90A39 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716-90A20 |
FJ62..HRF |
1 | ||
| 88716-90A20 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88716-90A16 |
FJ62..HRF |
1 | ||
| 88716-90A30 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88717-90A07 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88717-90A03 |
FJ62..HRF |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88717-90A05 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88717-90A15 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88717-90A05 |
FJ62..HRF |
1 | ||
| 88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C | ||||
| 88717-90A01 |
FJ62..HRF |
1 | ||
| 88717-90A14 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D | ||||
| 88717-90A02 |
FJ62..LHD..HRF |
1 | ||
| 88717-90A02 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88645-10020 |
FJ62..HRF |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-90A06 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88690-90A06 |
FJ62..HRF |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88721-90A13 |
FJ62..HRF |
1 | ||
| 88721-90A13 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88721-90A17 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88721-90A11 |
FJ62..HRF |
1 | ||
| 88721-90A15 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-90A18 |
FJ62..HRF |
1 | ||
| 88712-90A24 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3 | ||||
| 88712-90A17 |
FJ62..HRF |
1 | ||
| 88712-90A17 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90A18 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716-90A18 |
FJ62..LHD..HRF |
1 | ||
| Common parts | ||||
| 88469-22010 | ||||
| 88668-90A00 | ||||
| 88688-90A00 | ||||
| 88688-90A14 | ||||
| 88688-90A15 | ||||
| 88688-90A16 | ||||
| 88688-90A17 | ||||
| 88688-90A18 | ||||
| 88688-90A19 | ||||
| 88688-90A20 | ||||
| 88718-90A07 | ||||
| 88718-90A10 | ||||
| 88718-90A11 | ||||
| 88718-90A12 | ||||
| 88718-90A13 | ||||
| 88718-90A19 | ||||
| 88718-90A20 | ||||
| 88718-90A21 | ||||
| 88718-90A24 | ||||
| 88718-90A25 | ||||
| 90099-32073 | ||||
| 90179-08146 | ||||
| 90463-12014 | ||||
| 91616-40820 | ||||
| 91651-40816 | ||||
| 91651-40830 | ||||
| 91665-40616 | ||||

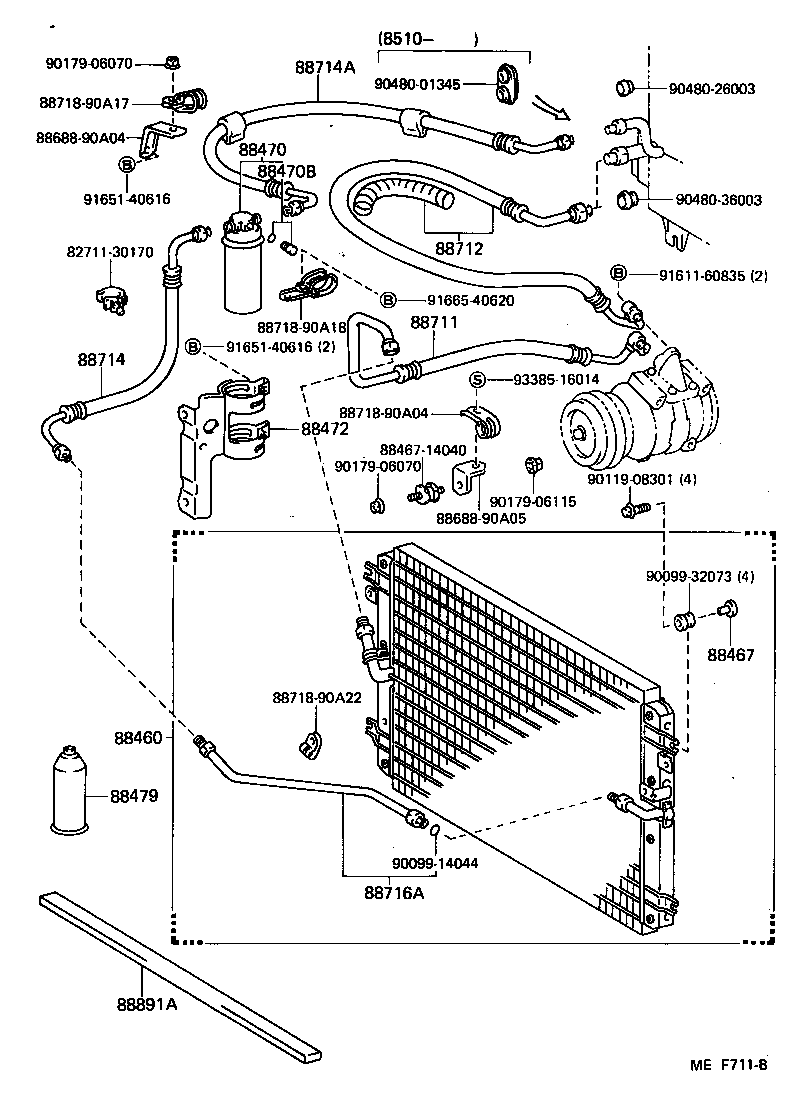

(8411- )FJ62..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90A04 |
BJ60,FJ62..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88469-22010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-30280 |
FJ62..HRF W/*ODAC |
1 | ||
| 88471-30280 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME W/*ODAC |
1 | ||
| 88470-14010 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
BJ60,FJ6#,HJ60..ARL,GEN,ME |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-90A01 |
BJ60,FJ6#,HJ60..LHD..(GEN,ME) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
HJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME 400G |
2 | ||
| 90986-02001 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-90A04 |
FJ62 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90A15 |
FJ62..LHD..HRF W/*ODAC |
1 | ||
| 88712-90A09 |
FJ62..LHD |
1 | ||
| 88712-90A15 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME W/*ODAC |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-90A07 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-90A08 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90A07 |
BJ60,FJ62..LHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-90A02 |
FJ62 |
1 | ||
| Common parts | ||||
| 82711-30170 | ||||
| 88467-14040 | ||||
| 88688-90A04 | ||||
| 88688-90A05 | ||||
| 88718-90A04 | ||||
| 88718-90A17 | ||||
| 88718-90A18 | ||||
| 88718-90A22 | ||||
| 90099-14044 | ||||
| 90099-32073 | ||||
| 90119-08301 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90480-01345 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91665-40620 | ||||
| 93385-16014 | ||||
(8510- )FJ62,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88713B - HOSE, COOLER REFRIGERANT SUCTION, NO.4 | ||||
| 88712-90A20 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88714J - HOSE, COOLER REFRIGERANT LIQUID, NO.3 | ||||
| 88721-90A14 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-90A32 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-90A09 |
FJ62..WGG..SOB;FJ62..HRF..LUB..ME |
1 | ||
| Common parts | ||||
| 88718-90A13 | ||||
| 88718-90A26 | ||||
| 88718-90A27 | ||||
| 91651-40614 | ||||
| 93385-16016 | ||||
