FJ62LG-PNCV (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )3F..4FC..ME

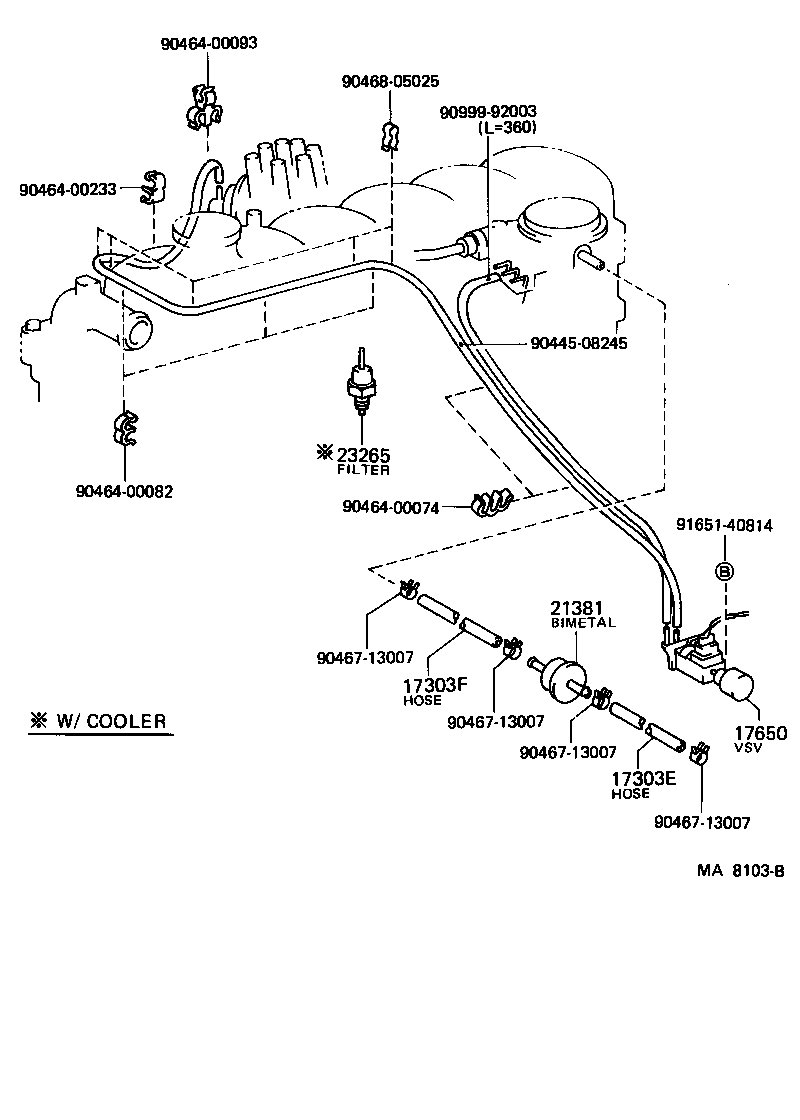

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14084 |
3F..FJ62..ARL,ME;3F..FJ62..RHD..GEN |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90445-14102 |
3F..FJ62 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35200 |
3F..FJ62..4FC..ME |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
3F..FJ62 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3F..FJ62..5F..LUB..ARL;3F..FJ62..STD..(ARL,ME);3F..FJ62..4FC..(ARL,ME) |
1 | ||
| 90917-11022 |
3F..FJ62..4FC;3F..FJ62..STD..ME;3F..FJ62..RHD..MTM;3F..FJ62..SOB..GX..GEN;3F..FJ62..LHD..5F..LUB..GEN |
1 | ||
| Common parts | ||||
| 90445-08245 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00093 | ||||
| 90464-00233 | ||||
| 90467-13007 | ||||
| 90468-05025 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8708- )3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
