FJ62LG-PEV (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

FRONT SEAT

diagram 73130 73140 73150 73150 73150 73173 73174 73181C 73181C 73210 73210 73220 73220 73220 73230 73230 73240 73240 73297B 73298B 9046708008 9162140614 9166160616 9354055010 9356054014
Part # Description Qty Price
Common parts
90467-08008
91621-40614
91661-60616
93540-55010
93560-54014

ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

REAR SEAT

diagram 73139B 73158 73178A 73219 73298 73299 73320B 73330 73330B 73340 73340B 73350 73350 73350 73350B 73350B 73360 73360 73370 73370 73371A 73371A 73371A 73371A 73380 73380 73390 73390 9010511007 9010511007 9018304046 9020411042 9020411042 9046708008 9354025012 9354055010
Part # Description Qty Price
Common parts
90105-11007
90183-04046
90204-11042
90467-08008
93540-25012
93540-55010

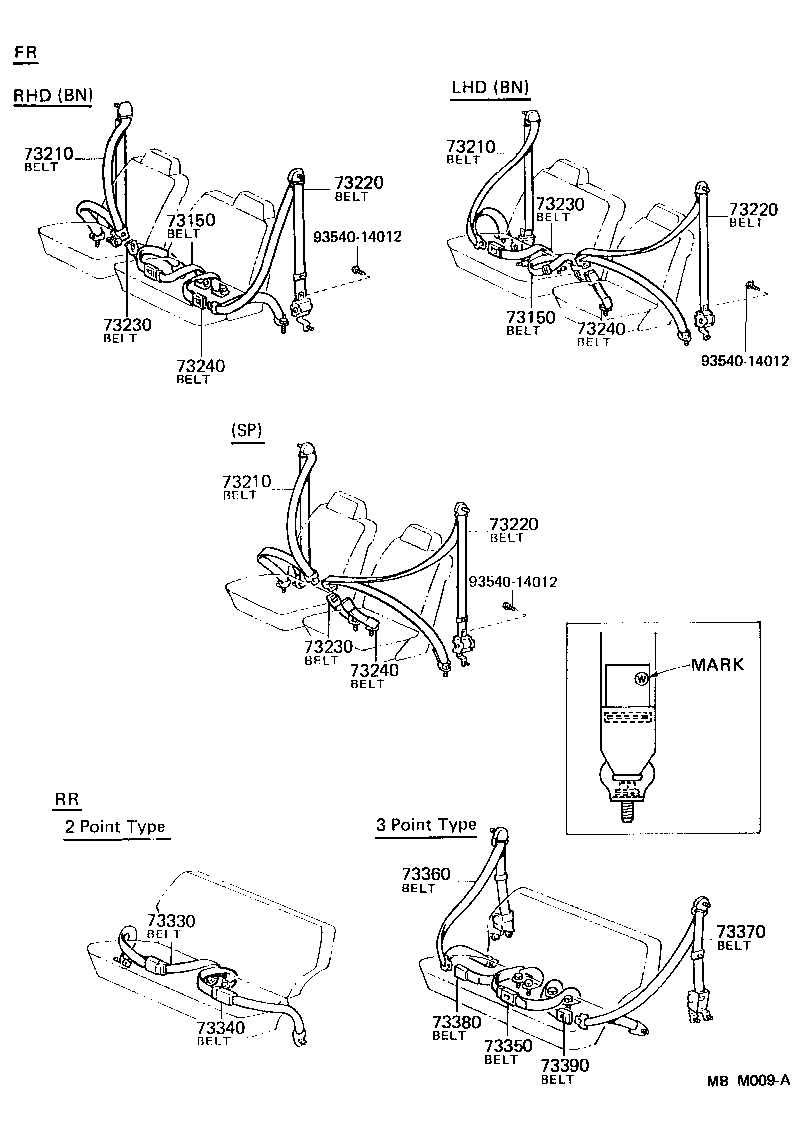

(8708- )GEN,ME

Click highlighted areas on diagram

diagram 73150 73150 73210 73210 73210 73220 73220 73220 73230 73230 73230 73240 73240 73240 73330 73340 73350 73360 73370 73380 73390 9354014012 9354014012 9354014012
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2606

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73210-90A2603

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2903

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2906

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2606

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73210-90A2603

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2903

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2906

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2606

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73210-90A2603

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2903

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73210-90A2906

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1503

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1506

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220-90A1703

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1503

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1506

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220-90A1703

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1503

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1506

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73220-90A1703

FJ62..VX..ME;FJ62..LUB..GX..ME

GRAY,TRIM1#

 1
73220-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A1713

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73230-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A1713

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73230-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A1713

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73230-90A1706

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90A2006

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73240-90A2003

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90A2006

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73240-90A2003

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90A2006

FJ62..VX..ME;FJ62..LUB..GX..ME

SEPIA BROWN,TRIM4#

 1
73240-90A2003

FJ62..VX..ME;FJ62..LUB..GX..ME

SHADOW GRAY,TRIM1#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-90A3503

FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),GRAY,TRIM1#

 1
73330-90A3506

FJ62,HJ60..LHD..VX

SEPIA BROWN,TRIM4#

 1
73330-90A3503

FJ62,HJ60..LHD..VX

GRAY,TRIM1#

 1
73330-90A3506

FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),SEPIA BROWN,TRIM4#

 1
73330-90A3503

FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),GRAY,TRIM1#

 1
73330-90A3506

FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),SEPIA BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-90A3606

FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),SEPIA BROWN,TRIM4#

 1
73330-90A3606

FJ62,HJ60..LHD..VX

SEPIA BROWN,TRIM4#

 1
73330-90A3603

FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),GRAY,TRIM1#

 1
73330-90A3603

FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),GRAY,TRIM1#

 1
73330-90A3606

FJ62,HJ60..5F..HRF..GEN;FJ62..LHD..4F..SRF..LUB

(SEPARATE SEAT),SEPIA BROWN,TRIM4#

 1
73330-90A3603

FJ62,HJ60..LHD..VX

GRAY,TRIM1#

 1
Common parts
93540-14012
