FJ62LG-PEV (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 58510B 58510C 58511E 58520C 58540C 58540D 58551B 58561B 58570B 58570C 58573A 58573A 58623B 67913 67913 67914 67914 67917A 67917A 67918A 67918A 9018905012 9018905012 9018905012 9018905012 9018905012 9018905012 9354624516 9354624516 9356654516 9356654516 9356654516 9356654516
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-90A9006

FJ62..LHD..4FC..VX

DARK BROWN,TRIM4#

 1
58510-90A9103

FJ62..LHD..4FC..VX

W(WINCH),SHADOW GRAY,TRIM1#

 1
58510-90A9003

FJ62..LHD..4FC..VX

SHADOW GRAY,TRIM1#

 1
58510-90A9106

FJ62..LHD..4FC..VX

W(WINCH),DARK BROWN,TRIM4#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-1203506

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

SEPIA BROWN,TRIM4#

 2
90467-1203503

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

SHADOW GRAY,TRIM1#

 2
90467-1203506

FJ62,HJ60..VX;HJ61..4FC..VX

SEPIA BROWN,TRIM4#

 4
90467-1203503

FJ62,HJ60..VX;HJ61..4FC..VX

SHADOW GRAY,TRIM1#

 4
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-1203503

FJ62,HJ60..VX;HJ61..4FC..VX

SHADOW GRAY,TRIM1#

 4
90467-1203506

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

SEPIA BROWN,TRIM4#

 2
90467-1203503

HJ61..HRF;FJ62,HJ60..VX;FJ62..LUB..GX..ME;FJ62..HRF..GX..ARL

SHADOW GRAY,TRIM1#

 2
90467-1203506

FJ62,HJ60..VX;HJ61..4FC..VX

SEPIA BROWN,TRIM4#

 4
58540D - CARPET ASSY, FLOOR, REAR
58540-90A9506

FJ62,HJ60..LHD..VX

DARK BROWN,TRIM4#

 1
58540-90A9503

FJ62,HJ60..LHD..VX

SHADOW GRAY,TRIM1#

 1
58540-90G0603

FJ62,HJ60..LHD..VX

W(SEPARATE FRONT SEAT),SHADOW GRAY,TRIM1#

 1
58540-90G0606

FJ62,HJ60..LHD..VX

W(SEPARATE FRONT SEAT),DARK BROWN,TRIM4#

 1
58551B - CARPET, FRONT FLOOR SIDE, RH
58551-90A0003

FJ62,HJ60..LHD..VX

SHADOW GRAY,TRIM1#

 1
58551-90A0006

FJ62,HJ60..LHD..VX

DARK BROWN,TRIM4#

 1
58561B - CARPET, FRONT FLOOR SIDE, LH
58561-90A0003

FJ62,HJ60..LHD..VX

SHADOW GRAY,TRIM1#

 1
58561-90A0006

FJ62,HJ60..LHD..VX

DARK BROWN,TRIM4#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-90A2303

FJ62,HJ60..SRF..VX

W(AIR CONDITIONER),SHADOW GRAY,TRIM1#

 1
58570-90A2306

FJ62,HJ60..SRF..VX

W(AIR CONDITIONER),DARK BROWN,TRIM4#

 1
58570-90A2406

FJ62,HJ60..SRF..VX

DARK BROWN,TRIM4#

 1
58570-90A2403

FJ62,HJ60..SRF..VX

SHADOW GRAY,TRIM1#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-90A00

BJ60,FJ62,HJ6#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-90A00

BJ60,FJ62,HJ6#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67917-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67917-90A0003

BJ60,FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917-90A0016

BJ60,FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
Common parts
90189-05012
93546-24516
93566-54516

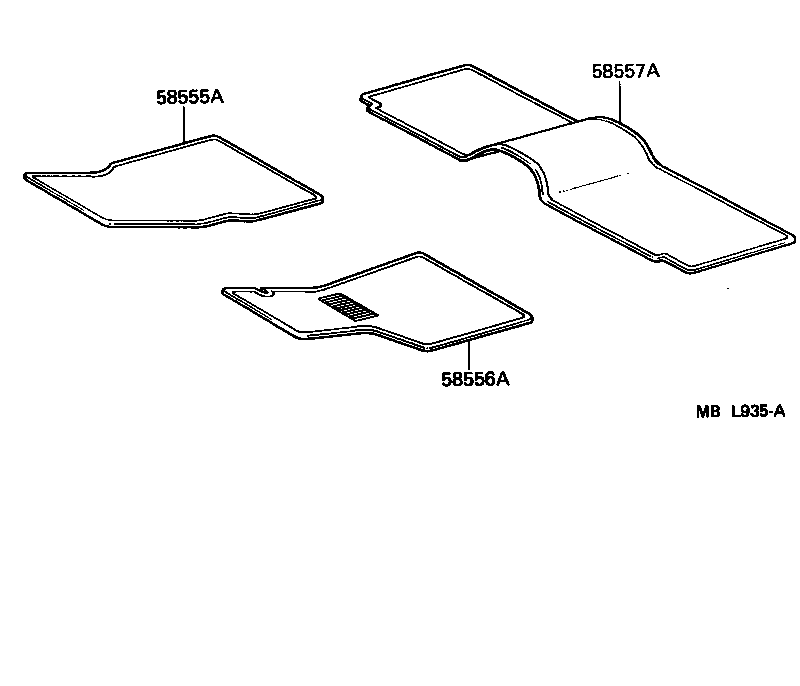

ILLUST NO. 2 OF 2(8708- )ME

Click highlighted areas on diagram

diagram 58555A 58556A 58557A
Part # Description Qty Price
58555A - MAT, FRONT, RH
58555-90A0006

FJ62..VX..ME

SEPIA BROWN,TRIM4#

 1
58555-90A0003

FJ62..VX..ME

SHADOW GRAY,TRIM1#

 1
58556A - MAT, FRONT, LH
58556-90A0006

FJ62..4FC..VX..ME

SEPIA BROWN,TRIM4#

 1
58556-90A0003

FJ62..4FC..VX..ME

SHADOW GRAY,TRIM1#

 1
58557A - MAT, REAR
58557-90A0003

FJ62..VX..ME

SHADOW GRAY,TRIM1#

 1
58557-90A0006

FJ62..VX..ME

SEPIA BROWN,TRIM4#

 1
