FJ62LG-MRC (1987)
Toyota Land Cruiser
ILLUST NO. 2 OF 9(9001-0701)
COWL & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 90119-06390 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07251 |
FJ62 ENGINE-HEATER VALVE |
1 | ||
| 90980-07003 |
FJ62,HJ6# |
1 | ||
| 90980-07227 |
FJ62 IGNITION COIL |
1 | ||
| 90980-07048 |
FJ62 MISSION-BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07251 |
FJ62 ENGINE-HEATER VALVE |
1 | ||
| 90980-07003 |
FJ62,HJ6# |
1 | ||
| 90980-07227 |
FJ62 IGNITION COIL |
1 | ||
| 90980-07048 |
FJ62 MISSION-BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07251 |
FJ62 ENGINE-HEATER VALVE |
1 | ||
| 90980-07003 |
FJ62,HJ6# |
1 | ||
| 90980-07227 |
FJ62 IGNITION COIL |
1 | ||
| 90980-07048 |
FJ62 MISSION-BODY |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07251 |
FJ62 ENGINE-HEATER VALVE |
1 | ||
| 90980-07003 |
FJ62,HJ6# |
1 | ||
| 90980-07227 |
FJ62 IGNITION COIL |
1 | ||
| 90980-07048 |
FJ62 MISSION-BODY |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-90A00 |
FJ62..MTM..(ARL,GEN) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-90G56 |
FJ62..LHD..GEN |
1 | ||
| 82131-90G57 |
FJ62..LHD..SRF..GEN W(DUAL AIR CONDITIONER) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-90A14 |
FJ62..STD;BJ60,HJ60..SOB W(CIGARETTE LIGHTER) |
1 | ||
| 82132-90A15 |
BJ60,HJ60..SOB;FJ62..STD..(ARL,GEN) W(*RWD) OR W(ONE TOUCH 2-4 SELECTOR) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-90A20 |
FJ62..STD..ME;FJ62..(GX,STD)..(ARL,GEN);BJ60,HJ6#..(GX,STD)..(ARL,ME) W(CLOCK) |
1 | ||
| 82141-90A17 |
HJ60..(GX,STD)..GEN;BJ60,FJ62..(GX,STD)..(ARL,GEN) |
1 | ||
| 82141-90A21 |
FJ62..STD..ME;HJ6#..(GX,STD)..ARL;FJ62..(GX,STD)..(ARL,GEN) W(DIFFERENTIAL LOCK) |
1 | ||
| 82141-90A19 |
HJ60..GX,STD;BJ60,FJ62,HJ61..(GX,STD)..(ARL,GEN) W(AIR CLEANER WARNING) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-90A00 |
FJ62..LHD..MTM..GEN;FJ62,HJ61..5F..(ARL,ME) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-90A01 |
BJ60,FJ62,HJ60..(GX,STD)..GEN W(BENCH SEAT) |
1 | ||
| 82166-90A00 |
BJ60,FJ62,HJ60..STD..GEN W(SEPARATE SEAT) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
FJ62..GEN,ME L=130,GX2,Y |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
FJ62..GEN,ME L=130,GX2,Y |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08136 |
FJ62..GEN,ME L=130,GX2,Y |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-90A03 |
BJ60,FJ62,HJ60..GEN |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-90A00 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-90A02 |
FJ62,HJ60..GEN,ME |
1 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A04 |
FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD FRONT |
1 | ||
| 82282-90A05 |
FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD REAR |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-90A00 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62 NO.1 |
1 | ||
| 82345-32020 |
FJ62..(GX,STD)..(ARL,GEN) NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62 NO.1 |
1 | ||
| 82345-32020 |
FJ62..(GX,STD)..(ARL,GEN) NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62 NO.1 |
1 | ||
| 82345-32020 |
FJ62..(GX,STD)..(ARL,GEN) NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62 NO.1 |
1 | ||
| 82345-32020 |
FJ62..(GX,STD)..(ARL,GEN) NO.2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-90300 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08157 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

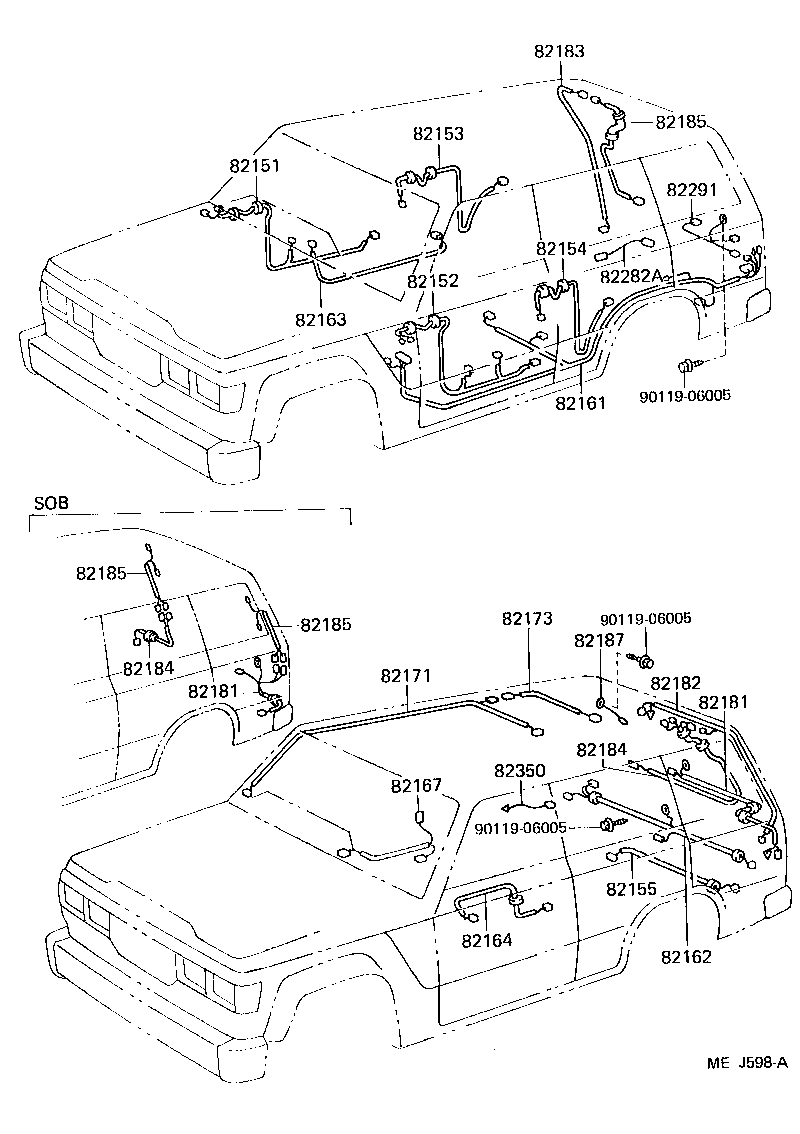

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-90A05 |
HJ60..SOB;HJ60..GX..ARL;FJ62..STD..GEN;BJ60,HJ61..GX,STD;FJ62..(GX,STD)..(ARL,ME) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-90A05 |
HJ60..SOB;HJ60..GX..ARL;FJ62..STD..GEN;BJ60,HJ61..GX,STD;FJ62..(GX,STD)..(ARL,ME) |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-90A01 |
BJ60,FJ62,HJ6# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-90A36 |
BJ60,HJ6#..GX,STD;FJ62..5F..SOB..(GX,STD);FJ62..(4F,4FC)..(GX,STD);FJ62..5F..LUB..GX..(ARL,GEN) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90A33 |
HJ61..GX;BJ60,HJ60;FJ62..SRF..(ARL,GEN);FJ62..5F..SRF..(GX,STD)..ME;FJ62..HRF..(GX,STD)..(ARL,GEN) |
1 | ||
| 82162-90A34 |
BJ60,HJ60..SOB;FJ62..STD..(ARL,GEN) W(TRAILER SOCKET SWITCH OR RR WINDOW DEFOGGER) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-90A14 |
BJ60,HJ60;FJ62,HJ61..MTM..(GX,STD) |
1 | ||
| 82163-90A16 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..MTM..SRF..GEN;HJ60..5F..SRF..LUB..GX;FJ62,HJ61..5F..SRF..GX..ARL W(DUAL AIR CONDITIONER) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-90A03 |
FJ62 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-90A10 |
BJ60,FJ62,HJ6# |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-90A00 |
BJ60,HJ60;FJ62,HJ61..SRF;FJ62..LHD..HRF..(GX,STD) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A02 |
HJ60..LHD..SOB;FJ62..SOB..(GEN,ME) W(AUXILIARY FUEL TANK) |
1 | ||
| 82181-90A01 |
FJ62..STD;BJ60,HJ60..SOB;FJ62..SOB..GX..GEN;FJ62..5F..SRF..SOB..GX..ME |
1 | ||
| 82181-90A02 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W(AUXILIARY FUEL TANK) |
1 | ||
| 82181-90A03 |
BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN);FJ62..5F..SRF..SOB..GX..ME W(RR WINDOW DEFOGGER) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A02 |
HJ60..LHD..SOB;FJ62..SOB..(GEN,ME) W(AUXILIARY FUEL TANK) |
1 | ||
| 82181-90A01 |
FJ62..STD;BJ60,HJ60..SOB;FJ62..SOB..GX..GEN;FJ62..5F..SRF..SOB..GX..ME |
1 | ||
| 82181-90A02 |
BJ60,FJ62,HJ60..SOB..(GEN,ME) W(AUXILIARY FUEL TANK) |
1 | ||
| 82181-90A03 |
BJ60,HJ60..SOB;FJ62..SOB..(ARL,GEN);FJ62..5F..SRF..SOB..GX..ME W(RR WINDOW DEFOGGER) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-90A00 |
HJ61..SRF;BJ60,HJ60..GX,STD;FJ62..5F..SRF..SOB;FJ62..LHD..5F..HRF..GX;FJ62..(4F,4FC)..(GX,STD);FJ62..5F..SRF..LUB..(ARL,GEN) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A05 |
BJ60,HJ60..SOB;FJ62..4FC..GX..ME;FJ62..HRF..GX..ME;FJ62..STD..(ARL,GEN) |
1 | ||
| 82184-90A05 |
FJ62..STD..GEN;BJ60,HJ60..SOB..(GEN,ME) |
2 | ||
| 82184-90A05 |
HJ60..5F..SOB;HJ60..LHD..STD;FJ62..4FC..GX..ME;FJ62..HRF..GX..ME;FJ62..STD..(ARL,GEN) |
1 | ||
| 82184-90A05 |
FJ62..STD..GEN;HJ60..LHD..SOB |
2 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A05 |
BJ60,HJ60..SOB;FJ62..4FC..GX..ME;FJ62..HRF..GX..ME;FJ62..STD..(ARL,GEN) |
1 | ||
| 82184-90A05 |
FJ62..STD..GEN;BJ60,HJ60..SOB..(GEN,ME) |
2 | ||
| 82184-90A05 |
HJ60..5F..SOB;HJ60..LHD..STD;FJ62..4FC..GX..ME;FJ62..HRF..GX..ME;FJ62..STD..(ARL,GEN) |
1 | ||
| 82184-90A05 |
FJ62..STD..GEN;HJ60..LHD..SOB |
2 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,HJ60..SOB;FJ62..(4F,4FC)..SOB;FJ62..5F..SOB..(ARL,GEN);FJ62..5F..SOB..(GX,VX)..ME |
2 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,HJ60..SOB;FJ62..(4F,4FC)..SOB;FJ62..5F..SOB..(ARL,GEN);FJ62..5F..SOB..(GX,VX)..ME |
2 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
BJ60,HJ60..SOB;FJ62..(4F,4FC)..SOB;FJ62..5F..SOB..(ARL,GEN);FJ62..5F..SOB..(GX,VX)..ME |
2 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A04 |
FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD FRONT |
1 | ||
| 82282-90A05 |
FJ62,HJ61;HJ60..LUB;HJ60..RHD..STD REAR |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82153-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 3 OF 3(8708- )

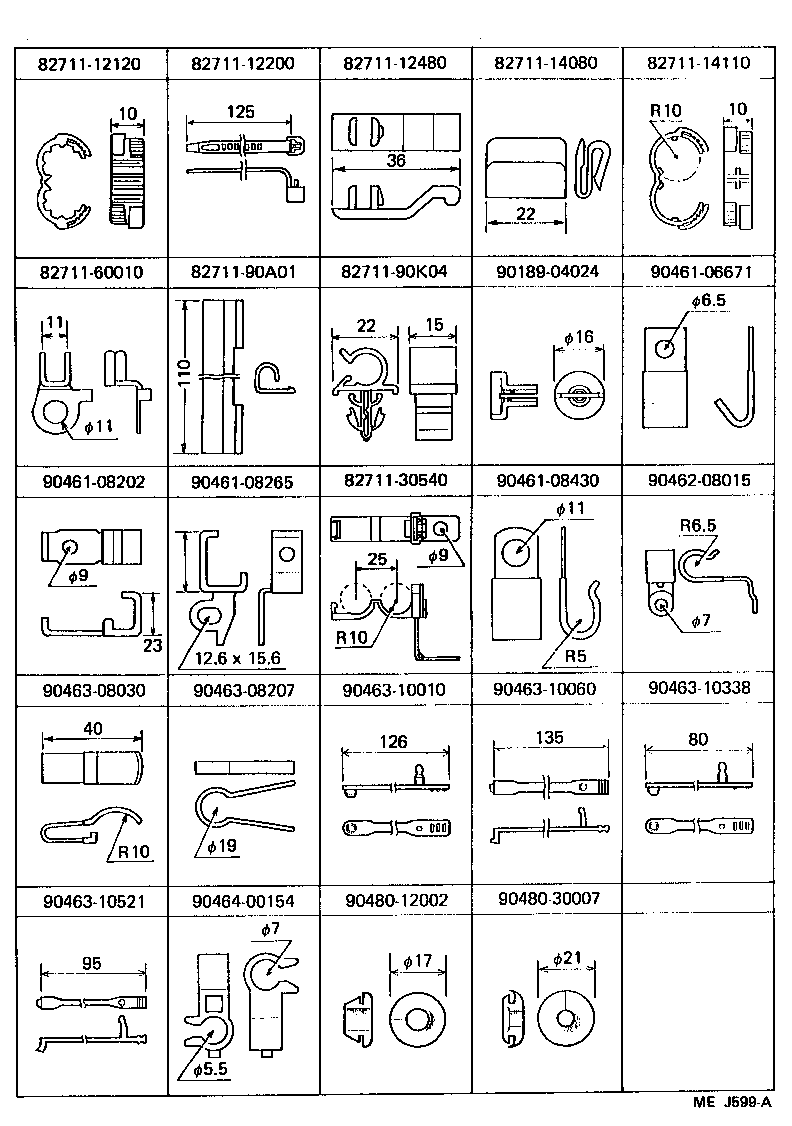

CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14080 | ||||
| 82711-14110 | ||||
| 82711-30540 | ||||
| 82711-60010 | ||||
| 82711-90A01 | ||||
| 82711-90K04 | ||||
| 90189-04024 | ||||
| 90461-06671 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08430 | ||||
| 90462-08015 | ||||
| 90463-08030 | ||||
| 90463-08207 | ||||
| 90463-10010 | ||||
| 90463-10060 | ||||
| 90463-10338 | ||||
| 90463-10521 | ||||
| 90464-00154 | ||||
| 90480-12002 | ||||
| 90480-30007 | ||||
