FJ62LG-MRC (1987)
Toyota Land Cruiser

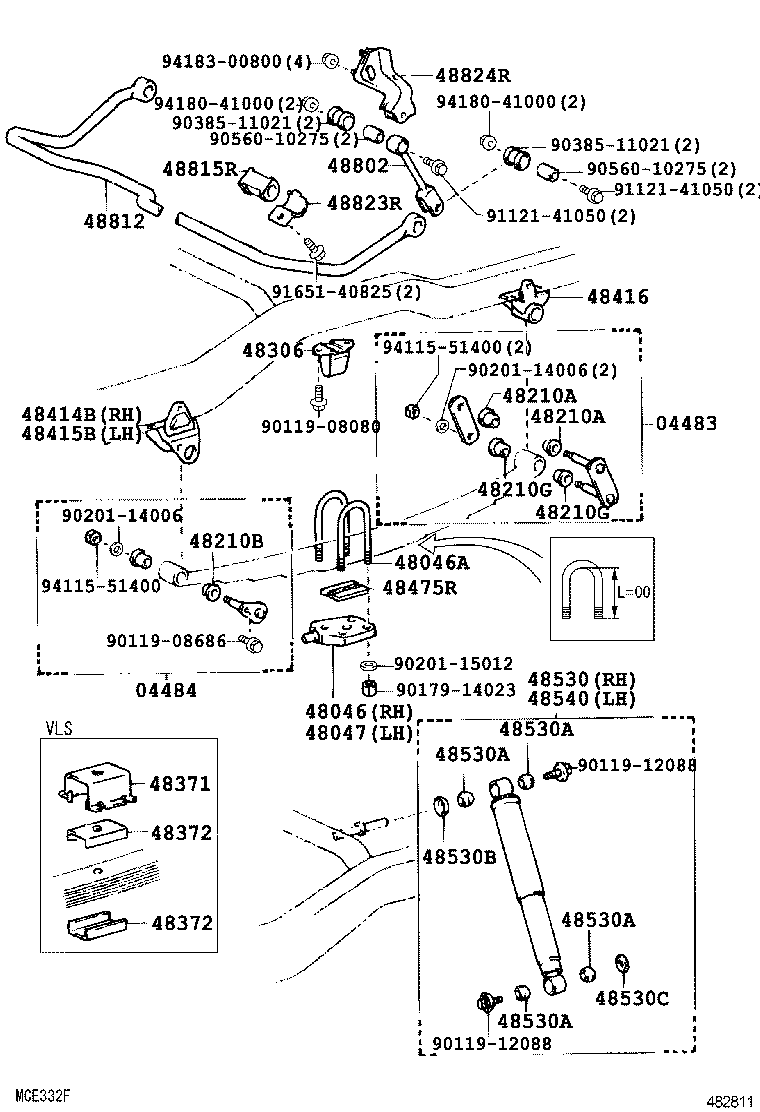

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
BJ60,FJ62,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
BJ60,FJ62,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60042 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14021 |
BJ60,FJ62,HJ60..STD L=190 |
1 | ||
| 90117-14179 |
BJ60,FJ62,HJ60..STD L=195 |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60042 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-60042 |
BJ60,FJ62,HJ6# |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69115 |
BJ60,FJ62,HJ60..STD MARK 48531-60220 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ60..STD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ60..STD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ60..STD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ60..STD |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-69035 |
BJ60,FJ62,HJ60..STD MARK 48541-60040 |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91651-40825 | ||||
| 94115-51400 | ||||
| 94180-41000 | ||||
| 94183-00800 | ||||

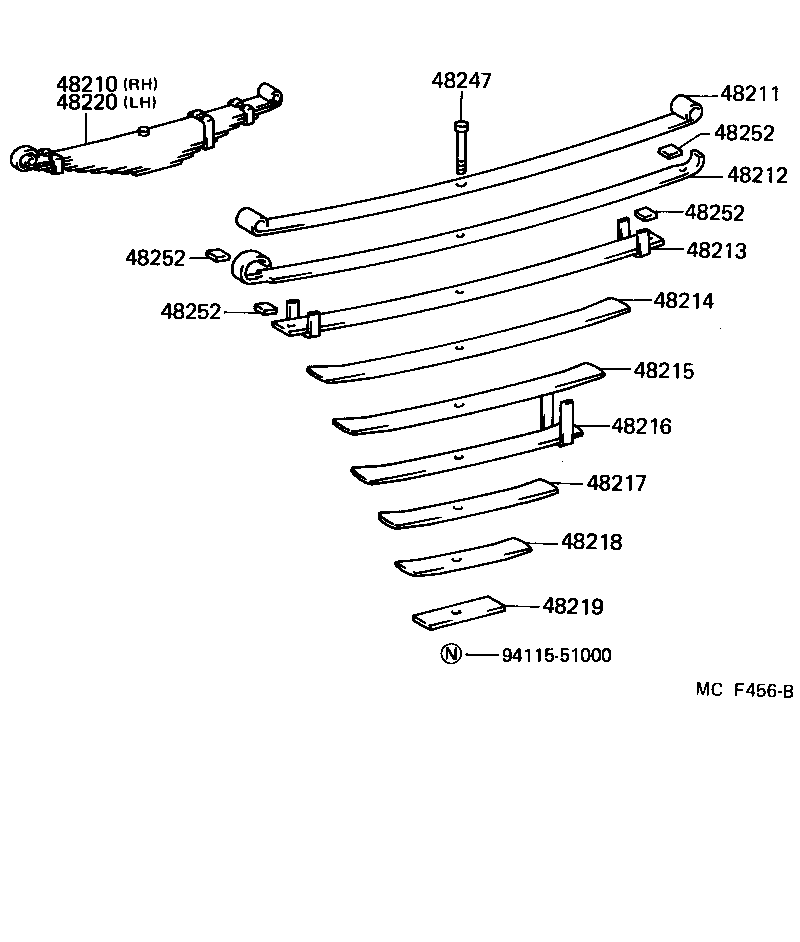

ILLUST NO. 2 OF 2(8708- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT) |
1 | ||
| 48210-60520 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48210-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT) |
1 | ||
| 48210-60521 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60520 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48211-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48211-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48211-60530 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60530 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48212-60520 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48212-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48212-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48202-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48202-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48202-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48202-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48202-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48202-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48202-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48214-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48214-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48214-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48214-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48214-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48214-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48214-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48215-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48215-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48215-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48215-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48215-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48215-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48215-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48216-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48216-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48216-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48216-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48216-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48216-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48216-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48203-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48203-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48203-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48203-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48203-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48203-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48203-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48203-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48218-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48218-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48218-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48218-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48218-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48218-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48218-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48219-60520 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48219-60530 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48219-60521 |
BJ60,FJ62,HJ60..STD DRIVER'S SEAT SIDE |
1 | ||
| 48219-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48219-60531 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),DRIVER'S SEAT SIDE |
1 | ||
| 48219-60441 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48219-60440 |
BJ60,FJ62,HJ60..STD PASSENGER SEAT SIDE |
1 | ||
| 48219-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT),PASSENGER SEAT SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60520 |
FJ62,HJ60..SRF..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT) |
1 | ||
| 48210-60440 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48210-60441 |
BJ60,FJ62,HJ60..STD |
1 | ||
| 48210-60521 |
FJ62..SRF..STD..GEN;HJ60..RHD..STD..GEN W(BENCH 2ND SEAT & PARALLEL 3RD SEAT) |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60441 |
BJ60,FJ62,HJ60..STD |
2 | ||
| 48147-27020 |
BJ60,FJ62,HJ60..STD |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ60..STD |
16 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ60..STD |
16 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ60..STD |
16 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
BJ60,FJ62,HJ60..STD |
16 | ||
| Common parts | ||||
| 94115-51000 | ||||
