FJ62LG-MRC (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

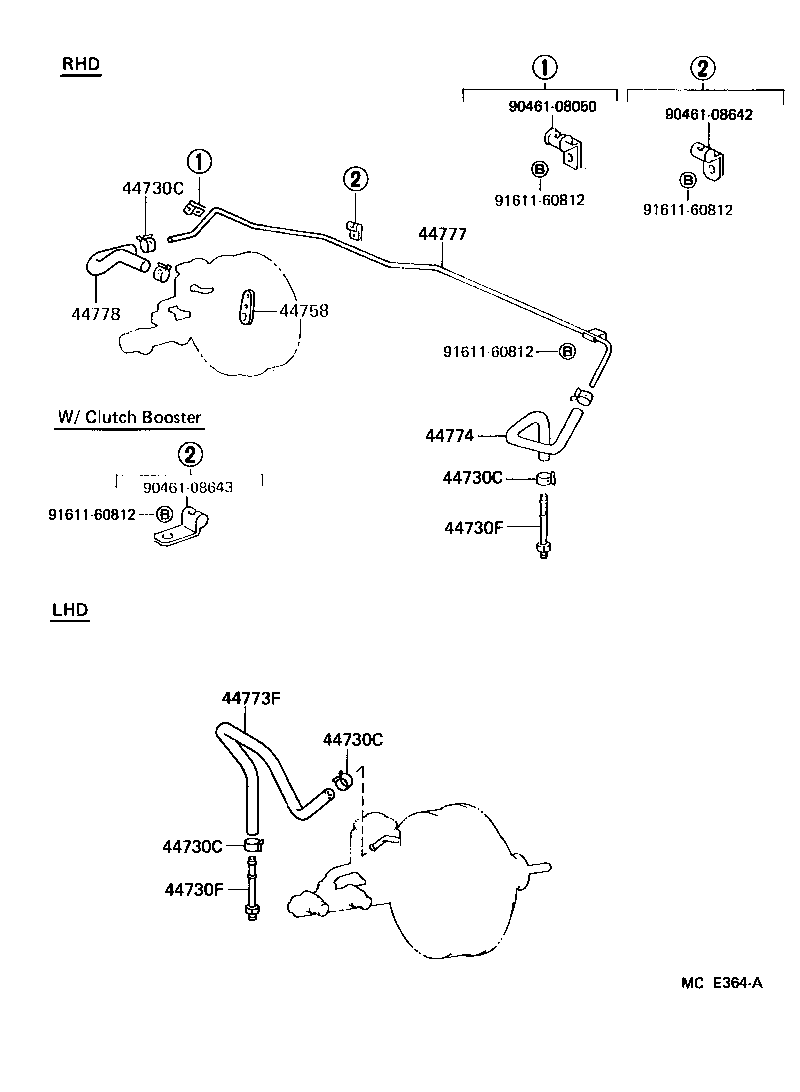

ILLUST NO. 2 OF 2(8708- )FJ62
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62..LHD |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62..LHD |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62..LHD |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62..LHD |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
FJ62 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
FJ62 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-60020 |
FJ62..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-60090 |
FJ62..LHD |
1 | ||
| Common parts | ||||
| 90461-08050 | ||||
| 90461-08642 | ||||
| 90461-08643 | ||||
| 91611-60812 | ||||

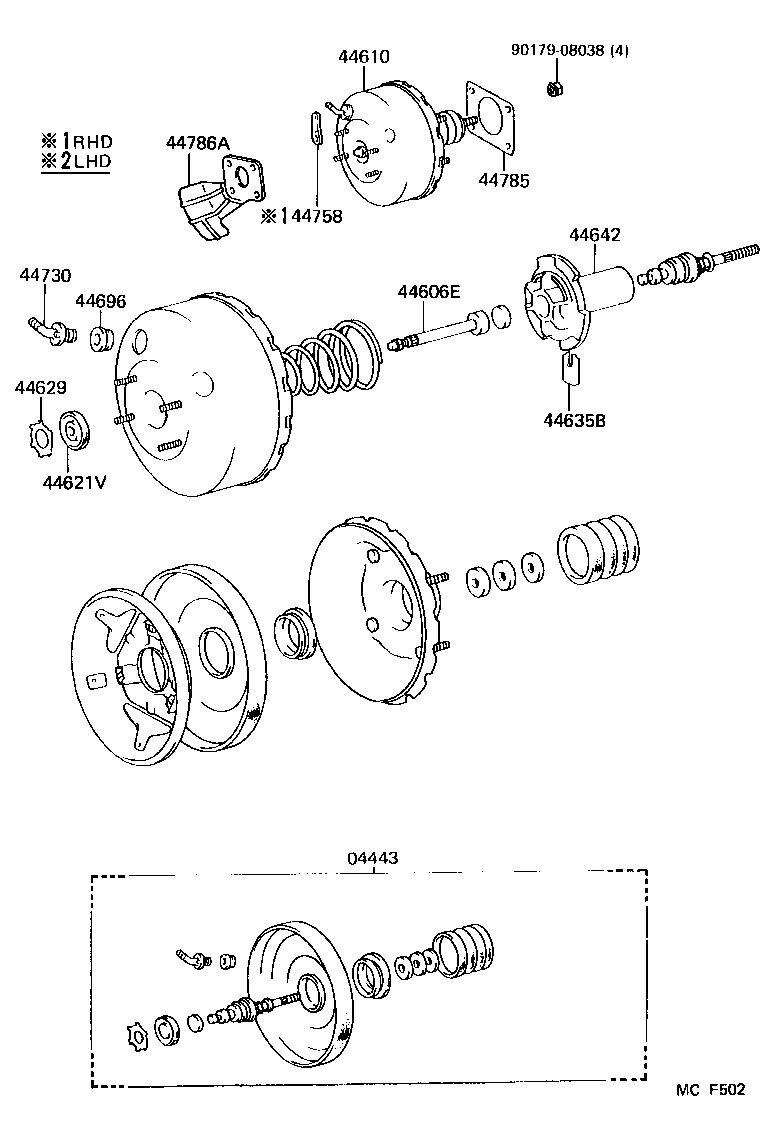

ILLUST NO. 1 OF 2(8708- )FJ62..GEN,ME
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-60210 |
FJ62..GEN |
1 | ||
| 04443-60230 |
FJ62..LHD..GEN W(FRONT DISC BRAKE) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60390 |
FJ62..GEN |
1 | ||
| 44610-60350 |
FJ62..LHD..GEN W(FRONT DISC BRAKE) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-60280 |
FJ62..LHD..GEN W(FRONT DISC BRAKE) |
1 | ||
| 44642-60250 |
BJ60,FJ62,HJ60..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
FJ62 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
FJ62..GEN,ME |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-60020 |
FJ62..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
BJ60,FJ62,HJ6# |
1 | ||
| 44786A - INSULATOR, BRAKE BOOSTER HEAT | ||||
| 44786-60030 |
FJ62..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
