FJ62LG-MRC (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

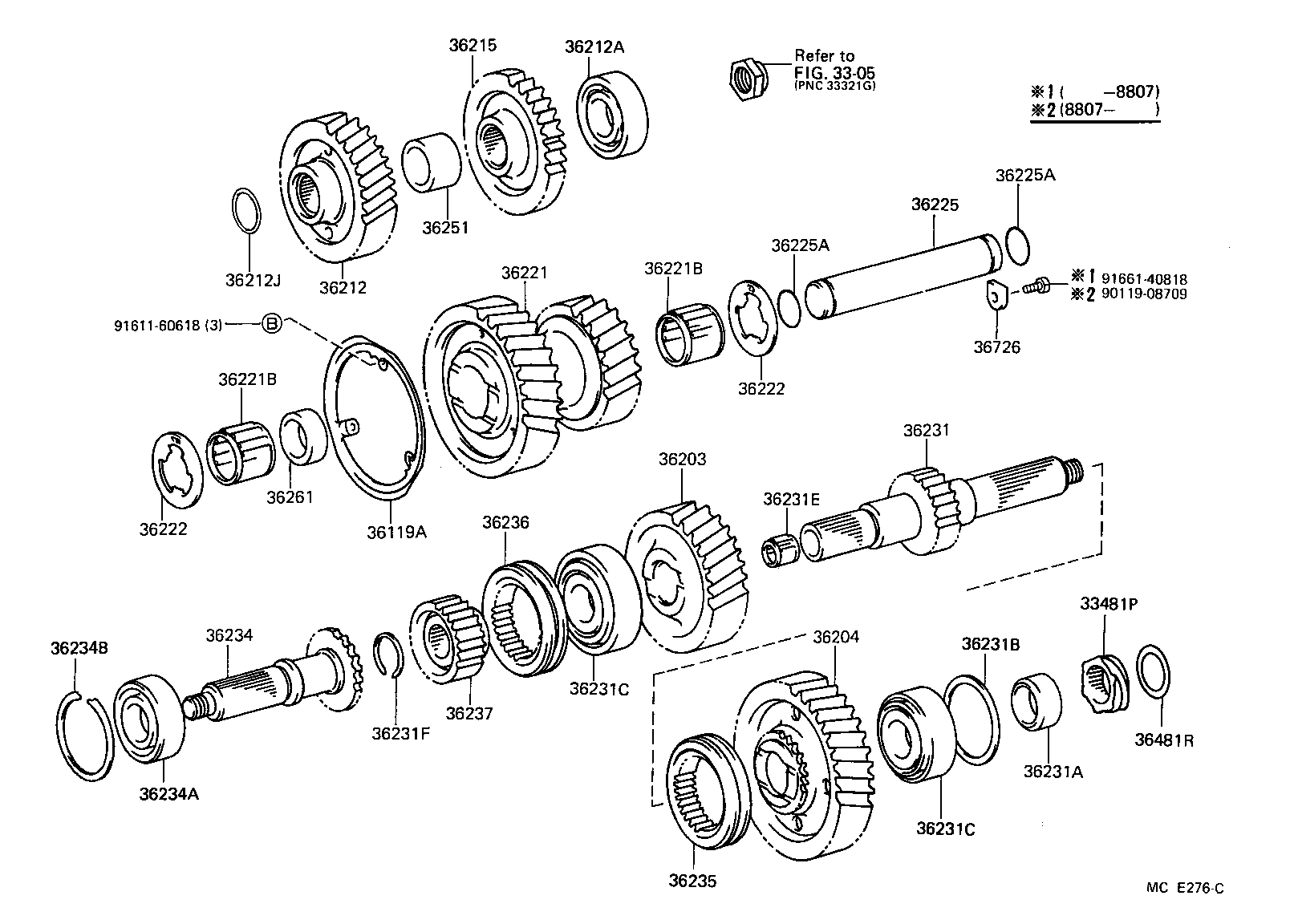

Click highlighted areas on diagram

diagram 3305 33481P 36119A 36203 36204 36212 36212A 36212J 36215 36221 36221B 36221B 36222 36222 36225 36225A 36225A 36231 36231A 36231B 36231C 36231C 36231E 36231F 36234 36234A 36234B 36235 36236 36237 36251 36261 36481R 36726 9011908709 9161160618 9166140818
Part # Description Qty Price
33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481-60070

FJ62,HJ60..STD..GEN

N=7,MARK 7:16-17

 1
33481-60060

BJ60,HJ61;FJ62..4FC;HJ60..STD;FJ62..MTM..(STD,VX);FJ62,HJ60..5F..GX..(ARL,ME)

N=6,MARK 6:15-17

 1
36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36119-60020

BJ60,FJ62,HJ6#

 1
36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36203-60050

BJ60,FJ62,HJ60..MTM

 1
36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36204-60080

BJ60,FJ62,HJ6#..MTM

 1
36212 - GEAR, TRANSFER INPUT
36212-60080

BJ60,FJ62,HJ6#..MTM

 1
36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
90363-35013

BJ60,FJ62,HJ6#

 1
36215 - GEAR, POWER TAKE-OFF DRIVE
36215-60030

BJ60,FJ62,HJ6#

 1
36221 - GEAR, TRANSFER IDLER
36221-60080

BJ60,FJ62,HJ6#..MTM

 1
36221B - BEARING (FOR TRANSFER IDLER GEAR)
90364-38012

BJ60,FJ62,HJ6#

 2
36221B - BEARING (FOR TRANSFER IDLER GEAR)
90364-38012

BJ60,FJ62,HJ6#

 2
36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST
36222-60020

BJ60,FJ62,HJ6#

 2
36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST
36222-60020

BJ60,FJ62,HJ6#

 2
36225 - SHAFT, TRANSFER IDLER GEAR
36225-60050

BJ60,FJ62,HJ6#

 1
36225A - RING, O (FOR TRANSFER IDLER SHAFT)
90301-34004

BJ60,FJ62,HJ6#

 2
36225A - RING, O (FOR TRANSFER IDLER SHAFT)
90301-34004

BJ60,FJ62,HJ6#

 2
36231 - SHAFT, TRANSFER OUTPUT, REAR
36231-60021

BJ60,FJ62,HJ6#..MTM

 1
36231A - SPACER (FOR TRANSFER OUTPUT SHAFT)
90560-35008

BJ60,FJ62,HJ6#

T=17.5

 1
36231B - SHIM (FOR TRANSFER OUTPUT SHAFT)
90564-70004

BJ60,FJ62,HJ6#

T=0.60

 1
90564-70002

BJ60,FJ62,HJ6#

T=0.40

 1
90564-70003

BJ60,FJ62,HJ6#

T=0.50

 1
90564-70006

BJ60,FJ62,HJ6#

T=0.80

 1
90564-70001

BJ60,FJ62,HJ6#

T=0.15

 1
90564-70012

BJ60,FJ62,HJ6#

T=1.40

 1
90564-70011

BJ60,FJ62,HJ6#

T=1.30

 1
90564-70010

BJ60,FJ62,HJ6#

T=1.20

 1
90564-70013

BJ60,FJ62,HJ6#

T=1.50

 1
90564-70007

BJ60,FJ62,HJ6#

T=0.90

 1
90564-70008

BJ60,FJ62,HJ6#

T=1.00

 1
90564-70005

BJ60,FJ62,HJ6#

T=0.70

 1
90564-70009

BJ60,FJ62,HJ6#

T=1.10

 1
36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
90366-35011

BJ60,FJ62,HJ6#

FR

 1
90366-35053

BJ60,FJ62,HJ6#..MTM

RR

 1
36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
90366-35011

BJ60,FJ62,HJ6#

FR

 1
90366-35053

BJ60,FJ62,HJ6#..MTM

RR

 1
36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT
90364-17010

BJ60,FJ62,HJ6#

 1
36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
90520-33107

BJ60,FJ62,HJ6#

T=2.30-2.35,MARK 11

 1
90520-33110

BJ60,FJ62,HJ6#

T=2.6-2.65,MARK 17

 1
36234 - SHAFT, TRANSFER OUTPUT, FRONT
36234-60040

FJ62..STD..GEN

 1
36234-60031

BJ60,FJ62,HJ6#

 1
36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
90363-35013

BJ60,FJ62,HJ6#

 1
36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
90521-75023

BJ60,FJ62,HJ6#

T=1.6

 1
36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235-60020

BJ60,FJ62,HJ6#

 1
36236 - SLEEVE, FRONT DRIVE CLUTCH
36235-60020

BJ60,FJ62,HJ6#

 1
36236-60050

FJ62..STD..GEN

 1
36237 - HUB, TRANSFER CLUTCH
36237-60020

BJ60,FJ62,HJ6#

 1
36251 - SPACER, TRANSFER INPUT SHAFT
36251-60030

BJ60,FJ62,HJ6#

 1
36261 - SPACER, TRANSFER IDLER GEAR
90560-38003

BJ60,FJ62,HJ6#

 1
36481R - WASHER, PLATE (FOR SPEEDMETER DRIVE GEAR)
90201-35002

BJ60,FJ62,HJ6#

 1
36726 - PLATE, LOCK (FOR TRANSFER GEAR)
36726-60020

BJ60,FJ62,HJ6#

 1
Common parts
90119-08709
91611-60618
91661-40818
Linked diagrams
3305
