FJ62LG-MNZ (1987)
Toyota Land Cruiser

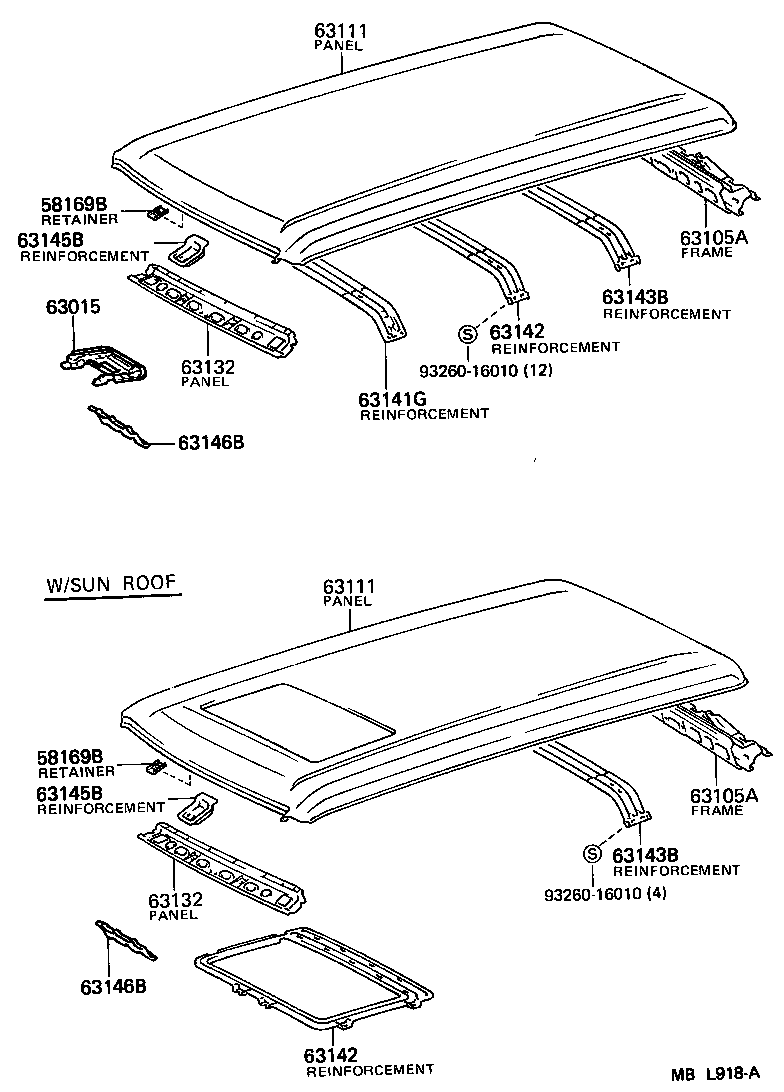

ILLUST NO. 1 OF 3(8708- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58169B - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) |
2 | ||
| 58169B - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
HJ6#..LUB;FJ62..SOB..VX;FJ62..4F..SOB..GX;FJ62..(4F,4FC)..LUB;FJ62..5F..LUB..VX..ME;FJ62..5F..(GX,VX)..(ARL,GEN) |
2 | ||
| 63015 - BRACKET SUB-ASSY, ROOF CONSOLE | ||||
| 63015-90A01 |
HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..GX..(ARL,GEN) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A10 |
FJ62,HJ60..HRF..LUB..GEN |
1 | ||
| 63105-90A09 |
FJ62,HJ60..HRF..LUB..GEN W(MAGNET LOCK) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A10 |
FJ62,HJ60..HRF..LUB..GEN |
1 | ||
| 63105-90A09 |
FJ62,HJ60..HRF..LUB..GEN W(MAGNET LOCK) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A02 |
FJ62,HJ6#..HRF..(GX,VX) W(SUN ROOF) |
1 | ||
| 63111-90A03 |
FJ62,HJ6#..HRF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A02 |
FJ62,HJ6#..HRF..(GX,VX) W(SUN ROOF) |
1 | ||
| 63111-90A03 |
FJ62,HJ6#..HRF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63043-90A00 |
FJ62,HJ6#..HRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30010 |
FJ62,HJ6#..HRF..(GX,VX) W(SUN ROOF) |
1 | ||
| 63044-90A00 |
FJ62,HJ60..HRF..GX..GEN |
1 | ||
| 63044-90A00 |
FJ62,HJ6#..HRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30010 |
FJ62,HJ6#..HRF..(GX,VX) W(SUN ROOF) |
1 | ||
| 63044-90A00 |
FJ62,HJ60..HRF..GX..GEN |
1 | ||
| 63044-90A00 |
FJ62,HJ6#..HRF |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63045-90A00 |
FJ62,HJ60..LHD..HRF..(GX,STD) |
1 | ||
| 63045-90A03 |
FJ62..5F..HRF..GEN W(DUAL AIR CONDITIONER) |
1 | ||
| 63045-90A03 |
FJ62,HJ60..HRF..(GX,STD) W(TRANSVERSE SEAT) |
1 | ||
| 63045-90A04 |
HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..GX..(ARL,GEN) W(TRANSVERSE SEAT & SUN ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63045-90A00 |
FJ62,HJ60..LHD..HRF..(GX,STD) |
1 | ||
| 63045-90A03 |
FJ62..5F..HRF..GEN W(DUAL AIR CONDITIONER) |
1 | ||
| 63045-90A03 |
FJ62,HJ60..HRF..(GX,STD) W(TRANSVERSE SEAT) |
1 | ||
| 63045-90A04 |
HJ6#..HRF;FJ62..HRF..VX;FJ62..HRF..GX..(ARL,GEN) W(TRANSVERSE SEAT & SUN ROOF) |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 63146B - REINFORCEMENT, WINDSHIELD HEADER PANEL, NO.2 | ||||
| 63146-90A00 |
FJ62,HJ6#..HRF |
1 | ||
| 63146B - REINFORCEMENT, WINDSHIELD HEADER PANEL, NO.2 | ||||
| 63146-90A00 |
FJ62,HJ6#..HRF |
1 | ||
| Common parts | ||||
| 93260-16010 | ||||

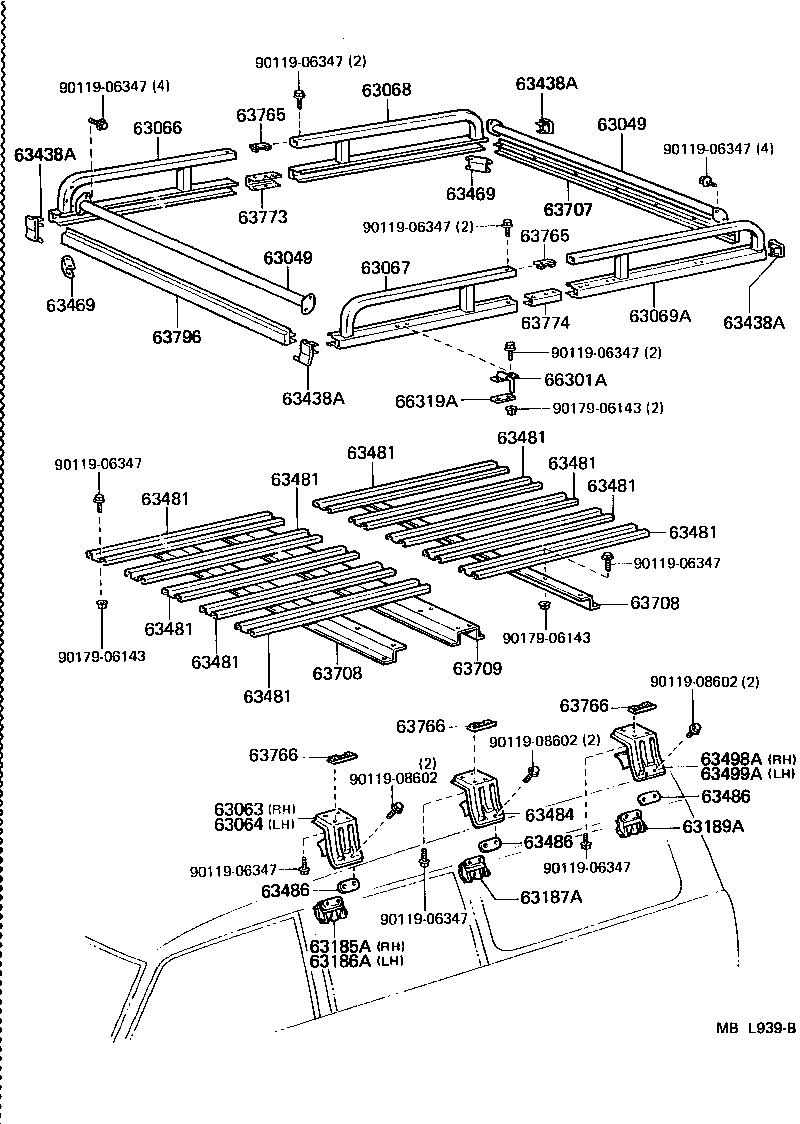

ILLUST NO. 2 OF 3(8708- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63063 - STAY SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63063-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63064 - STAY SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63064-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-90A04 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-90A04 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63068 - FRAME SUB-ASSY, ROOF RACK, LOWER REAR RH | ||||
| 63068-90A04 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63069A - FRAME SUB-ASSY, ROOF RACK, LOWER REAR LH | ||||
| 63069-90A04 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-90A01 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63185-90A01 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-90A02 |
FJ62,HJ60..HRF..LUB..GEN |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-90A01 |
FJ62,HJ60..HRF..LUB..GEN |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ62,HJ60..LHD..HRF REAR-RH |
1 | ||
| 63439-90K01 |
FJ62,HJ60..LHD..HRF FRONT-RH |
1 | ||
| 63438-90K01 |
FJ62,HJ60..LHD..HRF FRONT-LH |
1 | ||
| 63439-90K00 |
FJ62,HJ60..LHD..HRF REAR-LH |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ62,HJ60..LHD..HRF REAR-RH |
1 | ||
| 63439-90K01 |
FJ62,HJ60..LHD..HRF FRONT-RH |
1 | ||
| 63438-90K01 |
FJ62,HJ60..LHD..HRF FRONT-LH |
1 | ||
| 63439-90K00 |
FJ62,HJ60..LHD..HRF REAR-LH |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ62,HJ60..LHD..HRF REAR-RH |
1 | ||
| 63439-90K01 |
FJ62,HJ60..LHD..HRF FRONT-RH |
1 | ||
| 63438-90K01 |
FJ62,HJ60..LHD..HRF FRONT-LH |
1 | ||
| 63439-90K00 |
FJ62,HJ60..LHD..HRF REAR-LH |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ62,HJ60..LHD..HRF REAR-RH |
1 | ||
| 63439-90K01 |
FJ62,HJ60..LHD..HRF FRONT-RH |
1 | ||
| 63438-90K01 |
FJ62,HJ60..LHD..HRF FRONT-LH |
1 | ||
| 63439-90K00 |
FJ62,HJ60..LHD..HRF REAR-LH |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
4 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
4 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
10 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-90A02 |
FJ62,HJ60..LHD..HRF |
2 | ||
| 63486 - CUSHION, ROOF RACK LEG | ||||
| 63486-90A01 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63486 - CUSHION, ROOF RACK LEG | ||||
| 63486-90A01 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63486 - CUSHION, ROOF RACK LEG | ||||
| 63486-90A01 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63498A - STAY, ROOF RACK, REAR RH | ||||
| 63073-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63499A - STAY, ROOF RACK, REAR LH | ||||
| 63074-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90A01 |
BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K05 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K05 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K05 |
FJ62,HJ60..LHD..HRF |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63774 - GUSSET, ROOF RACK CENTER FRAME, LH | ||||
| 63774-90A00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 63796 - FRAME, ROOF RACK, LOWER NO.4 | ||||
| 63796-90K00 |
FJ62,HJ60..LHD..HRF |
1 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
BJ60,FJ62,HJ60..GEN,ME |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
BJ60,FJ62,HJ60..GEN,ME |
8 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-08602 | ||||
| 90179-06143 | ||||

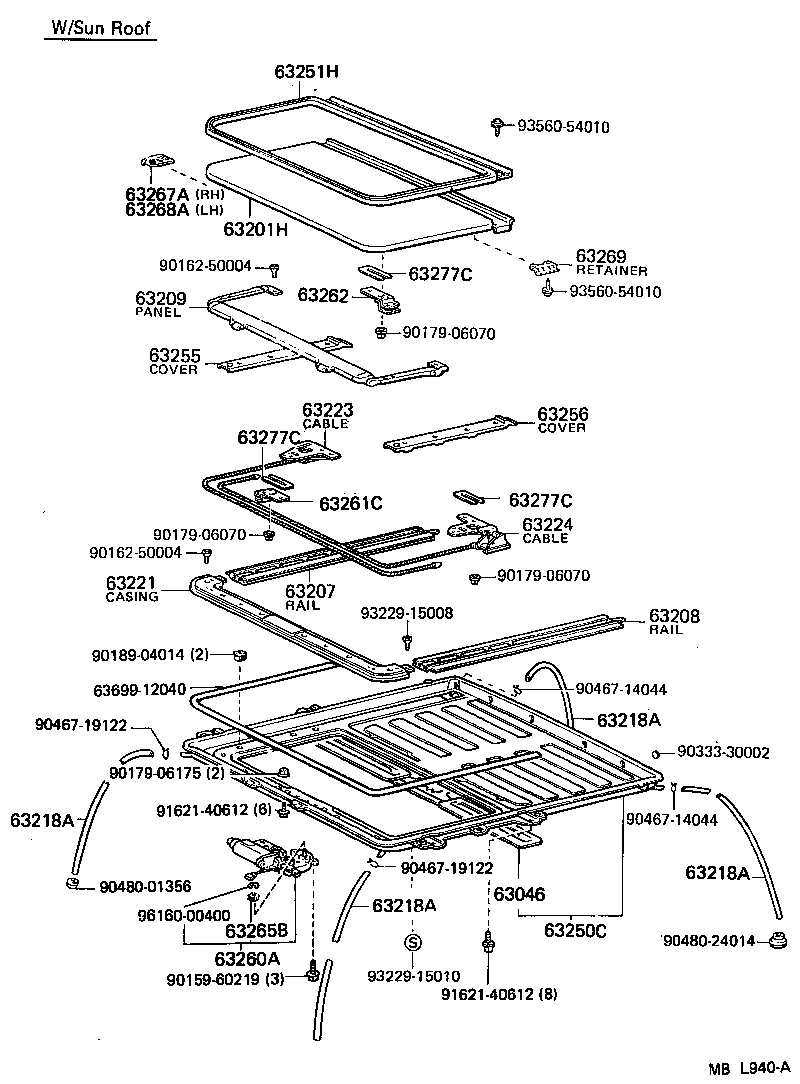

ILLUST NO. 3 OF 3(8708- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63046 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A | ||||
| 63046-90A00 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-90A01 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90A06 |
FJ62,HJ6#..HRF..(GX,VX) FRONT |
2 | ||
| 63249-90A01 |
FJ62,HJ6#..HRF..(GX,VX) REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90A06 |
FJ62,HJ6#..HRF..(GX,VX) FRONT |
2 | ||
| 63249-90A01 |
FJ62,HJ6#..HRF..(GX,VX) REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90A06 |
FJ62,HJ6#..HRF..(GX,VX) FRONT |
2 | ||
| 63249-90A01 |
FJ62,HJ6#..HRF..(GX,VX) REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90A06 |
FJ62,HJ6#..HRF..(GX,VX) FRONT |
2 | ||
| 63249-90A01 |
FJ62,HJ6#..HRF..(GX,VX) REAR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-22010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63250C - HOUSING ASSY, SLIDING ROOF | ||||
| 63250-90A03 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-90A02 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63261-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
FJ62,HJ60..LHD..HRF..GX |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-30010 |
FJ62,HJ6#..HRF..(GX,VX) |
2 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30010 |
FJ62,HJ6#..HRF..(GX,VX) 73 X 28 |
1 | ||
| 63277-14020 |
FJ62,HJ6#..HRF..(GX,VX) 48 X 28 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30010 |
FJ62,HJ6#..HRF..(GX,VX) 73 X 28 |
1 | ||
| 63277-14020 |
FJ62,HJ6#..HRF..(GX,VX) 48 X 28 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30010 |
FJ62,HJ6#..HRF..(GX,VX) 73 X 28 |
1 | ||
| 63277-14020 |
FJ62,HJ6#..HRF..(GX,VX) 48 X 28 |
1 | ||
| Common parts | ||||
| 63699-12040 | ||||
| 90159-60219 | ||||
| 90162-50004 | ||||
| 90179-06070 | ||||
| 90179-06175 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-14044 | ||||
| 90467-19122 | ||||
| 90480-01356 | ||||
| 90480-24014 | ||||
| 91621-40612 | ||||
| 93229-15008 | ||||
| 93229-15010 | ||||
| 93560-54010 | ||||
| 96160-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
