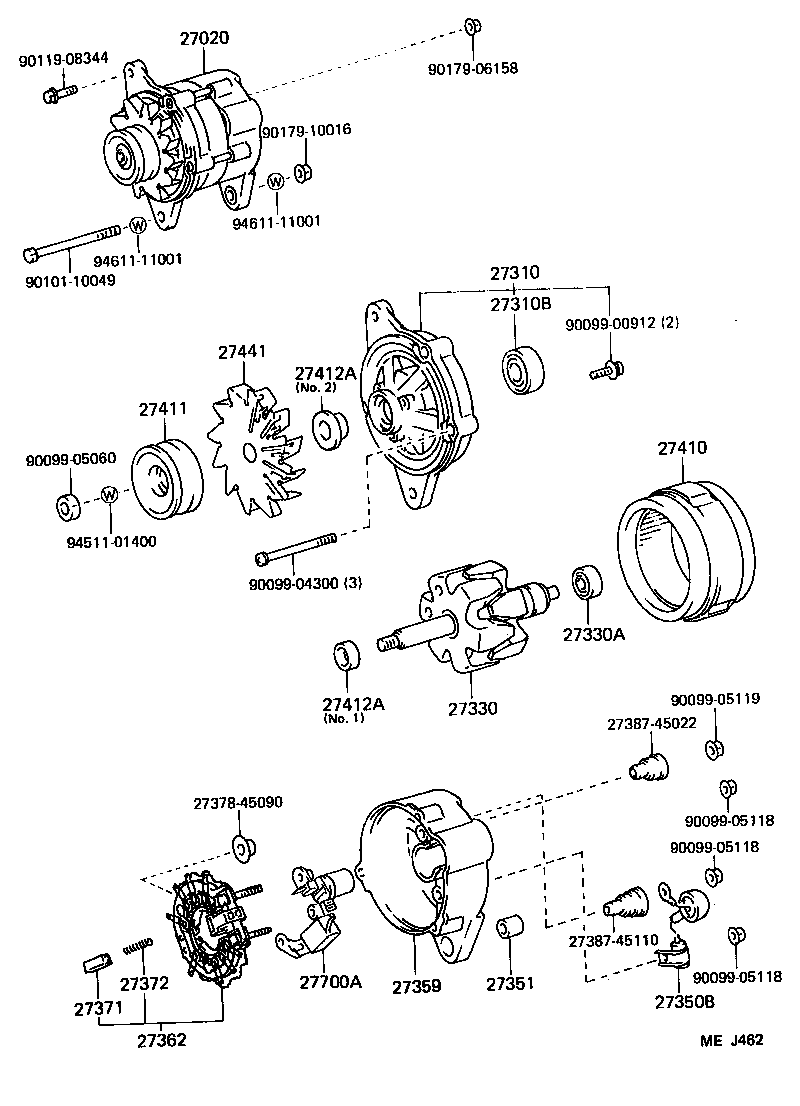

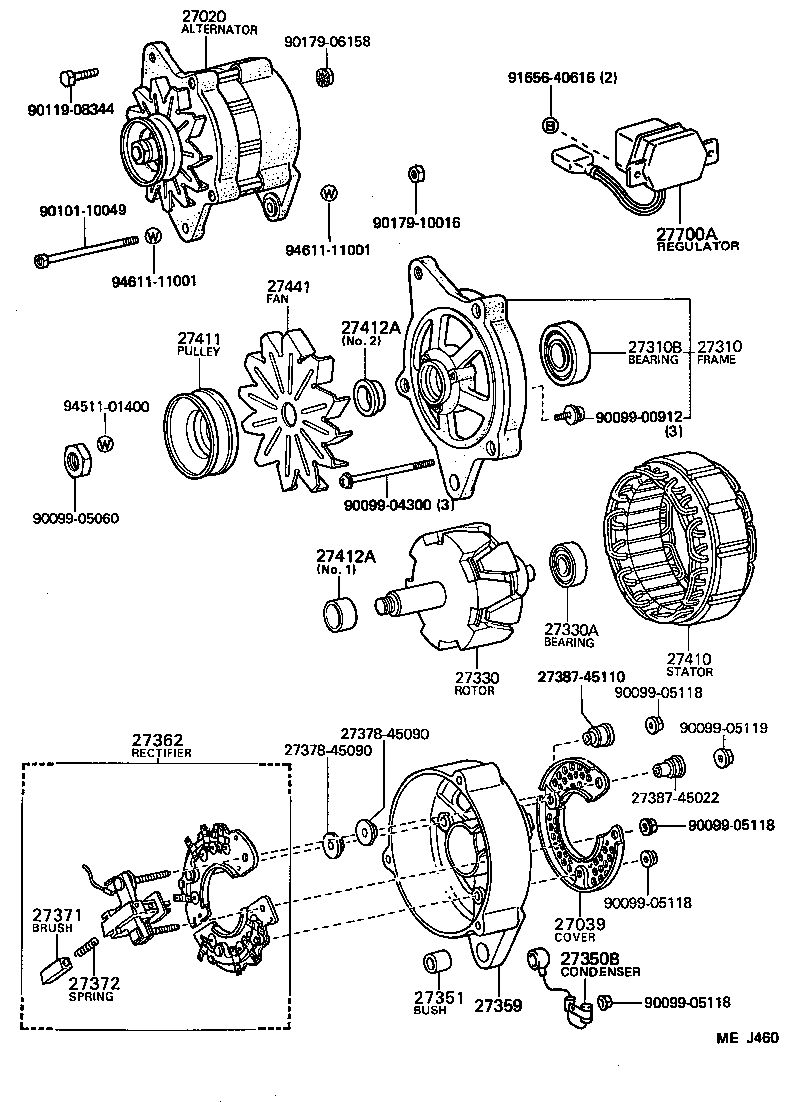

FJ62LG-MNZ (1987)
Toyota Land Cruiser
(9001-9604)3F..GCC,GEN,SA
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45110 | ||||
| 28387-34022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
(9001-9604)3F..GCC,GEN,SA
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-34022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
(9001-9604)3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||

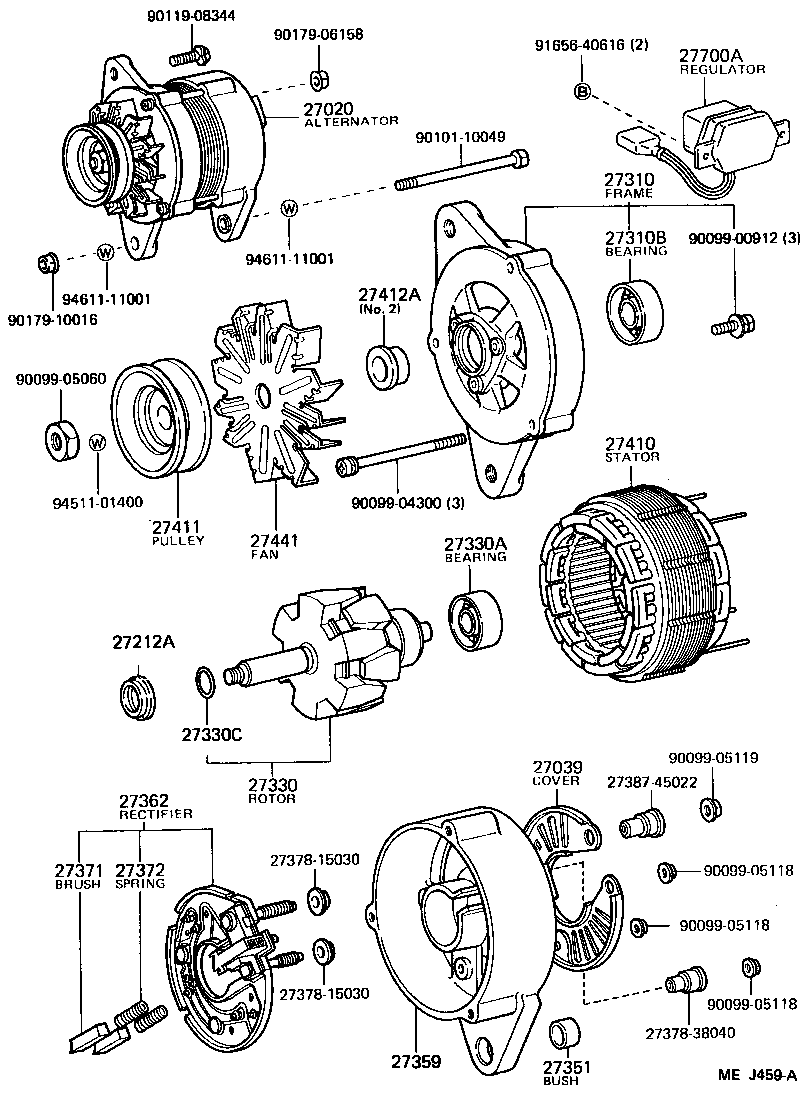

(8708- )3F
12V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61060 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27020-61180 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27310-26101 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ62 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F..FJ62 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27359-72040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27362-72080 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F..FJ62 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F..FJ62 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ62..GEN,ME |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..GEN,ME |
1 | ||
| 27441-34111 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 27700-63030 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(8708- )3F
12V 45A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61060 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27020-61180 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15010 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27310-26101 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ62 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F..FJ62..GX,VX;3F..FJ62..STD..(ARL,ME) |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F..FJ62 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27359-72040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27362-72080 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F..FJ62 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F..FJ62 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ62..GEN,ME |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..GEN,ME |
1 | ||
| 27441-34111 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 27700-63030 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(8708- )3F
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61060 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27020-61180 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27310-26101 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ62 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F..FJ62..GX,VX;3F..FJ62..STD..(ARL,ME) |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F..FJ62 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27359-72040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27362-72080 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F..FJ62 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F..FJ62 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ62..GEN,ME |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..GEN,ME |
1 | ||
| 27441-34111 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 27700-63030 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(8708- )3F
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61060 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27020-61180 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27310-26101 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ62 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27330-16030 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F..FJ62..GX,VX;3F..FJ62..STD..(ARL,ME) |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F..FJ62 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27359-72040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27362-72080 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F..FJ62 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F..FJ62 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27410-41080 |
3F..FJ62..(GX,VX)..(GEN,ME) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27411-60032 |
3F..FJ62..GEN,ME |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-15150 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.1 |
1 | ||
| 27412-31040 |
3F..FJ62..GX,VX;3F..FJ62..STD..ARL NO.2 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..GEN,ME |
1 | ||
| 27441-34111 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME |
1 | ||
| 27700-63030 |
3F..FJ62..(GX,VX)..(GEN,ME) 12V 65A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
