FJ62LG-MNCZV (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

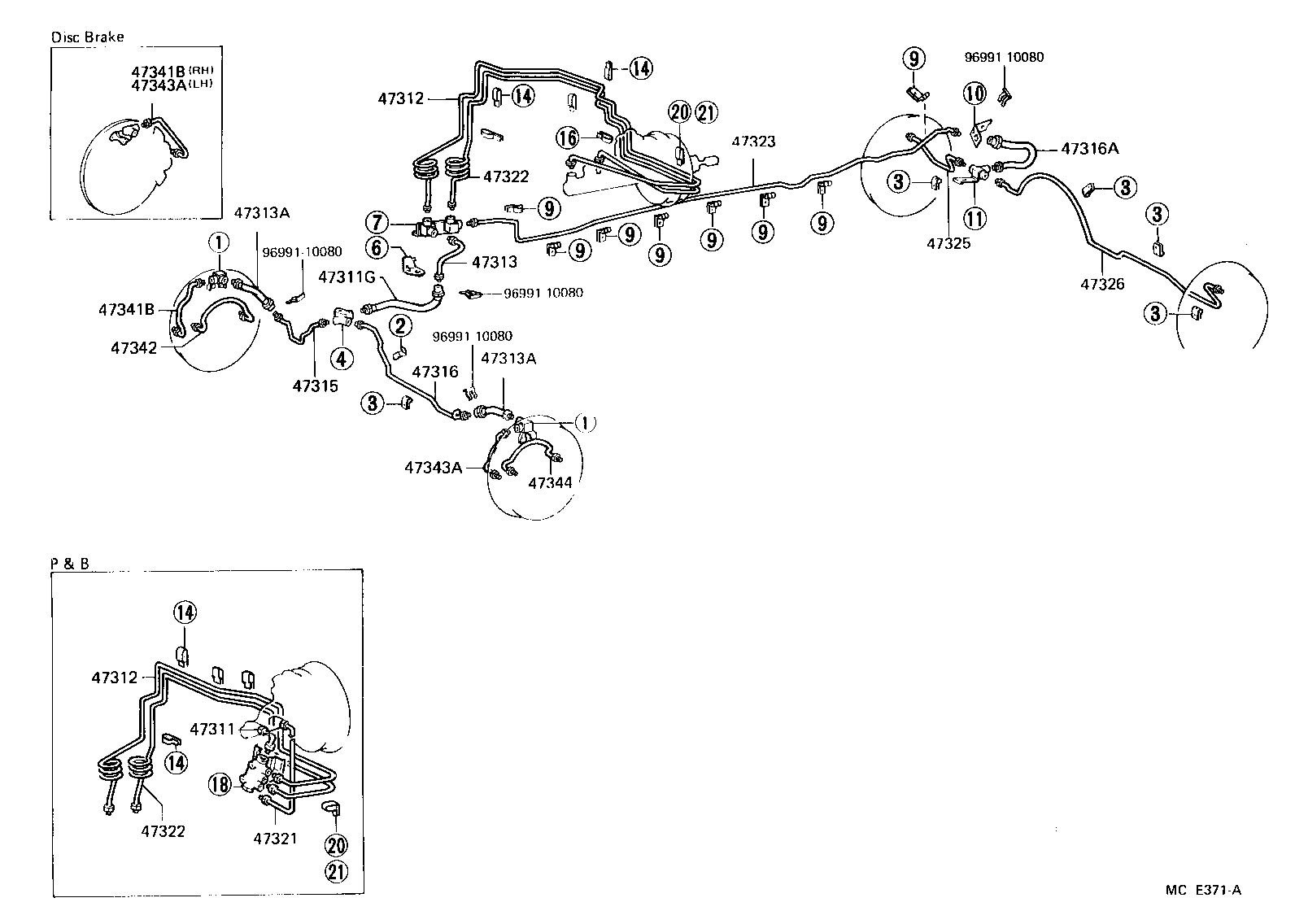

ILLUST NO. 1 OF 3(8708- )FJ62..LHD

Click highlighted areas on diagram

diagram 47311 47311G 47312 47312 47313 47313A 47313A 47315 47316 47316A 47321 47322 47322 47323 47325 47326 47341B 47341B 47342 47343A 47343A 47344 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-60450

BJ60,FJ62,HJ6#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-33005

FJ62,HJ6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60442

FJ62,HJ60..ME

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60442

FJ62,HJ60..ME

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60091

FJ62,HJ6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ60,FJ62,HJ6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ60,FJ62,HJ6#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-60340

FJ62,HJ6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60310

FJ62,HJ6#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

BJ60,FJ62,HJ6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-60120

BJ60,FJ62,HJ6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60282

FJ62,HJ60..ME

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60282

FJ62,HJ60..ME

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60031

BJ60,FJ62,HJ6#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60100

BJ60,FJ62,HJ6#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60110

BJ60,FJ62,HJ6#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ60,FJ62,HJ6#..ARL,ME

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ60,FJ62,HJ6#..ARL,ME

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60021

BJ60,FJ62,HJ6#..ARL,ME

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60021

BJ60,FJ62,HJ6#..ARL,ME

 1
Common parts
96991-10080

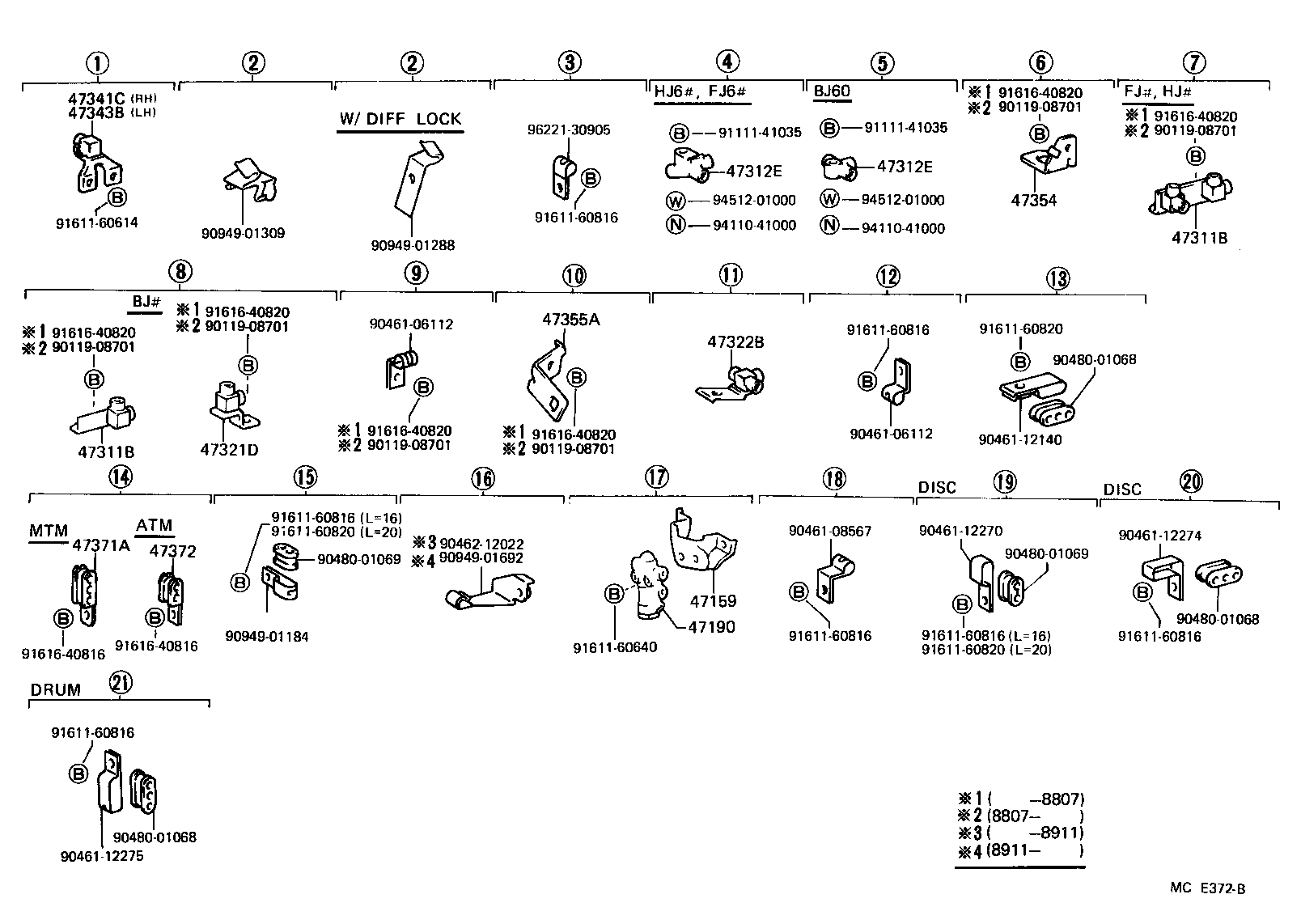

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 47159 47190 47311B 47311B 47312E 47312E 47321D 47322B 47341C 47343B 47354 47355A 47371A 47372 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9046106112 9046106112 9046108567 9046112140 9046112270 9046112274 9046112275 9046212022 9048001068 9048001068 9048001068 9048001069 9048001069 9094901184 9094901288 9094901309 9094901692 9111141035 9111141035 9161160614 9161160640 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161640816 9161640816 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9411041000 9411041000 9451201000 9451201000 9622130905
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-30150

BJ60,FJ62,HJ6#

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-60030

BJ60,FJ62,HJ6#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90414-10008

FJ62,HJ6#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90414-10008

FJ62,HJ6#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10042

FJ62,HJ6#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10042

FJ62,HJ6#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10106

BJ60,FJ62,HJ6#

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-60030

BJ60,FJ62,HJ6#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60030

BJ60,FJ62,HJ6#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

FJ62,HJ60..LHD..MTM

 4
Common parts
90119-08701
90461-06112
90461-08567
90461-12140
90461-12270
90461-12274
90461-12275
90462-12022
90480-01068
90480-01069
90949-01184
90949-01288
90949-01309
90949-01692
91111-41035
91611-60614
91611-60640
91611-60816
91611-60820
91616-40816
91616-40820
94110-41000
94512-01000
96221-30905

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 04477 31478D 44786C 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9113150840 9113150840 9161160814 9411040800 9411040800 9411040800 9411041000 9411540500 9414140800 9451100500 9451200800 9451200800 9451200800 9451200800 9451201000 9461210500 9538102020
Part # Description Qty Price
Common parts
90119-08703
91131-50840
91611-60814
94110-40800
94110-41000
94115-40500
94141-40800
94511-00500
94512-00800
94512-01000
94612-10500
95381-02020
