FJ62LG-MNC (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

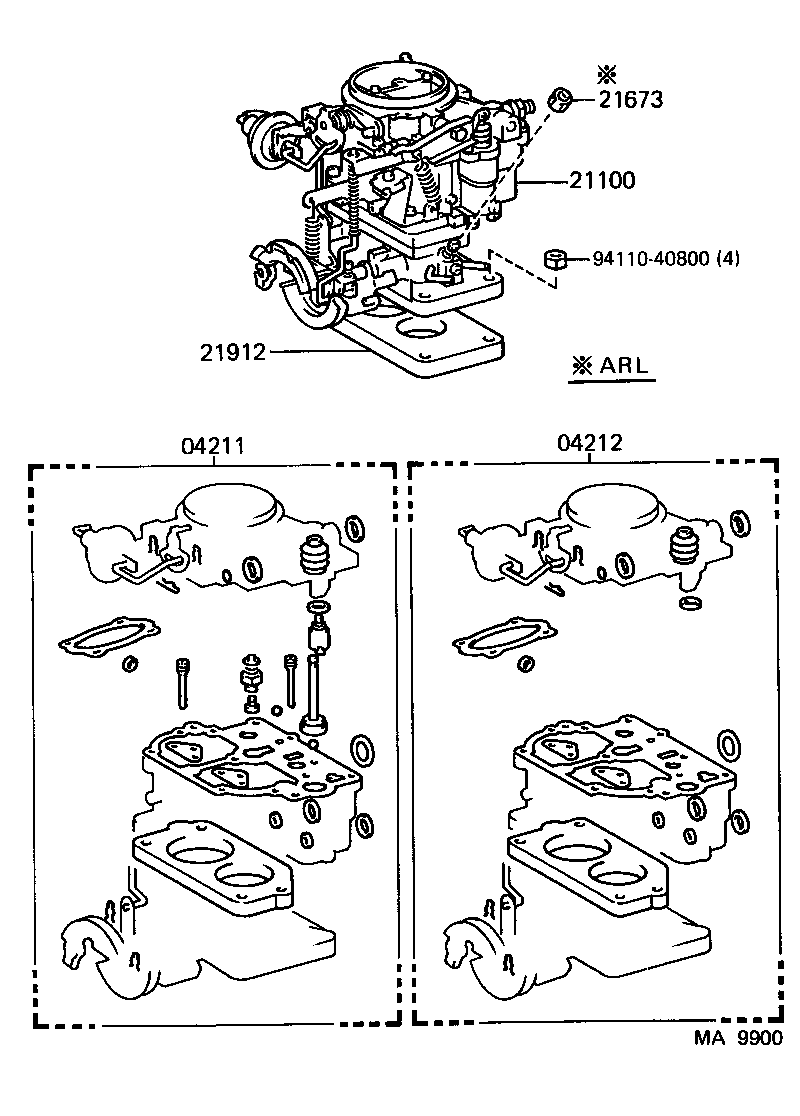

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
Common parts
94110-40800

(8708- )3F

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-61200

3F..FJ62..GEN

 1
04211-61250

3F..FJ62..GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-61030

3F..FJ62

 1
21100 - CARBURETOR ASSY
21100-61190

3F..FJ62..MTM..GEN

 1
21100-61270

3F..FJ62..GEN

W(OUTER BENT CONTROL)

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-61050

3F..FJ62

 1
Common parts
94110-40800
