FJ62LG-MN (1987)

Toyota Land Cruiser

Production Aug 1987 - Mar 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60081

BJ60,FJ62,HJ60..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14037

BJ60,FJ62,HJ6#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ60,FJ62,HJ6#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ60,FJ62,HJ6#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ60,FJ62,HJ6#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

BJ60,FJ62,HJ6#..MTM

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-40800

BJ60,FJ62,HJ6#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-36010

BJ60,FJ62,HJ6#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BJ60,FJ62,HJ6#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BJ60,FJ62,HJ6#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

BJ60,FJ62,HJ6#..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BJ60,FJ62,HJ6#..MTM

 1
Common parts
90468-16142
94110-41000
94512-01000

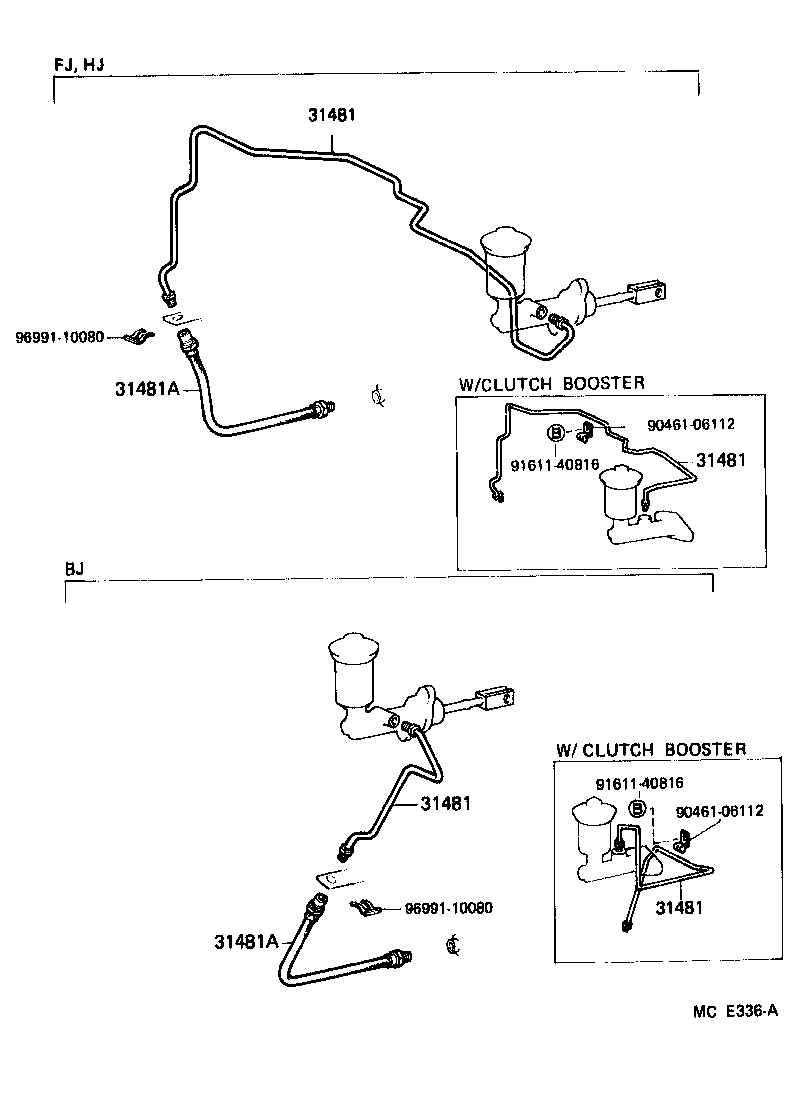

ILLUST NO. 2 OF 2(8708- )LHD..MTM

Click highlighted areas on diagram

diagram 31481 31481 31481 31481 31481A 31481A 9046106112 9046106112 9161140816 9161140816 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60301

HJ60..LHD;FJ62..LHD..MTM..(GX,STD)

 1
31481-60311

HJ60..LHD;FJ62..5F..GX..ME;FJ62..LHD..MTM..GEN

W(CLUTCH BOOSTER)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60301

HJ60..LHD;FJ62..LHD..MTM..(GX,STD)

 1
31481-60311

HJ60..LHD;FJ62..5F..GX..ME;FJ62..LHD..MTM..GEN

W(CLUTCH BOOSTER)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60301

HJ60..LHD;FJ62..LHD..MTM..(GX,STD)

 1
31481-60311

HJ60..LHD;FJ62..5F..GX..ME;FJ62..LHD..MTM..GEN

W(CLUTCH BOOSTER)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60301

HJ60..LHD;FJ62..LHD..MTM..(GX,STD)

 1
31481-60311

HJ60..LHD;FJ62..5F..GX..ME;FJ62..LHD..MTM..GEN

W(CLUTCH BOOSTER)

 1
31481A - HOSE, CLUTCH, NO.1
96812-50320

FJ62,HJ6#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50320

FJ62,HJ6#..MTM

 1
Common parts
90461-06112
91611-40816
96991-10080
