FJ62LG-MECZV (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

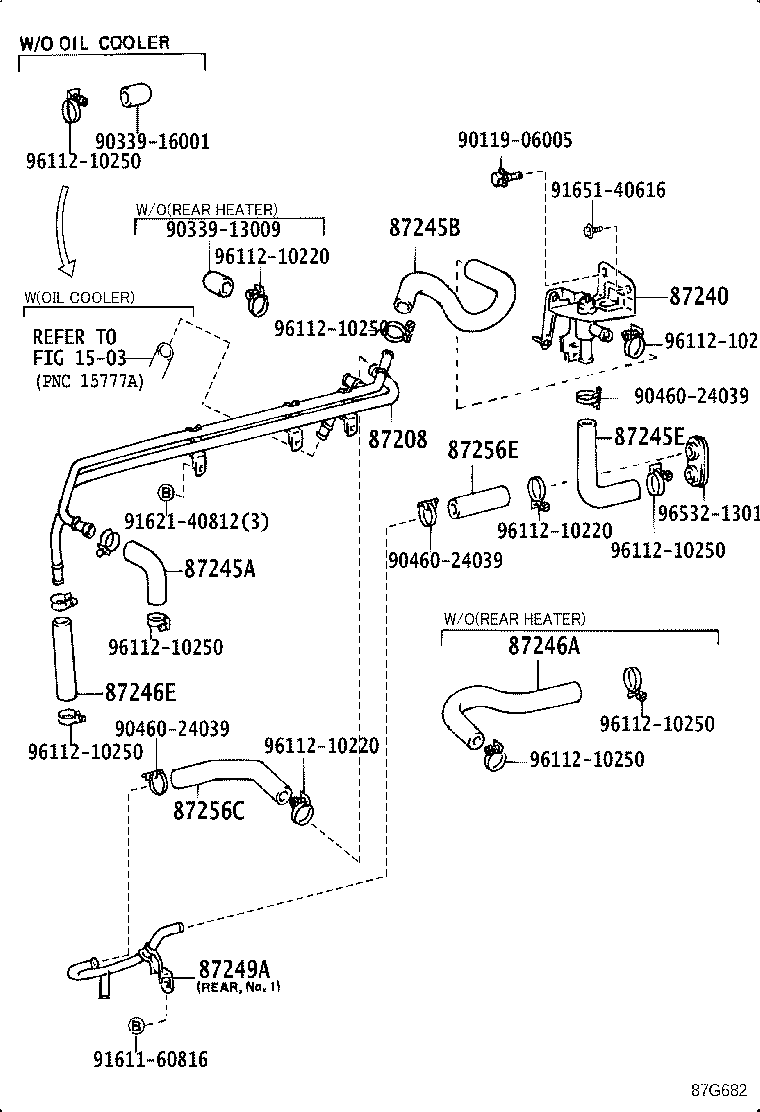

(8708- )FJ62
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-90K06 |
FJ62 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90A00 |
HJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90K53 |
FJ62 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90A27 |
FJ62 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90A00 |
HJ60..GX,VX;BJ60,FJ62,HJ61;HJ60..RHD..STD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90A28 |
FJ62 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90K36 |
FJ62 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-13009 | ||||
| 90339-16001 | ||||
| 90460-24039 | ||||
| 91611-60816 | ||||
| 91621-40812 | ||||
| 91651-40616 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
| 96532-13017 | ||||
| Linked diagrams | ||||
| 1503 | ||||
(8708- )
Click highlighted areas on diagram
REAR WATER PIPING(BENCH SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-90A03 | ||||
| 87124-90A07 | ||||
| 90460-22073 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
| 96112-10220 | ||||
(8708- )
Click highlighted areas on diagram
REAR WATER PIPING(SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-90A03 | ||||
| 87124-90A07 | ||||
| 90460-22073 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
| 96112-10220 | ||||
